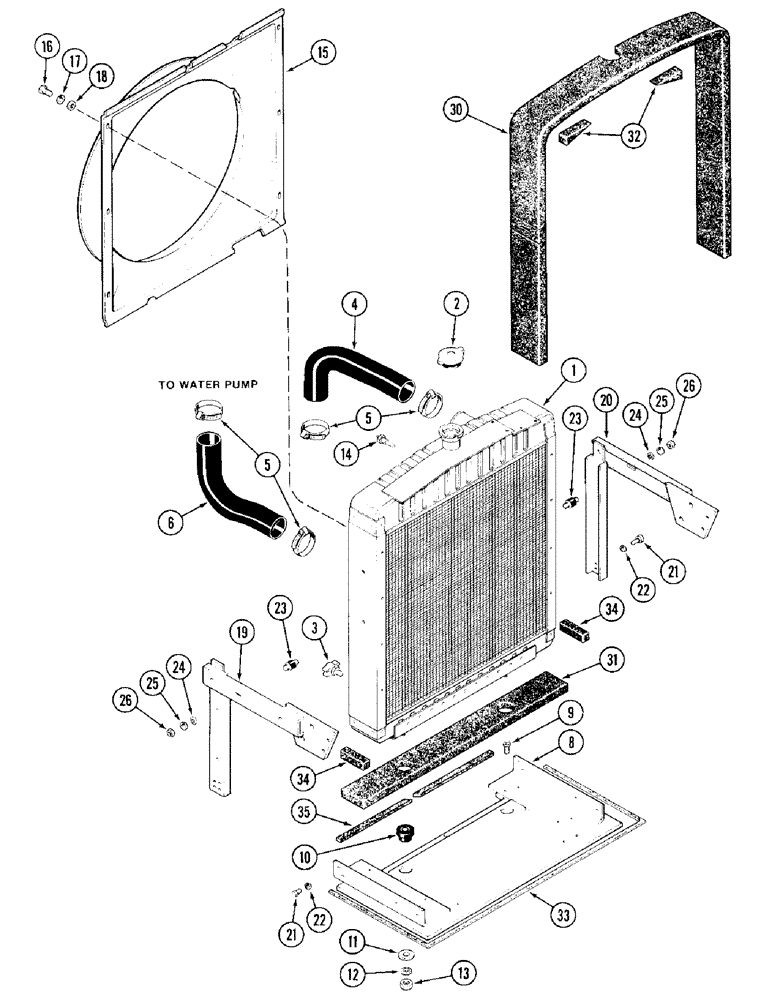

Запчасти Case IH 2394 (2-02) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1

A184365

RADIATOR

ASSEMBLY - engine (Replaces A166469)

1шт.

2

A166776

CAP

- radiator filler, 10 PSI

1шт.

2a

A185731

CAP

W/Rubber Seal, not shown

1шт.

3

217-103

COCK, DRAIN

VALVE - drain, 1/4 inch PT

1шт.

4

A141495

RADIATOR HOSE,2.50" ID, SAE 20R4

Inlet 2.50" ID, SAE 20R4

1шт.

5

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

4шт.

6

A141496

RADIATOR HOSE,2.62" ID, SAE 20R4

Outlet 2.62" ID, SAE 20R4

1шт.

8

A147135

SUPPORT

- hood and radiator

1шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

10

L46821

SHOCK ABSORBER

BUSHING - rubber mount

2шт.

11

NLS

NO LONGER SERVICED

- flat, radiator support

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

14

A145513

SENSOR

- level, coolant

1шт.

15

A147138

GUARD

SHROUD - fan

1шт.

16

A161360

BOLT

- hex washer head, 1/4 NC x 1/2 inch (Order 1 each 413-410, 495-21031 and 492-11025)

6шт.

16

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (Service only)

6шт.

17

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch (Service only)

6шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Service only) 1/4"

6шт.

19

A169187

BRACKET

SUPPORT - radiator, right side

1шт.

20

A169188

BRACKET

SUPPORT - radiator, left side

1шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

A145743

MOUNTING PARTS

MOUNT - radiator upper, rubber

2шт.

24

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

30

A177517

SEAL

-, Serial Range: radiator-hood

1шт.

31

A162553

SEAL - radiator lower (Order A149962 and, Serial Range: cut-length)

1шт.

32

A149300

SEAL

- upper radiator seal wedge

2шт.

33

A162382

SEAL

SEAL - lower grille (Order A162397 and, Serial Range: cut-length)

1шт.

34

A164437

SEAL - corner, radiator lower, 3-1/2 inch, Order A149962 and, Serial Range: cut-length

2шт.

35

A167140

SEAL

- fan shroud

1шт.
