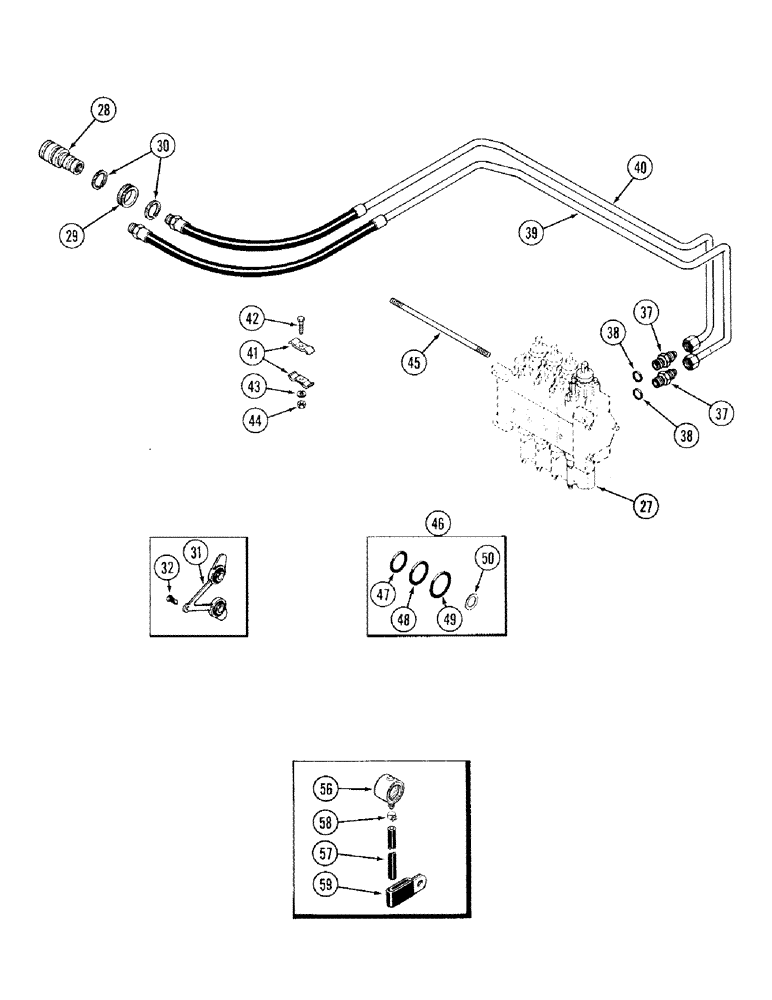

Запчасти Case IH 2394 (8-046) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, FOURTH CIRCUIT WITHOUT LOAD CHECK (CONTINUED) (08) - HYDRAULICS

A180263

ATTACHMENT - remote hydraulics, No. 4 circuit (Machinery Item) (Order A181930)(See Figure 8-049), Includes: Ref. 27 - 59 and 1 - 26 on Figure 8-044

1шт.

A67589

ATTACHMENT - remote hydraulics, No. 4 circuit (Machinery Item) (Order A181930)(See Figure 8-049), Includes: Ref. 27 - 59 and 1 - 26 on Figure 8-044

1шт.

27

REF

INSTRUCTION

BODY - remote valve (See Figure 8-076)

1шт.

28

REF

INSTRUCTION

COUPLING - remote hydraulics, female (See Figure 8-104)

2шт.

29

A139805

RETAINER

- coupling

2шт.

30

104-11150

SNAP RING,#150, 1.408", Ext

RING - retaining

4шт.

31

A145468

PLUG

- remote coupling dust (Used with attachment A67589)

1шт.

32

A162364

FASTENER

- dust plug (Used with attachment A67589)

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

A145907

HOSE

- No. 7 remote

1шт.

40

A145908

HOSE

- No. 8 remote

1шт.

41

A63323

CLAMP

- tube

2шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

1шт.

45

A147508

STUD

- 3/8 NC x 11-3/4 inch

3шт.

46

A47576

KIT

- seals and shims (Order components), Includes: Ref. 47 - 50

1шт.

47

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

48

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

49

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

5шт.

50

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

56

A177479

CAP

- remote coupling dust (Used with attachment A180263)

2шт.

57

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (In A180263 attachment) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

58

A180159

CLAMP,10.29mm - 12.32mm

- hose (Used with attachment A180263)

2шт.

59

A180154

CLAMP

- hose (Used with attachment A180263)

1шт.
