Запчасти Case IH 2394 (8-038) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, THIRD CIRCUIT WITHOUT LOAD CHECK (CONTINUED) (08) - HYDRAULICS

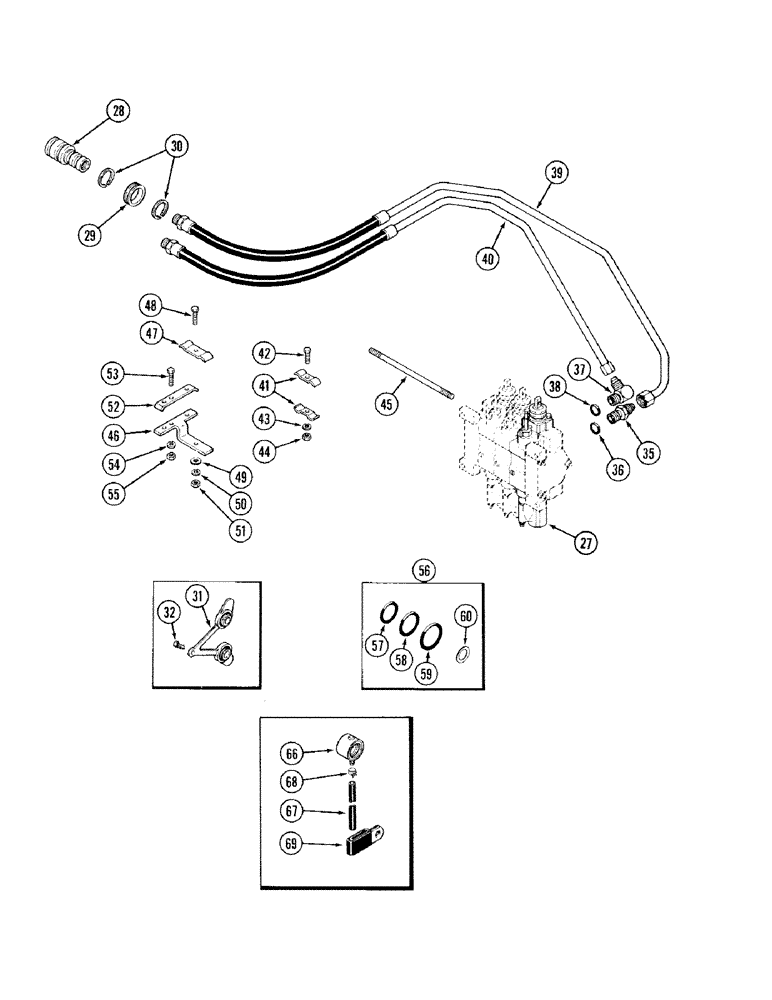

Схема запчастей Case IH 2394 - (8-038) - REMOTE HYDRAULICS ADD-ON ATTACHMENT, THIRD CIRCUIT WITHOUT LOAD CHECK (CONTINUED) (08) - HYDRAULICS
51
31
59
55
69
27
57
32
66
52
35
28
30
41
44
53
48
46
68
54
58
39
37
29
47
60
50
42
40
67
49
38
36
45
43
56

Артикул

Название

Примечание

Количество

A180262

ATTACHMENT - remote hydraulics, No. 3 circuit (Machinery Item) (Order A181930)(See Figure 8-048), Includes: Ref. 27 - 69 and 1 - 26 on Figure 8-038

1шт.

A67588

ATTACHMENT - remote hydraulics, No. 3 circuit (Machinery Item) (Order A181930)(See Figure 8-048), Includes: Ref. 27 - 69 and 1 - 26 on Figure 8-036

1шт.

27

REF

INSTRUCTION

BODY - remote valve (See Figure 8-076)

1шт.

28

REF

INSTRUCTION

COUPLING - remote hydraulics, female (See Figure 8-104)

2шт.

29

A139805

RETAINER

- coupling

2шт.

30

104-11150

SNAP RING,#150, 1.408", Ext

RING - retaining

4шт.

31

A145468

PLUG

- remote coupling dust (Used wth attachment A67588)

1шт.

32

A162364

FASTENER

- dust plug (Used with attachment A67588)

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 37

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

A145905

HOSE

- No. 5 remote

1шт.

40

A180046

HOSE

- No.6 remote (Used with attachment A180262)

1шт.

40

A145906

HOSE

- No.6 remote (Used with attachment A67588) (Order A180046)

1шт.

41

A63323

CLAMP

- tube

2шт.

42

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

1шт.

45

A147507

STUD

- 3/8 NC x 9-7/8 inch

3шт.

46

A147771

BRACKET

- support, tube clamp

1шт.

47

A17542

CLAMP

- tube

1шт.

48

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

49

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

50

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

52

A147772

CLAMP

- tube

1шт.

54

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

55

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

56

A47576

KIT

- seals and shims (Order components), Includes: Ref. 57 - 60

1шт.

57

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

58

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

59

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

5шт.

60

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

66

A177479

CAP

- remote coupling dust (Used with attachment A180262)

2шт.

67

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain (Used with A180262 attachment) 7.90 mm ID x 914.40 mm, SAE J200

2шт.

68

A180159

CLAMP,10.29mm - 12.32mm

- hose (Used with attachment A180262)

2шт.

69

A180154

CLAMP

- hose (Used with attachment A180262)

1шт.

53

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

Выбрано товаров: 39
