Запчасти Case IH 2394 (8-032) - REMOTE HYDRAULIC CONTROLS, THREE CIRCUIT REMOTE (08) - HYDRAULICS

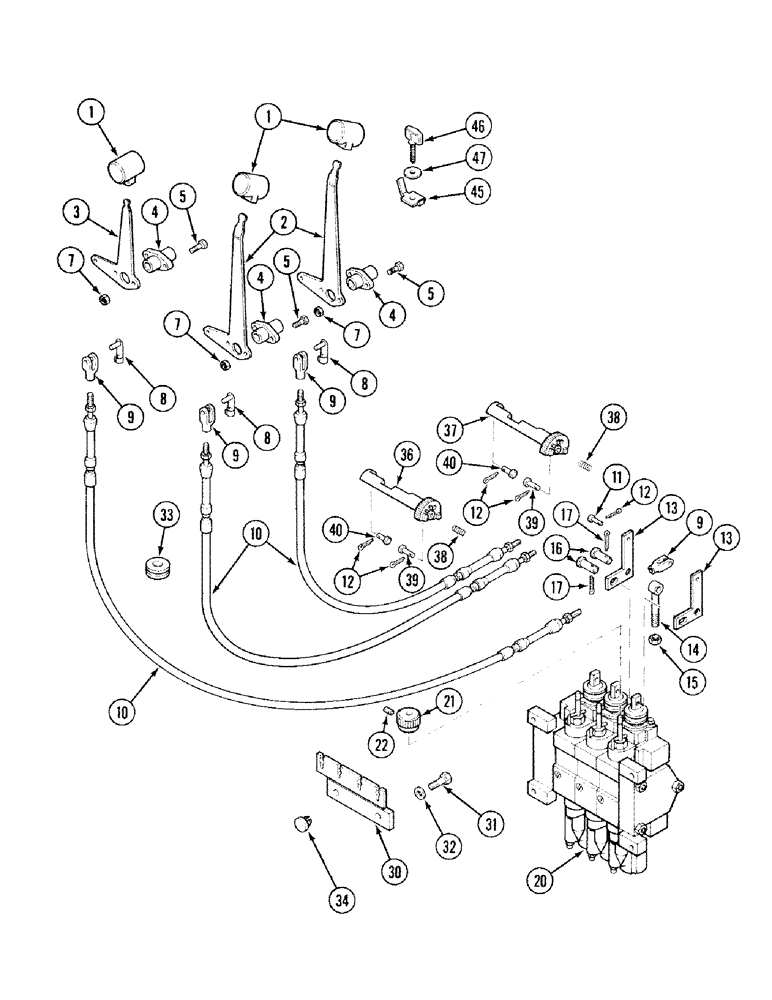

Схема запчастей Case IH 2394 - (8-032) - REMOTE HYDRAULIC CONTROLS, THREE CIRCUIT REMOTE (08) - HYDRAULICS
36
2
8
11
17
46
4
12
9
4
39
13
12
20
9
7
45
15
34
8
14
33
8
13
38
5
40
7
5
7
17
21
31
12
38
39
4
16
10
47
1
22
3
37
10
40
1
5
30
9
9
32

Артикул

Название

Примечание

Количество

1

A177438

KNOB

- hand lever (Black)

3шт.

2

A181781

LEVER

- remote (1st and 2nd circuit)

2шт.

3

A141392

LEVER

- remote (3rd circuit)

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - control lever

3шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

7

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

6шт.

8

A149683

PIN

- clevis, spring, 3/16 inch

3шт.

9

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10

6шт.

10

A177635

CABLE

- control, Serial Range: lever-valve

3шт.

11

A67313

PIN

- clevis

3шт.

12

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

9шт.

13

A145598

LEVER

- remote valve bellcrank

6шт.

14

A145597

EYE

- bellcrank pivot

3шт.

15

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

3шт.

16

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

6шт.

17

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

20

REF

INSTRUCTION

VALVE - remote (See Figure 8-068 or 8-070)

1шт.

21

A160814

KNOB

- flow control

3шт.

22

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, hex socket, No. 10 NF x 5/8 inch

3шт.

30

A145021

PLATE

- mounting, remote cable

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

32

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

2шт.

33

A141389

GROMMET

- cable

3шт.

34

A67295

PLUG

- 9/16 inch diameter head

3шт.

34

A162961

PLUG

- 3/4 inch diameter head

3шт.

36

A162860

QUADRANT

- remote lockout, outer

1шт.

37

A162861

QUADRANT

- remote lockout, inner

2шт.

38

A164976

SPRING

- remote lockout

3шт.

39

A67313

PIN

- clevis

3шт.

40

A167543

PIN,4.72mm OD x 19.99mm L

- clevis

3шт.

A67602

KIT - lockout stop (Order components), Includes: Ref. 45 - 47

1шт.

45

A176175

CLAMP

- lever stop

1шт.

46

A162958

BUTTON

KNOB - stop

1шт.

47

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

Выбрано товаров: 34
