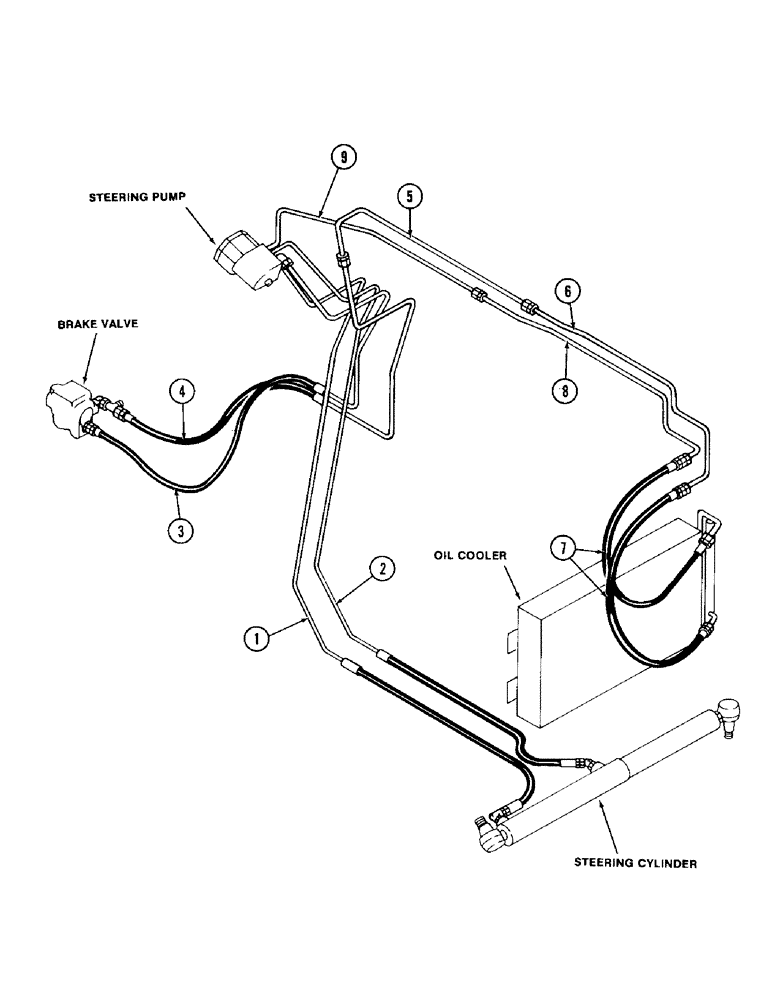

Запчасти Case IH 2394 (1-20) - PICTORIAL INDEX (00) - PICTORIAL INDEX

1

Steering Cylinder Hose And Tube Page 5-7

1шт.

Assembly (Right)

1шт.

2

Steering Cylinder Hose And Tube Page 5-7

1шт.

Assembly (Left)

1шт.

3

Brake Valve To Steering Pump Hose Page 5-7

1шт.

And Tube Assembly

1шт.

4

Oil Cooler Return Hose And Tube Page 5-9

1шт.

Assembly

1шт.

5

Oil Cooler Outlet Tube (Center) Page 5-9

1шт.

6

Oil Cooler Outlet Tube (Front) Page 5-9

1шт.

7

Oil Cooler Inlet And Outlet Hoses Page 5-9

1шт.

8

Oil Cooler Inlet Tube (Front) Page 5-9

1шт.

9

Oil Cooler Inlet Tube (Rear) Page 5-9

1шт.
