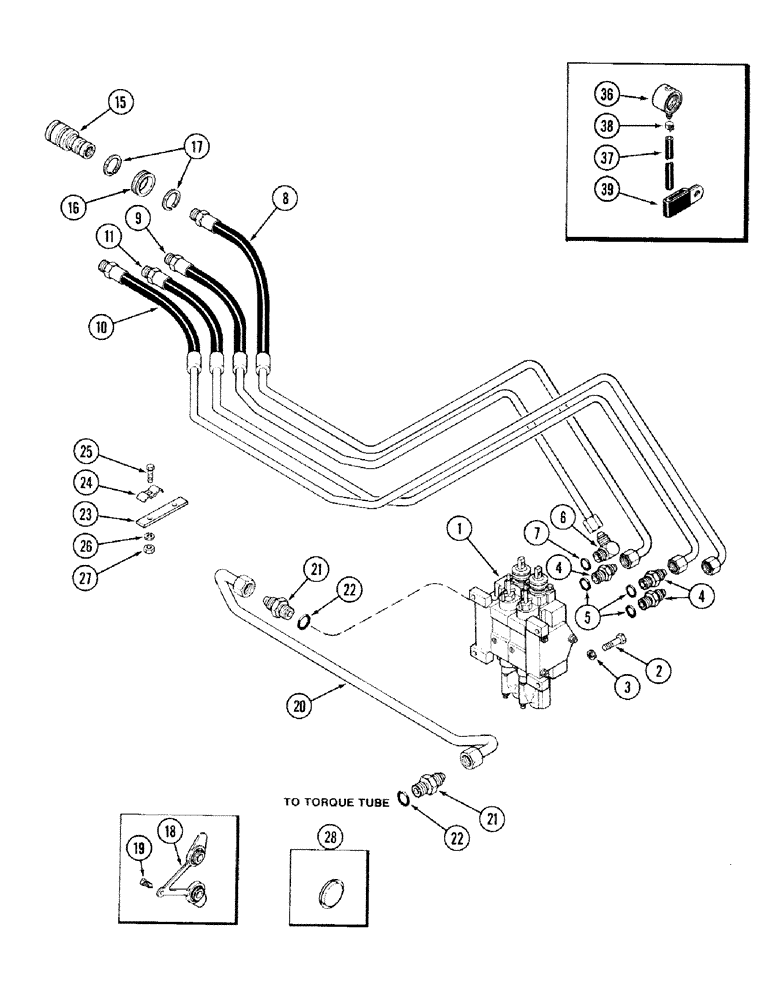

Запчасти Case IH 2394 (8-028) - REMOTE TUBES AND COUPLINGS, TWO CIRCUIT REMOTE, PRIOR TO TRANSMISSION SERIAL NO. 16283224 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - remote (See Figure 8-058 or 8-060)

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

3

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 5

3шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

A145901

HOSE

- No. 1 remote (Order A181331 and A181348)

1шт.

9

A145902

HOSE

- No. 2 remote

1шт.

10

A145909

HOSE

- No.3 remote (Order A181334 and A181348)

1шт.

11

A145904

HOSE

- No.4 remote (Order A181335 and A181348)

1шт.

15

REF

INSTRUCTION

COUPLING - remote hydraulic, female (See Figure 8-105)

4шт.

16

A139805

RETAINER

- coupling

4шт.

17

104-11150

SNAP RING,#150, 1.408", Ext

RING - retaining

8шт.

18

A145468

PLUG

- remote coupling dust

2шт.

19

A162364

FASTENER

- dust plug

2шт.

20

A165383

TUBE ASSY.

TUBE -, Serial Range: remote-sump

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 22

2шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

A141174

SUPPORT

- tube clamp

1шт.

24

A63323

CLAMP

- tube

2шт.

25

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

26

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

353-590

PLUG,1 7/8"

- button, 1-7/8 inch

4шт.

36

A177479

CAP

- dust, coupling

4шт.

37

A180178

HOSE,7.90 mm ID x 914.40 mm, SAE J200

- drain 7.90 mm ID x 914.40 mm, SAE J200

4шт.

38

A180159

CLAMP,10.29mm - 12.32mm

- hose

4шт.

39

A180154

CLAMP

- hose

1шт.
