Запчасти Case IH 2394 (8-024) - CHARGING PUMP (08) - HYDRAULICS

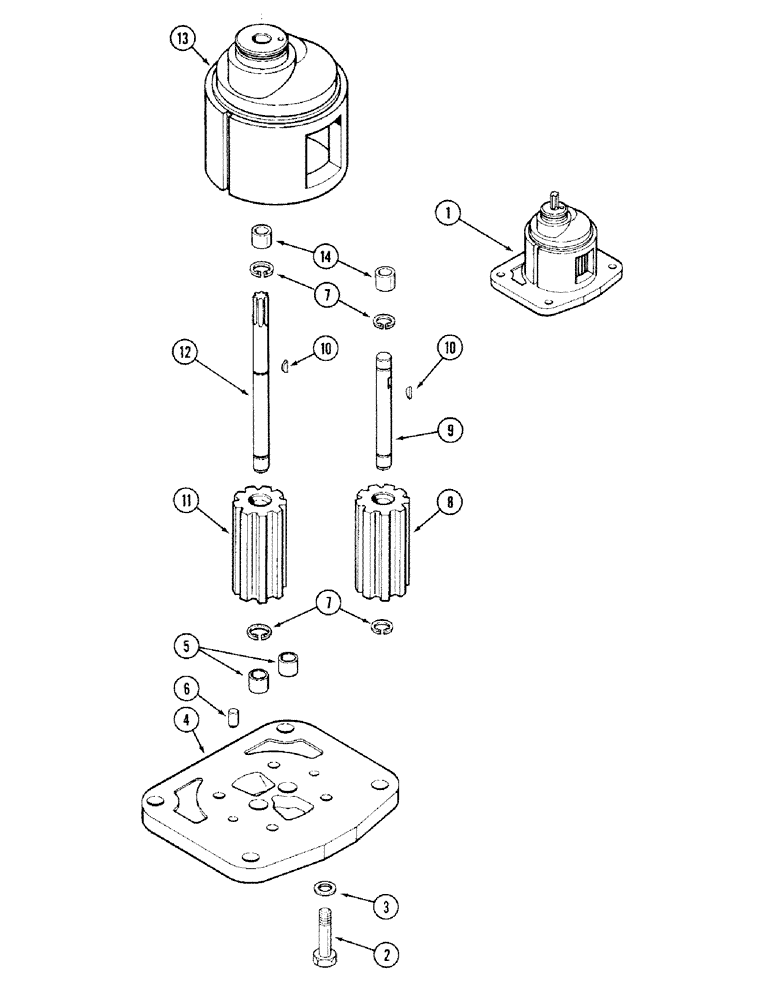

Схема запчастей Case IH 2394 - (8-024) - CHARGING PUMP (08) - HYDRAULICS
12
11
4
6
7
5
1
14
10
8
3
9
13
2
10
7

Артикул

Название

Примечание

Количество

1

A141298

PUMP

ASSEMBLY - charging, hydraulic oil, Includes: Ref. 2 - 14

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

A63335

WASHER

- seal, Serial Range: cover-body

4шт.

4

A141296

COVER

ASSEMBLY - pump, Includes: Ref. 5

1шт.

5

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- pump cover

2шт.

6

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, locating

2шт.

7

603540C1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

4шт.

8

A64096

GEAR

- driven

1шт.

9

A64097

SHAFT

- driven gear

1шт.

10

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

2шт.

11

A64096

GEAR

- drive

1шт.

12

A64099

SHAFT

- drive gear

1шт.

13

A64093

HOUSING

BODY ASSEMBLY - pump, Includes: Ref. 14

1шт.

14

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- pump body

2шт.

Выбрано товаров: 14
