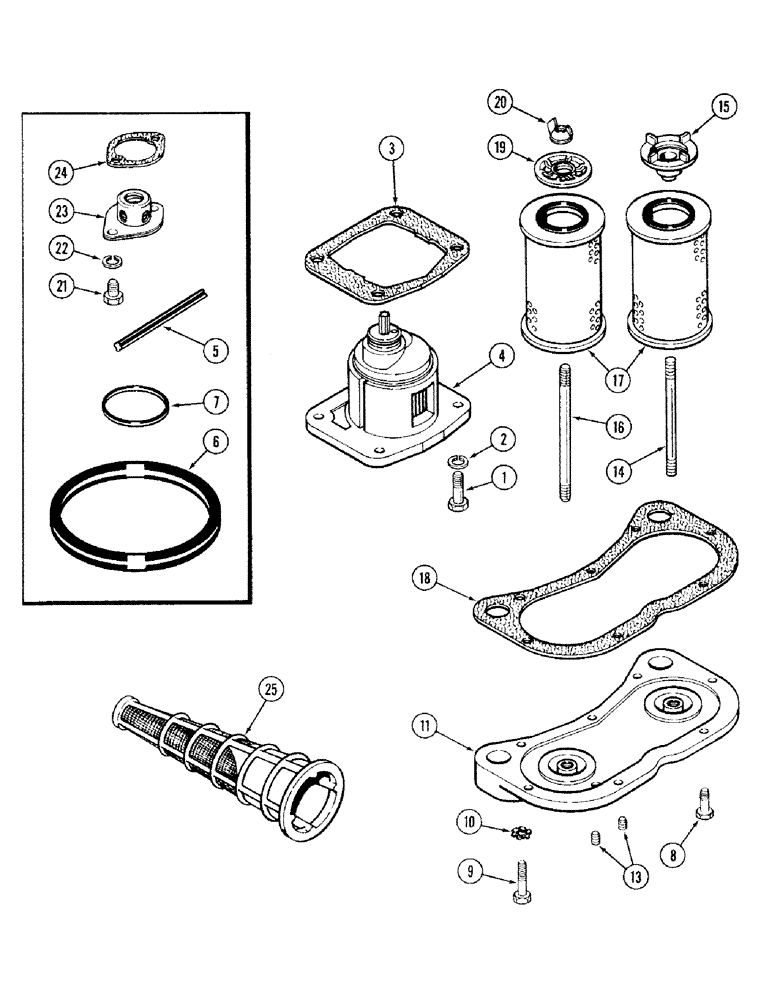

Запчасти Case IH 2394 (8-022) - HYDRAULICS, CHARGING PUMP, OIL FILTER AND INLET FILTER (08) - HYDRAULICS

1

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

1981256C1

GASKET

- pump to torque tube (Replaces A141326)

1шт.

4

REF

INSTRUCTION

PUMP - charging, hydraulic oil (See Figure 8-24)

1шт.

5

A63336

OIL SEAL

- pump to torque tube

2шт.

6

A63337

OIL SEAL

- pump to torque tube

1шт.

7

238-5130

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

- 1 5/8 x 1 13/16 inch

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

9

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

10

93-11039

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8 inch internal - external shakeproof

7шт.

11

A141288

MANIFOLD

- oil filter

1шт.

13

221-841

PLUG

- square head, 1/4 inch PT

2шт.

14

A147924

STUD

- filter element

1шт.

15

A164424

VALVE

- by-pass

1шт.

16

A63342

STUD

- filter element

1шт.

A176593

HYDRAULIC OIL FILTER

KIT - filter element, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter

2шт.

18

1981257C1

MANIFOLD GASKET

- manifold (Replaces A141325)

1шт.

19

A149292

WASHER

- filter element

1шт.

20

129-400

WING NUT,1/2"-13

NUT - wing, 1/2 inch

1шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

A63343

REGULATOR

- pressure, oil filter

1шт.

24

A147062

GASKET

- regulator housing

1шт.

25

A139052

FILTER

- inlet

1шт.
