Запчасти Case IH 2394 (8-012) - GEAR AND PISTON PUMP (08) - HYDRAULICS

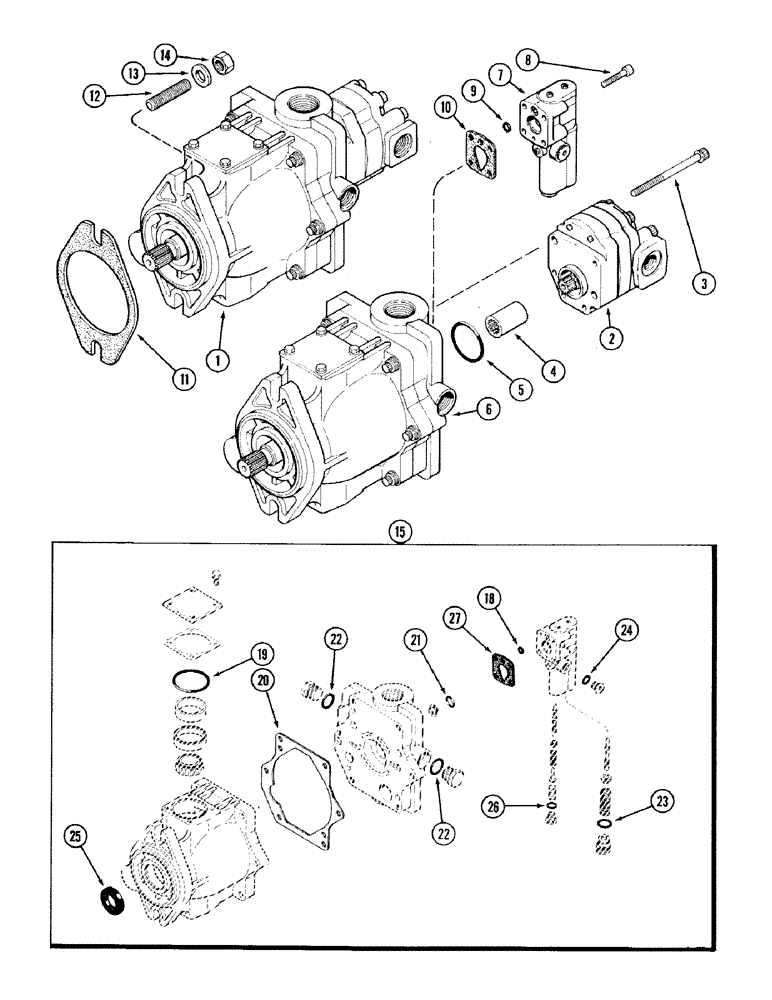

Схема запчастей Case IH 2394 - (8-012) - GEAR AND PISTON PUMP (08) - HYDRAULICS
21
13
24
14
23
12
6
5
1
4
26
22
2
10
7
27
25
20
19
8
22
11
9
18
15
3

Артикул

Название

Примечание

Количество

1

1346427C1

REMAN-HYD PUMP

PUMP ASSEMBLY - hydraulic (Remanufactured) (North America only), Includes: Ref. 2 - 10

1шт.

1

1346428C1

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

1

A166505

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic (New), Includes: Ref. 2 - 10

1шт.

2

REF

INSTRUCTION

PUMP ASSEMBLY - gear (See Figure 8-18)

1шт.

3

A47412

SCREW,M8 x 100mm

- metric, gear pump to piston pump

2шт.

4

A47312

COUPLING, BREAK AWAY

COUPLING - drive, gear pump to piston pump

1шт.

5

F98069

O-RING

- sealing

1шт.

6

REF

INSTRUCTION

PUMP ASSEMBLY - piston (See Page 8-14)

1шт.

7

REF

INSTRUCTION

COMPENSATOR ASSEMBLY - pump (See Figure 8-20)

1шт.

8

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, Hex Soc Hd, #10-24 x 1 1/4"

4шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

10

A49436

GASKET

- compensator mounting

1шт.

11

1342787C1

GASKET

- pump mounting (Replaces A141828)

1шт.

12

A160002

STUD

- mounting, pump

2шт.

13

A75865

WASHER

- hardened

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

A47567

KIT

- pump repair (Order components), Includes: Ref. 18 - 27

1шт.

18

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

19

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

20

A47280

GASKET,0.53mm Thk

- housing

1шт.

21

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

-137, 90 Duro, 2.05" ID x .103" Thk

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

23

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

25

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

- oil (Not used on this pump

1шт.

26

A49435

O-RING

- sening plug

1шт.

27

A49436

GASKET

- compensator mounting

1шт.

Выбрано товаров: 27
