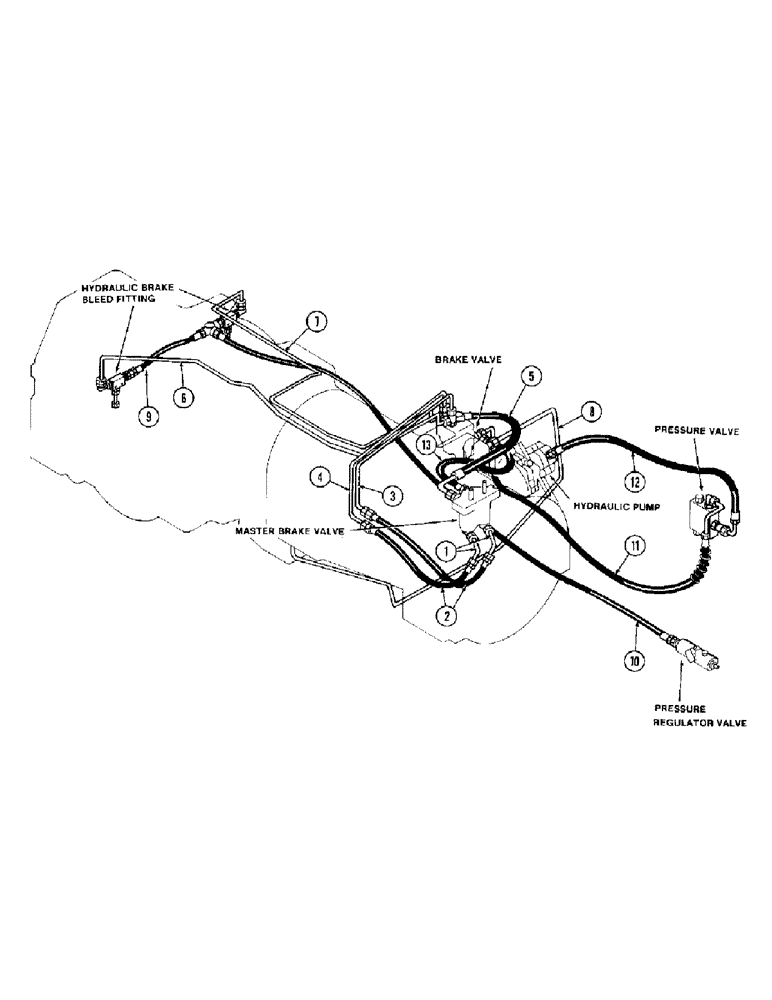

Запчасти Case IH 2394 (1-18) - PICTORIAL INDEX, BRAKE HYDRAULICS, WITH ACCUMULATOR SYSTEM IF EQUIPPED (00) - PICTORIAL INDEX
4
7
1
9
12
10
13
3
8
8
2
11
5
№
Артикул
Название
Примечание
Количество
1
Master Brake Valve Tube (Front) Page 7-5
1шт.
2
Master Brake Valve Hose (Front) Page 7-5
1шт.
3
Master Brake Valve Right Tube Page 7-5
1шт.
(Front)
1шт.
4
Master Brake Valve Left Tube Page 7-5
1шт.
(Front)
1шт.
5
Master Brake Valve To Brake Valve Page 7-5
1шт.
6
Brake Tube (Right Rear) Page 7-5
1шт.
7
Brake Tube (Left Rear) Page 7-5
1шт.
8
Brake Valve To Sump Tube Page 5-9
1шт.
9
Right To Left Brake Fitting Hose Page 7-15
1шт.
10
Regulator Valve To Brake Hose Page 7-15
1шт.
11
Pressure Valve To Brake Valve Hose Page 7-15
1шт.
12
Hydraulic Pump To Pressure Valve Page 7-15
1шт.
Hose
1шт.
13
Master Brake Valve To Brake Valve Page 7-5
1шт.
Hose
1шт.
Выбрано товаров: 17
