Запчасти Case IH 2394 (8-004) - HYDRAULIC PUMP AND LINES, WITH HITCH, PRIOR TO TRANSMISSION SERIAL NO. 16283224 (08) - HYDRAULICS

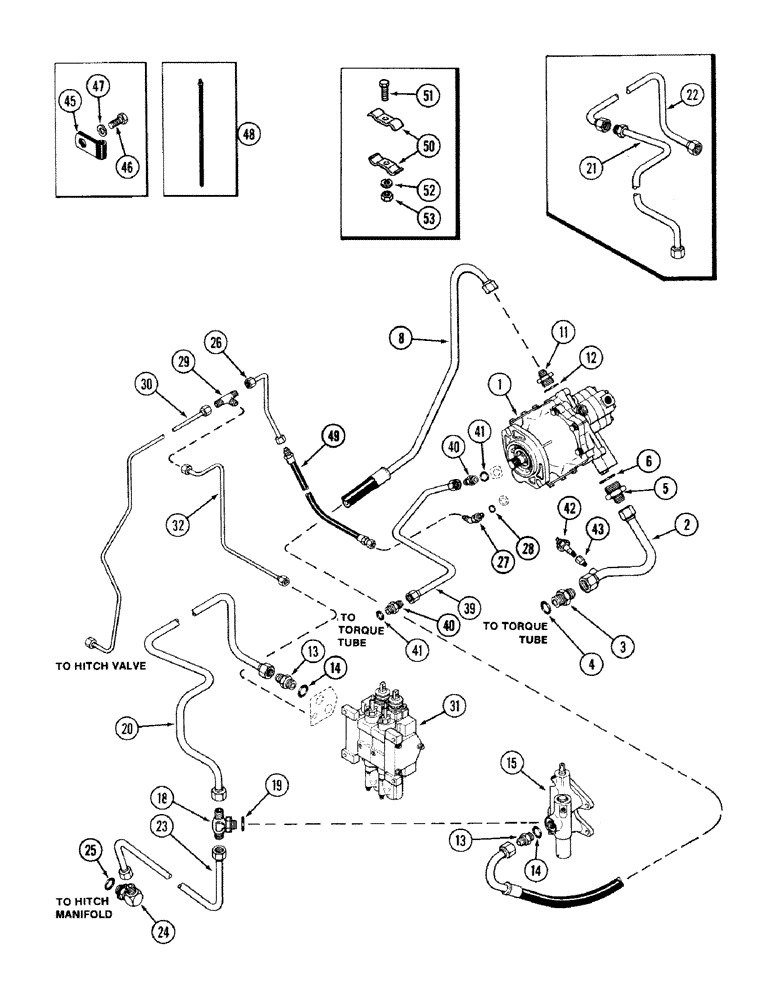

Схема запчастей Case IH 2394 - (8-004) - HYDRAULIC PUMP AND LINES, WITH HITCH, PRIOR TO TRANSMISSION SERIAL NO. 16283224 (08) - HYDRAULICS
42
51
24
27
18
26
31
23
53
22
1
14
3
32
2
5
13
52
39
4
20
12
41
30
6
45
15
41
14
28
40
25
40
13
48
21
8
19
47
46
49
50
29
43
11

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP - gear and piston (See Figure 8-012)

1шт.

2

A167255

PIPE

TUBE - pump suction

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 4

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

5

A147128

CONNECTOR, ELEC

UNION - straight, 1 inch tube, 1-5/16 NF x 1-7/8 inch NF, Includes: Ref. 6

1шт.

6

237-6028

O-RING,1.364" ID x 1.504" OD x 0.07"

28-1, 90 Duro, 2.09" ID x .116" Thk

1шт.

8

A177246

HOSE

TUBE - pump to regulator valve

1шт.

11

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, Incl. Ref. 12

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

REF

INSTRUCTION

VALVE - PTO regulator (See Page 6-94, 6-96 or 6-98)

1шт.

18

A176193

NIPPLE, LUBE

TEE - special (Used on tractors with air/oil seat), Includes: Ref. 19

1шт.

18

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch adj O-ring branch x flare (Used on tractors without air/oil seat), Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

REF

INSTRUCTION

TUBE - regulator valve to remote valve (Order Ref 21 and 22)

1шт.

21

A162498

TUBE

- tee to tube (Service only)

1шт.

22

A162499

TUBE

- tube to remote valve (Service only)

1шт.

23

A162496

TUBE

- regulator valve to hitch manifold

1шт.

24

A181670

ELBOW,90 Degree, 1 1/16"-12 37 Degree x 7/8"-14, O-Ring

- 90 degree, 7/8 NF x 1-1/16 inch NF, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

A177331

PIPE

TUBE - pump, Serial Range: pilot-tee

1шт.

27

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 45 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

1шт.

30

NSS

NOT SOLD SEPARAT

- tee to hitch manifold, pilot

1шт.

31

REF

INSTRUCTION

VALVE - remote (See Figure 8-008 - 8-058, 8-060 or 8-062)

1шт.

32

A143338

TUBE

- remote valve, Serial Range: pilot-tee

1шт.

39

A167254

PIPE

TUBE - steering pump suction

1шт.

40

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 41

2шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

42

REF

INSTRUCTION

SWITCH - transmission filter pressure (See Figure 4-12)

1шт.

43

A161432

FITTING

SNUBBER - switch

1шт.

45

49839

CLAMP

- tube

2шт.

46

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

47

95-81159

WASHER,3/8" x 7/8" x .083"

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

49

A176455

HYDRAULIC HOSE,0.25" ID x 38.00", SAE J343, SAE 100R1, SAE J517

0.25" ID x 38.00", SAE 100R1 or SAE J434 for SAE 100R1 per SAE J517 - Pump pilot

1шт.

50

NLS

NO LONGER SERVICED

- tube

4шт.

51

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

52

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

53

425-105

NUT,5/16"-18, G5

2шт.
