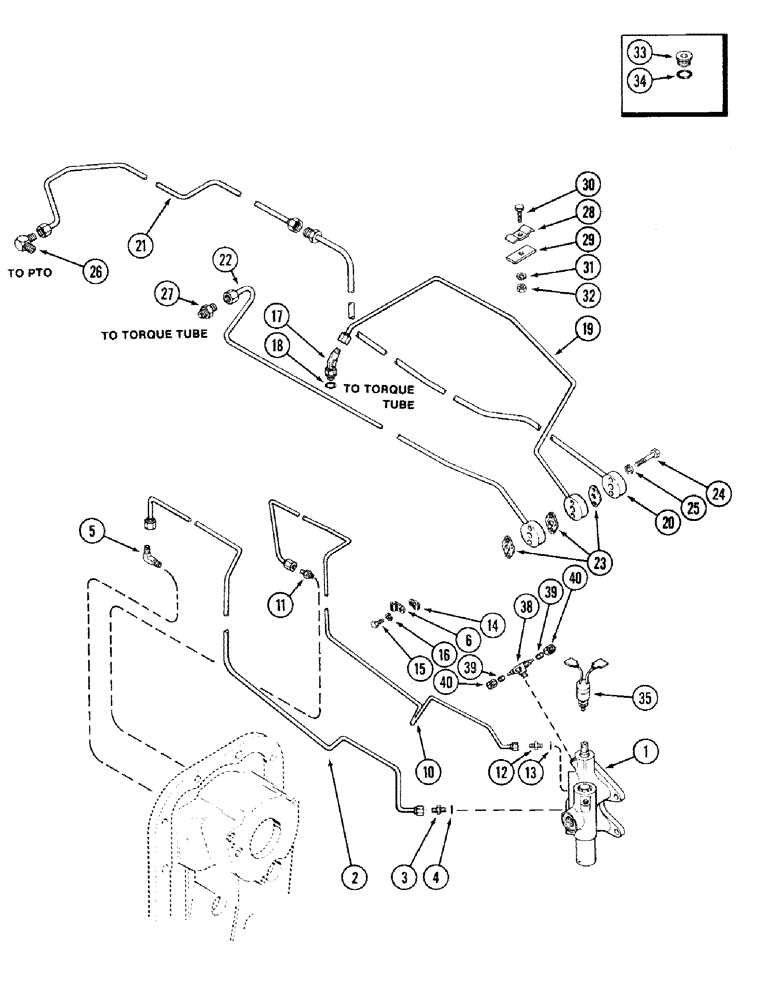

Запчасти Case IH 2394 (8-002) - PTO HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - PTO and clutch regulating (See Figure 6-94, 6-96 or 6-98)

1шт.

2

A169098

TUBE

- valve to PTO clutch

1шт.

3

G109024

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - PTO valve detent, Includes: Ref. 4

1шт.

5

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

6

49852

PTO SHAFT

- tube

1шт.

10

A169099

TUBE

- valve to PTO brake

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT, Includes: Ref. 13

1шт.

12

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 13

1шт.

14

A20541

CLIP

CLAMP - tube

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

16

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

- 45 deg, 3/4-16 flare x 9/16-18 inch adj O-ring boss (Used with tubes A185267 and A179933), Includes: Ref. 18

1шт.

17

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss (Used with tube A163136), Includes: Ref. 18

1шт.

19

A185267

TUBE

- (C1) and dual range lubrication, 3/4-16 inch thread (24 speed transmission)(Replaces A179933)

1шт.

19

A163136

TUBE

- (C1) and dual range lubrication, 9/16-18 inch thread (24 speed transmission)(Order A185267 and 218-5529)

1шт.

20

A160484

TUBE

- PTO lubrication, front

1шт.

21

A139496

TUBE

- PTO lubrication, rear

1шт.

22

A145224

TUBE

- (C1) lubrication

1шт.

23

1981250C1

GASKET

- lubrication tube (Replaces A66143)

3шт.

24

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

(12 speed transmission) Hex, 5/16"-18 x 2", G5

2шт.

24

326-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

(24 speed transmission) Hex, 5/16"-18 x 2 3/4", G8

2шт.

25

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

27

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

1шт.

28

A139065

CLAMP

- tube

1шт.

29

A60864

PLATE

- tube clamp

1шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

31

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

425-105

NUT,5/16"-18, G5

1шт.

33

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 34 Hex Soc, 9/16"-18 ORB

1шт.

35

A162422

SWITCH

- transmission oil pressure

1шт.

38

222-2681

TEE,17/32"-24 x 1/8" NPT Br

ASSEMBLY - 1/4 tube 7/16-24 x 1/4 inch PT, Includes: Ref. 39 and 40

1шт.

39

222-2610

SLEEVE

- flanged, 1/4 inch tube OD

2шт.

40

222-2600

NUT

NUT - hex, 1/4 tube OD x 7/16-24 inch

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
