Запчасти Case IH 2394 (7-20) - PRESSURE CONTROL VALVE (07) - BRAKES

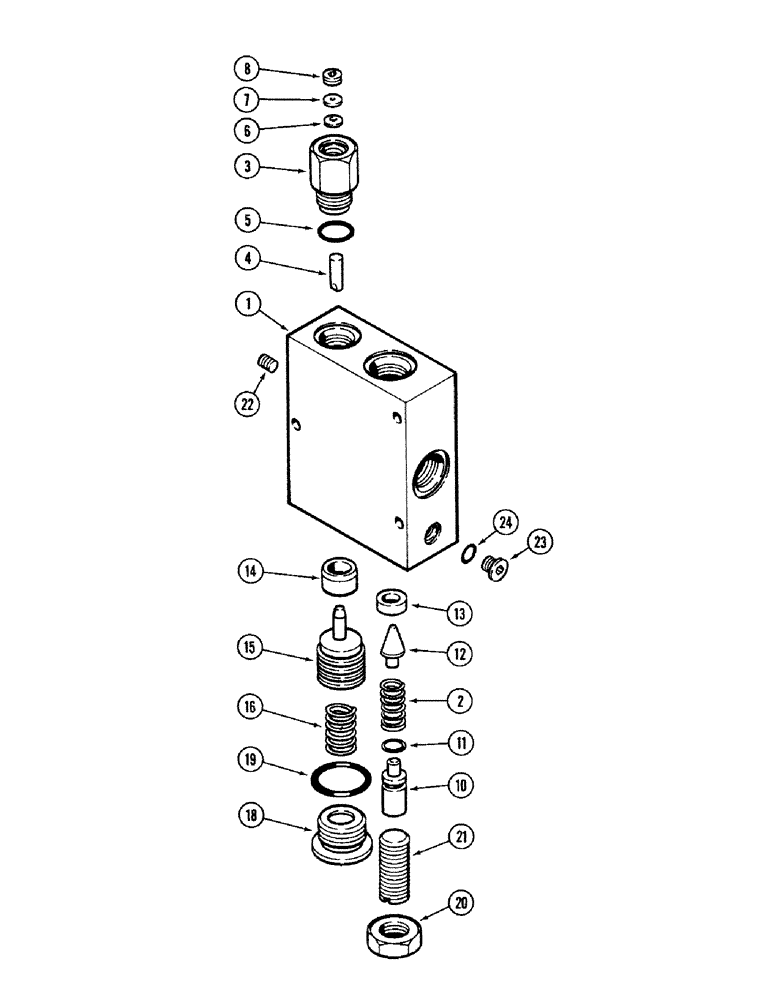

Схема запчастей Case IH 2394 - (7-20) - PRESSURE CONTROL VALVE (07) - BRAKES
11
22
12
6
1
10
21
19
8
24
15
2
5
23
14
7
13
18
16
4
3
20

Артикул

Название

Примечание

Количество

A147688

VALVE

ASSEMBLY - pressure control, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

A47875

SPRING

- valve

1шт.

A47876

ADAPTER

KIT - unloading, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

4

A47878

PISTON

- adapter

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

A47879

WASHER

- stop

1шт.

7

A47880

WASHER

- orifice

1шт.

8

A47881

SCREW,Lock, 7/16" - 20 x 1.56"

- lock

1шт.

10

S115827

RETAINER

- spring

1шт.

11

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Retainer

1шт.

12

S115830

CONE

- valve

1шт.

13

S115831

SEAT

- valve cone

1шт.

14

S115835

SEAT

- valve

1шт.

15

S115836

PISTON

- valve

1шт.

16

S115837

SPRING

- piston

1шт.

18

S115845

PLUG

- special

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

425-1510

JAM NUT,Jam, 5/8"-18, G5

1шт.

21

176-291

SCREW,Sl Hdls, 5/8" - 18 x 1 1/2", Flat Pt

- set, flat point slotted, 5/8 NF X 1-1/2 inch headless

1шт.

22

178-1302

SCREW,Hdls Hex Skt, #10 - 32 x 1/4", Flat Pt

1шт.

23

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 24 Hex Soc, 7/16"-20 ORB

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

Выбрано товаров: 24
