Запчасти Case IH 2394 (7-18) - EMERGENCY HAND BRAKE (07) - BRAKES

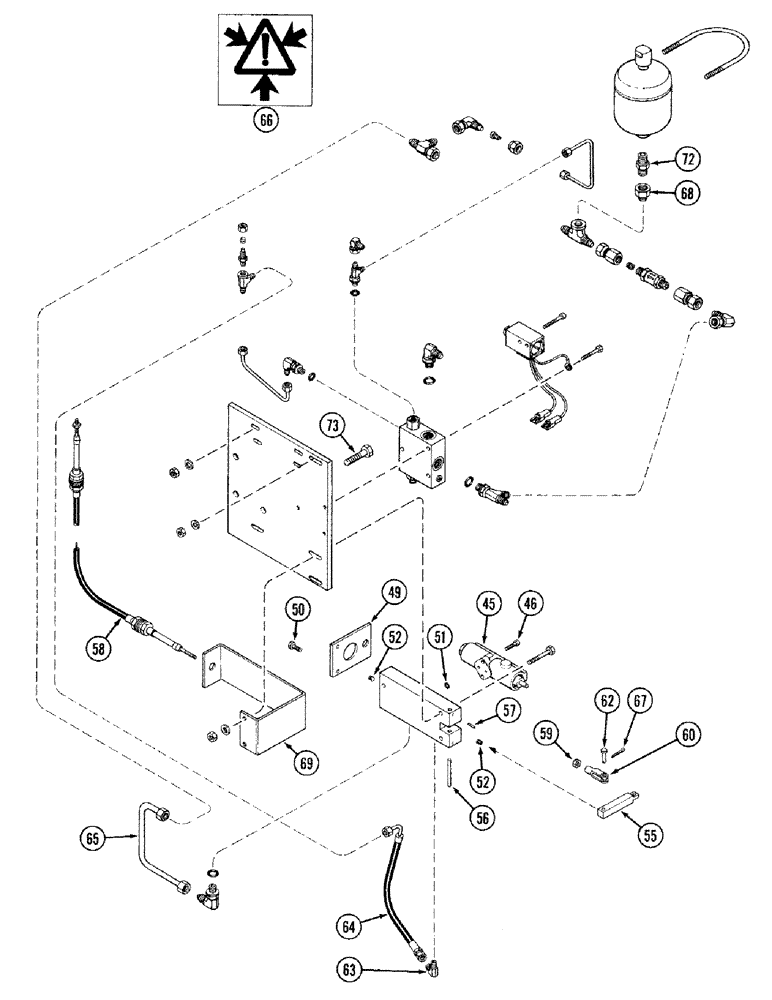

Схема запчастей Case IH 2394 - (7-18) - EMERGENCY HAND BRAKE (07) - BRAKES
57
55
51
56
63
73
50
60
52
46
65
45
52
68
62
67
72
58
66
69
64
59
49

Артикул

Название

Примечание

Количество

A160618

BRAKE

HAND BRAKE ATTACHMENT - emergency (Machinery Item), Includes: Ref. 45 - 73 and 1 - 44 on Figure 7-16

1шт.

45

A147690

VALVE

ASSEMBLY - pressure regulator (See Figure 7-22)

1шт.

46

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, Hex Soc Hd, 5/16"-18 x 1"

2шт.

49

A149095

BRACKET

- cable mounting

1шт.

50

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

51

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

52

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket head, 1/8 inch PT

2шт.

55

A149096

LINK

- valve actuating

1шт.

56

A147859

PIN

- pivot, link

1шт.

57

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

2шт.

58

A135243

CABLE

ASSEMBLY - control

1шт.

59

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

60

213-114

ADJUSTABLE CLEVIS,1/4" - 28

CLEVIS - adjustable, 1/4 inch NF

1шт.

62

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Yoke 1/4" x .770"

1шт.

63

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

64

A160915

HOSE

ASSEMBLY - manifold drain

1шт.

65

A160560

TUBE

ASSEMBLY -, Serial Range: accumulator-manifold

1шт.

66

321-4675

DECAL

- pressure symbol

1шт.

67

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

68

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

REDUCER - 3/8 X 1/2 inch PT

1шт.

69

A160914

GUARD

- pressure valve

1шт.

72

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

NIPPLE - hex, 1/2 PT x 1-7/8 inch

1шт.

73

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 5

3шт.

Выбрано товаров: 23
