(7-16) - EMERGENCY HAND BRAKE, ACCUMULATOR, IF EQUIPPED

Запчасти Case IH 2394 (7-16) - EMERGENCY HAND BRAKE, ACCUMULATOR, IF EQUIPPED (07) - BRAKES

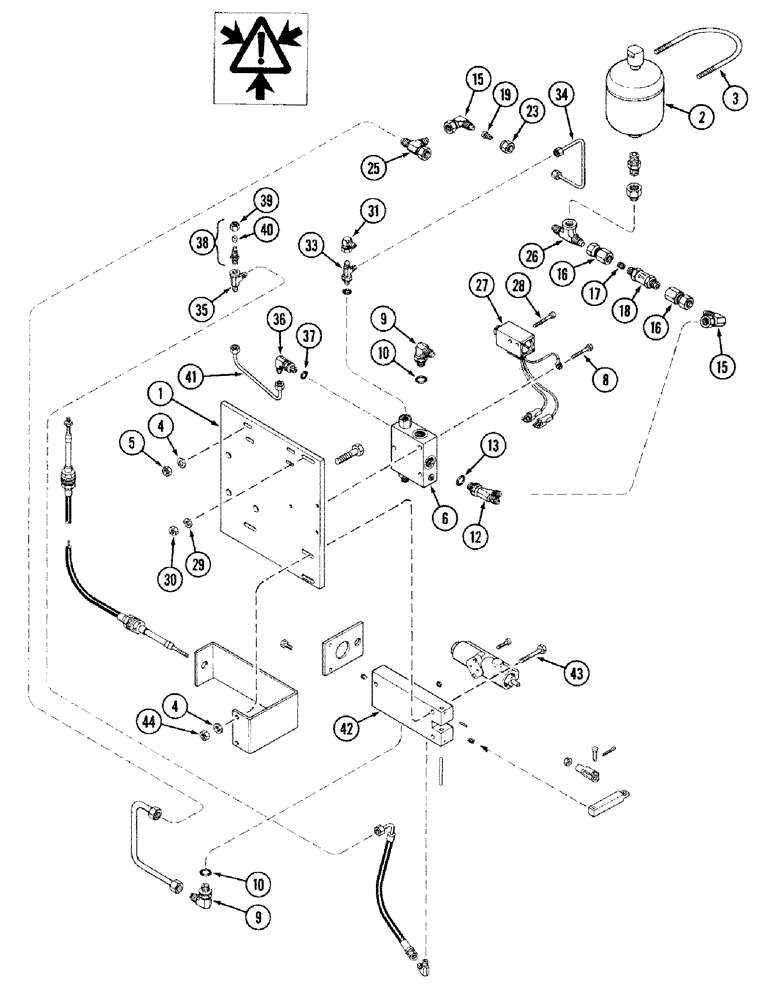

Схема запчастей Case IH 2394 - (7-16) - EMERGENCY HAND BRAKE, ACCUMULATOR, IF EQUIPPED (07) - BRAKES
4
6
29
40
41
26
12
9
33
8
25
23
19
39
5
27
34
28
3
1
10
37
16
42
18
35
44
4
13
30
17
16
10
2
38
9
36
43
15
15
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A160618

BRAKE

HAND BRAKE ATTACHMENT - emergency (Machinery Item), Includes: Ref. 1 - 44 and 45 - 73 on Figure 7-18

1шт.

1

A160555

BRACKET

- mounting

1шт.

2

A160604

ACCUMULATOR

- brake

1шт.

3

A160761

CLAMP

- accumulator mounting

1шт.

4

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

5шт.

5

129-529

NUT,3/8"-16, G5, Hvy

2шт.

6

A147688

VALVE

ASSEMBLY - pressure control (See Figure 7-20)

1шт.

8

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

3шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

2шт.

16

218-1560

HYD CONNECTOR,37º, Sw, 7/16"-20 x 3/8"-18 NPTF

CONNECTOR ASSEMBLY - straight, 3/4-16 inch flare x 3/8 inch PT

2шт.

17

A147854

FITTING

SCREW - set, orifice

1шт.

18

A147853

VALVE

ASSEMBLY - check

1шт.

19

218-791

REDUCER,37 Degree, 1/2" x 1/4" Tube

ADAPTER - reducing, 1/2 tube OD x 7/16-20 inch flare

1шт.

23

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 3/4 inch NF

1шт.

25

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

26

218-574

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

- 3/8 female PT branch x 3/4-16 inch flare x flare

1шт.

27

A147858

SWITCH

ASSEMBLY - pressure, hydraulic

1шт.

28

165-29

SCREW,#10 - 24 x 2"

- hex socket head, No. 10 NC X 2 inch, use 461-31032

1шт.

29

95-81115

WASHER,#12

- flat, 1/4 x 9/16 x 3/64 inch

1шт.

30

225-10110

NUT,#10-24

1шт.

31

218-989

ELBOW,90 Degree, 7/16"-20 Sw x 1/8" NPT

- 90 deg, 7/16-20 swiv straight thread x 1/8 inch PT

1шт.

33

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 inch flare branch x flare x adj O-ring boss

1шт.

34

A147855

TUBE

ASSEMBLY - pilot, signal

1шт.

35

218-631

TEE,7/16"-20, 37 Degree x 1/8"-27, NPTF Fem Run

- hydraulic, 7/16-20 flare X 1/8 inch PT

1шт.

36

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 37

1шт.

37

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

38

222-2631

FITTING,17/32"-24 x 1/8" NPT Fem, Comp

CONNECTOR ASSEMBLY - 1/4 inch tube X 1/4 inch PT, Includes: Ref. 39 and 40

1шт.

39

222-2600

NUT

NUT - hex, 1/4 tube OD x 7/16-24 inch

1шт.

40

222-2610

SLEEVE

- flanged, 1/4 inch tube OD

1шт.

41

A160607

TUBE

ASSEMBLY - drain, PC valve

1шт.

42

A160553

MANIFOLD

- pressure, control valve

1шт.

43

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

44

425-106

NUT,3/8"-16, Cl 5

3шт.
