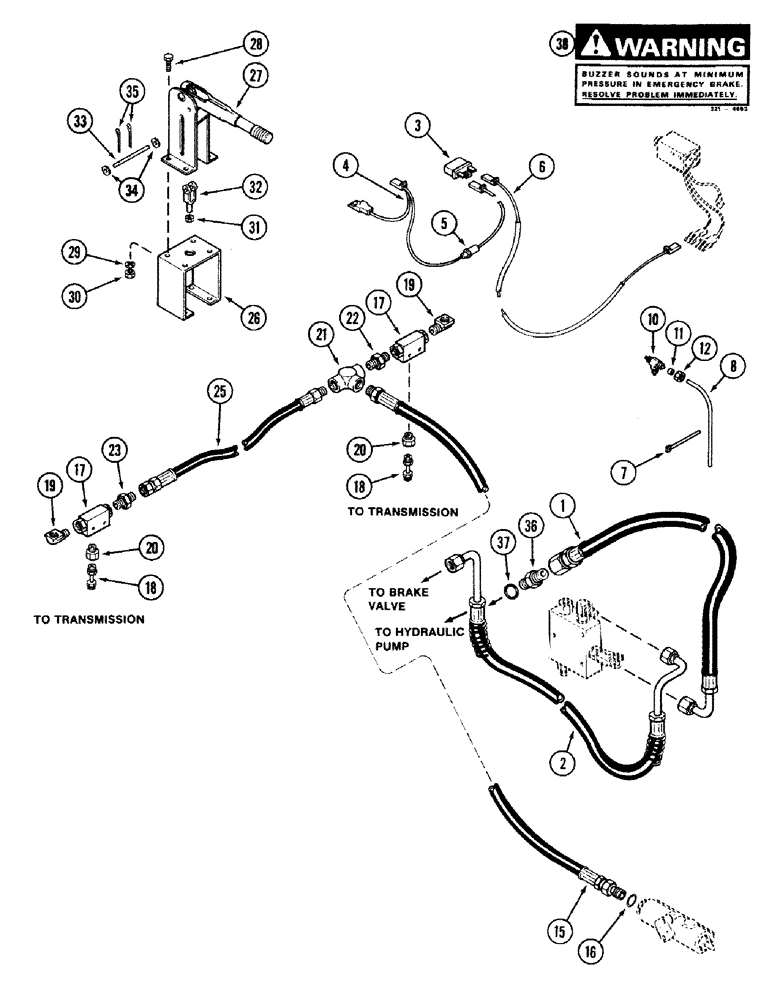

Запчасти Case IH 2394 (7-14) - EMERGENCY HAND BRAKE, BRAKE AND LEVER, IF EQUIPPED (07) - BRAKES

A160618

BRAKE

HAND BRAKE ATTACHMENT - emergency (Machinery Item), Includes: Ref. 1 - 38

1шт.

1

A160597

HOSE

ASSEMBLY - pump to pressure valve

1шт.

2

A163321

HOSE

ASSEMBLY - pressure valve to brake valve

1шт.

3

A143506

BUZZER

- audible warning

1шт.

4

A160605

ELECTRICAL WIRE

WIRE ASSEMBLY - power, fused, Includes: Ref. 5

1шт.

5

223-26

FUSE,5 Amp, Type 3AG

- 5 amperes, 3AG

1шт.

6

A160606

ELECTRICAL WIRE

WIRE ASSEMBLY - buzzer to pressure switch

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

8

A145792

TUBE

- nylon, 3/8 OD x 12 inch (Order A167912 and, Serial Range: cut-length)

1шт.

10

222-2751

HYD CONNECTOR

TEE - compression, 3/8 inch OD, Includes: Ref. 11 and 12

1шт.

11

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

3шт.

12

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/21-24 inch

3шт.

15

A160599

HOSE

ASSEMBLY - pressure valve to brake, Includes: Ref. 16

1шт.

17

A143476

VALVE

- shuttle

2шт.

18

A149099

FITTING

ASSEMBLY - brake to shuttle valve

2шт.

19

222-1022

ELBOW,90 Degree, 7/16"-24 Inv Fl x 1/8" NPT

- 90 degree, 7/16-24 inverted flare x 1/8 inch PT

2шт.

20

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

ADAPTER - 7/16-24 inverted flare x 1/8 inch PT

2шт.

21

217-1161

TEE,1/4"-18 Female

- pipe, 1/4 inch female

1шт.

22

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

REDUCER - hex, 1/4 PT x 1/8 inch PT

1шт.

23

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

25

A149092

HOSE

ASSEMBLY - right to left brake

1шт.

26

A160554

SUPPORT

- brake lever

1шт.

27

A149591

LEVER

ASSEMBLY - hand brake

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

29

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

30

425-106

NUT,3/8"-16, Cl 5

8шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

32

A149134

YOKE

- adjustable

1шт.

33

A161784

PIN

- clevis

1шт.

34

95-11034

WASHER,1/4"

- flat, 0.344 x 0.668 x 0.051 inch

2шт.

35

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

36

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 37

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

38

321-4683

DECAL

- warning

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
