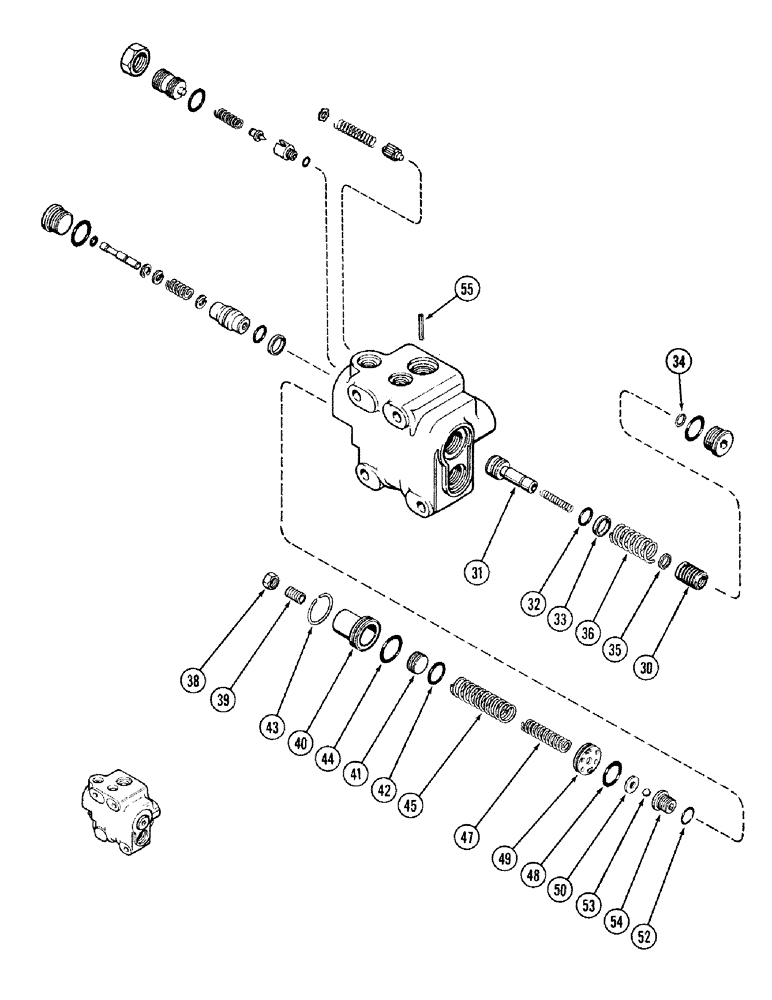

Запчасти Case IH 2394 (7-10) - BRAKE VALVE (CONTINUED) (07) - BRAKES

G105128

VALVE, BRAKE

VALVE ASSEMBLY - power brake, Includes: Ref. 30 - 55 and 2 - 28 on Figure 7-08

1шт.

30

G105038

SPOOL

- pressure regulator

1шт.

31

G105037

PISTON

- pressure regulator

1шт.

32

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

33

G100797

RING

- sealing

1шт.

34

G100792

RING

- retaining

1шт.

35

G102104

WASHER

- orifice

1шт.

36

G105036

SPRING

- pressure

1шт.

38

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

1шт.

39

83-33812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - set, hex socket headless, 3/8 NC x 3/4 inch, flat pt

1шт.

40

G100761

RETAINER

- spring

1шт.

41

G100762

PISTON

- relief valve

1шт.

42

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

43

G100769

RING

- retaining

1шт.

44

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

1шт.

45

G100760

SPRING

- brake valve relief

1шт.

47

G100759

SPRING

- brake valve relief

1шт.

48

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

49

G102877

GUIDE

- spring

1шт.

50

G100588

WASHER

- guide

1шт.

52

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

53

211-208

BALL,5/16" Dia

- 5/16 inch, grade 50, chrome alloy steel

1шт.

54

G35351

SEAT

- ball, pressure relief

1шт.

55

138-14

LOCK PIN,1/16" x 1", Slotted

Pin, 1/16" x 1", Slotted

1шт.
