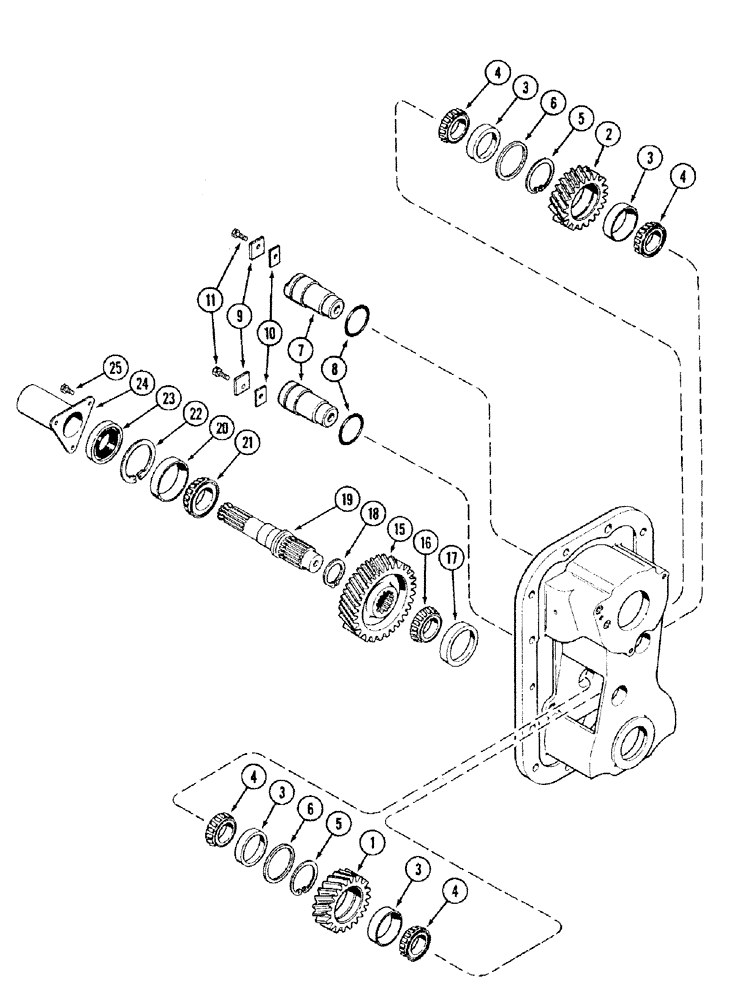

Запчасти Case IH 2394 (6-106) - PTO IDLERS AND OUTPUT SHAFT (06) - POWER TRAIN

1

A142592

GEAR

- PTO idler, left, 31 teeth

1шт.

2

A142591

GEAR

- PTO idler, right (With identification groove), 31 teeth

1шт.

3

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing (Order 130503H)

4шт.

4

T33023

ROLLER BEARING

CONE - bearing (Order 300426R91)

4шт.

5

100-21325

SNAP RING,3.25", Int, #325

Ring, Snap, 3.25", Int, #325

4шт.

6

A142667

SPACER

- bearing

2шт.

7

A142593

PIN,57.07mm OD x 119.58mm L

- PTO idler gear

2шт.

If OD of pin does not change, then refer to idler pin in the 2390 parts book, page 6-228, P/N A151037.

1шт.

8

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

9

A136233

RETAINER

- idler pins

2шт.

10

A136315

SHIM,.0050" Thk

Retainer .0050" Thk

1шт.

10

A136316

SHIM,.0070" Thk

Retainer .0070" Thk

1шт.

10

A136317

SHIM,.010" Thk

Retainer .010" Thk

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

15

A138186

GEAR

- PTO output

1шт.

16

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing

1шт.

17

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing (Order ST877)

1шт.

18

100-11206

SNAP RING,#206, Ext

Ring, Snap, #206, Ext

1шт.

19

A148833

SHAFT

- output

1шт.

20

A28168

CUP

- bearing (Order ST970)

1шт.

21

A28169

ROLLER BEARING,1.875" ID x 0.875"

CONE - bearing (Order 298029R91)

1шт.

22

A151628

RING

- retaining, output shaft, 0.074 inch

1шт.

22

A151471

RING

- retaining, output shaft, 0.078 inch

1шт.

22

A151470

RING

- retaining, output shaft, 0.082 inch

1шт.

22

A151235

RING

- retaining, output shaft, 0.086 inch

1шт.

22

A142636

RING

- retaining, output shaft, 0.090 inch

1шт.

22

A142635

RING

- retaining, output shaft, 0.094 inch

1шт.

22

A142634

RING

- retaining, output shaft, 0.098 inch

1шт.

22

A142637

RING

- retaining, output shaft, 0.102 inch

1шт.

22

A148193

RING

- retaining, output shaft, 0.108 inch

1шт.

22

D38774

SNAP RING,3.50", Int, #350

Ring, Snap, , output shaft, 0.109 inch 3.50", Int, #350

1шт.

23

A142927

OIL SEAL,47.63mm ID x 89.08mm OD x 13.08mm Thk

- oil, output shaft

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

24

A142641

GUARD

- PTO output shaft

1шт.

25

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

3шт.

A49396

SEAL

KIT - PTO clutch and brake: Includes: Ref. 8 and 23 on Figures 6-102 or 6-104 and 6-106)

1шт.
