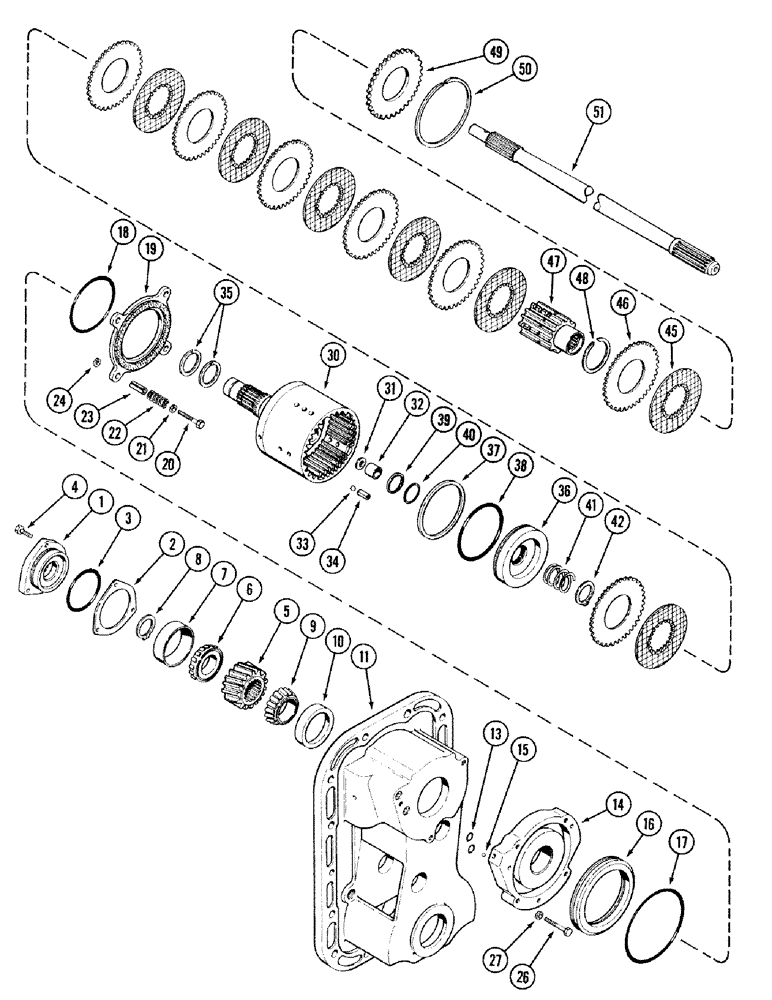

Запчасти Case IH 2394 (6-102) - PTO CLUTCH AND BRAKE, PRIOR TO TRANSMISSION SERIAL NO. 16260432 (06) - POWER TRAIN

1

A142590

COVER

- lubrication oil inlet

1шт.

2

A144020

SHIM

- cover, 0.005 inch

1шт.

2

A144021

SHIM

- cover, 0.007 inch

1шт.

2

A144022

SHIM

- cover, 0.010 inch

1шт.

3

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

5

A138183

GEAR

- PTO, input

1шт.

6

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing

1шт.

7

T27784

CUP

- bearing

1шт.

8

100-16156

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

1шт.

9

A32764

ROLLER BEARING,1.875" ID x 1"

CONE - bearing (Order 317705C91)

1шт.

10

A32763

CUP

- bearing (Order 317706C1)

1шт.

11

A153698

HOUSING

- PTO

1шт.

13

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - square section, 0.301 ID x, 0.066 inch

2шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

14

A138176

CARRIER

- PTO brake piston

1шт.

15

211-208

BALL,5/16" Dia

- 5/16 inch, grade 200, chrome alloy steel

1шт.

16

A150236

PISTON

- brake, PTO

1шт.

17

238-5259

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

18

238-7248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 7, 75 Duro

Inner -248, Cl 7, 4.734" ID x .139" Thk

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

19

1981243C1

PLATE

BRAKE - PTO (replaces A142910)

1шт.

20

26-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

- hex, 5/16 NC x 2-1/4 inch, grade 8

4шт.

21

95-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

22

A152184

SPRING

- PTO brake return

4шт.

23

138-202

LOCK PIN,1/2" x 1 3/8", Slotted

Pin, 1/2" x 1 3/8", Slotted

4шт.

24

A148875

WASHER,8.2mm ID x 12.7mm OD x 0.86mm Thk

- PTO brake return

4шт.

26

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

3шт.

27

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- carrier bolt

3шт.

30

A150675

CARRIER

ASSEMBLY - PTO clutch, Includes: Ref. 31 - 34

1шт.

31

A63265

WASHER

- thrust, PTO input shaft

1шт.

32

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

- shaft, PTO power input

1шт.

33

211-207

BALL

- 9/32 inch, grade 200, chrome alloy steel

1шт.

34

38-12008

LOCK PIN,5/16" x 1/2", Slotted

Pin, 5/16" x 1/2", Slotted

1шт.

35

A59005

SEAL

O-RING - PTO clutch carrier

2шт.

36

A155962

PISTON

- PTO clutch

1шт.

37

A50625

SEALING RING,130.02mm ID x 137.64mm OD x 2.49mm Thk

SEAL - piston, 5-7/64 inch OD

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

38

A155963

SEAL

O-RING - piston seal, 4-21/32 inch

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

39

A63258

SEAL

- piston, 1-17/32 inch ID

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

40

A155964

O-RING,1.812" ID x 0.073" Thk

O-RING - piston seal, internal, 1-51/64 inch

1шт.

Part of PTO Clutch and Brake Seal Kit, P/N A49396

1шт.

41

A63260

SPRING

- piston return

1шт.

42

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

45

1981228C1

PLATE

- clutch, friction (Replaces A67130)

7шт.

46

A67156

PLATE

- clutch, steel

7шт.

47

A146020

HUB

- PTO clutch

1шт.

48

101-11275

SNAP RING,#275, 2.594, Ext

RING, SNAP, #275, 2.594, Ext

1шт.

49

A50643

PLATE

- clutch back-up

1шт.

50

A50639

RING

- retaining

1шт.

51

A152396

SHAFT

- PTO drive, front

1шт.

A49396

SEAL

KIT - PTO clutch and brake, Includes: Ref. 3, 13, 17, 18, 37, 38, 39 and 40, on Figures 6-102 and 6-106)

1шт.
