Запчасти Case IH 2394 (6-100) - PTO HOUSING (06) - POWER TRAIN

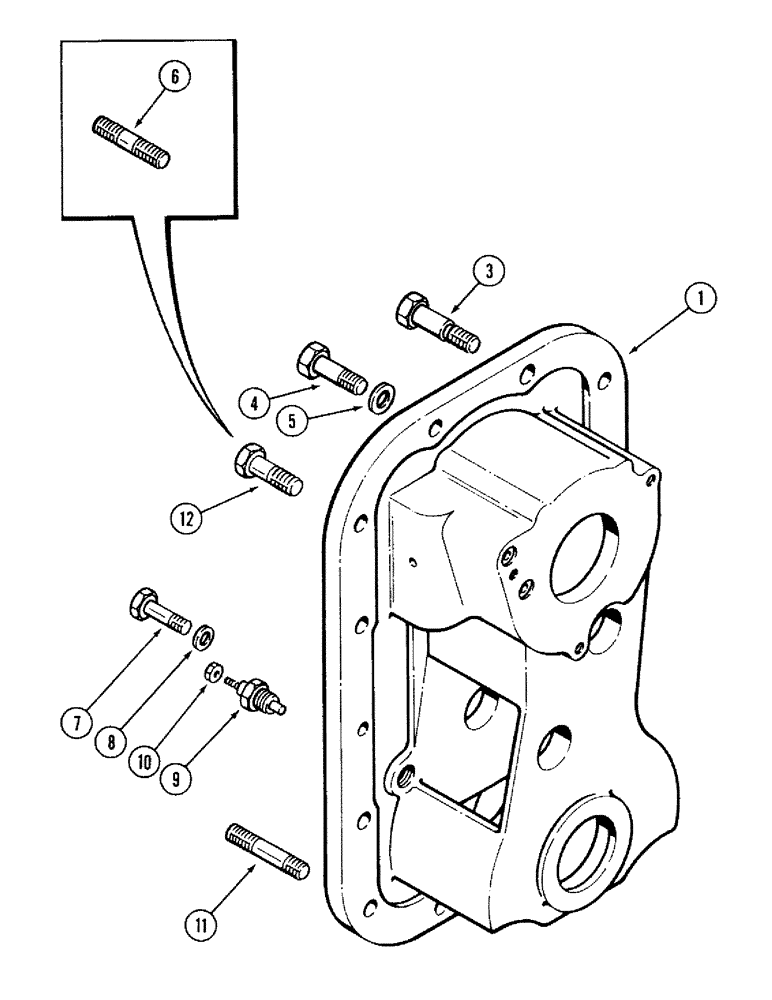

Схема запчастей Case IH 2394 - (6-100) - PTO HOUSING (06) - POWER TRAIN
5
3
11
10
9
8
7
12
4
6
1

Артикул

Название

Примечание

Количество

1

A153698

HOUSING

- PTO

1шт.

3

A63255

STEP BOLT

BOLT - dowel, housing locating

1шт.

4

326-1034

BOLT,Hex, 5/8" - 11 x 2-1/8", Gr 8

1шт.

5

A64303

WASHER

- flat, hardened steel

1шт.

6

REF

INSTRUCTION

STUD - 5/8 NC x 3-1/4 inch (Order Ref 12)

2шт.

7

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- hex, 1/2 NC x 1-7/8 inch

2шт.

8

A150672

WASHER

- flat, hardened, 1/2 x 1 x 3/32 inch

2шт.

9

A154283

SWITCH

- transmission temperature sending

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

11

A64109

STUD

- 5/8 NC x 3-1/2 inch

6шт.

12

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

(Without hitch) Hex, 5/8"-11 x 2", G8

4шт.

12

326-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

(With hitch) Hex, 5/8"-11 x 2 1/2", G8

4шт.

Выбрано товаров: 12
