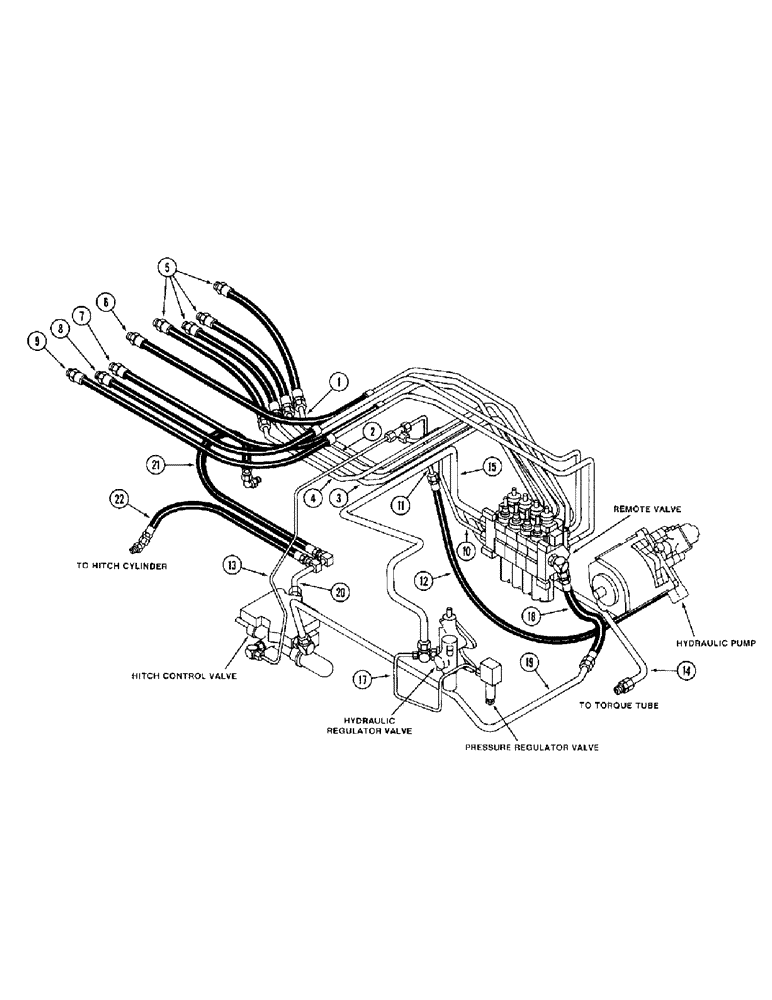

Запчасти Case IH 2394 (1-14) - PICTORIAL INDEX, REMOTE HYDRAULICS, TRANSMISSION SERIAL NO. 16283224 AND AFTER (00) - PICTORIAL INDEX

1

Number One Remote Tube "Page 8-31, 8-35"

1шт.

2

Number Two Remote Tube "Page 8-31, 8-35"

1шт.

3

Number Three Remote Tube "Page 8-31, 8-35"

1шт.

4

Number Four Remote Tube "Page 8-31, 8-35"

1шт.

5

Number One Through Four Remote Hose "Page 8-31, 8-35"

1шт.

6

Number Five Remote Tube And Hose "Page 8-39, 8-43, 8-51, 8-55"

1шт.

7

Number Six Remote Tube And Hose "Page 8-39, 8-43, 8-51, 8-55"

1шт.

8

Number Seven Remote Tube And Hose "Page 8-47, 8-51"

1шт.

9

Number Eight Remote Tube And Hose "Page 8-47, 8-51"

1шт.

10

Remote Valve Pilot Tube (With Page 8-7

1шт.

Hitch)

1шт.

11

Pump Pilot Tube (With Hitch) Page 8-7

1шт.

12

Pump Pilot Hose (With Hitch) Page 8-7

1шт.

13

Hitch Valve PIlot Tube (With Hitch) Page 8-7

1шт.

14

Remote Valve To Sump Valve Page 8-31

1шт.

15

Remote Valve To Regulator Valve "Page 8-7, 8-11"

1шт.

Tube (Upper)

1шт.

16

Remote Valve To Regulator Valve "Page 8-7, 8-11"

1шт.

Tube (Lower)

1шт.

17

Regulator Valve Supply Tube Page 8-125

1шт.

18

Remote Valve To Hitch Valve Hose Page 8-7

1шт.

(With Hitch)

1шт.

19

Remote Valve To Hitch Valve Tube Page 8-7

1шт.

(With Hitch)

1шт.

20

Hitch Lift Cylinder Supply Tube Page 8-119

1шт.

(With Hitch)

1шт.

21

Left Lift Cylinder Hose (With Page 8-119

1шт.

Hitch)

1шт.

22

Right Lift Cylinder Hose (With Page 8-119

1шт.

Hitch)

1шт.
