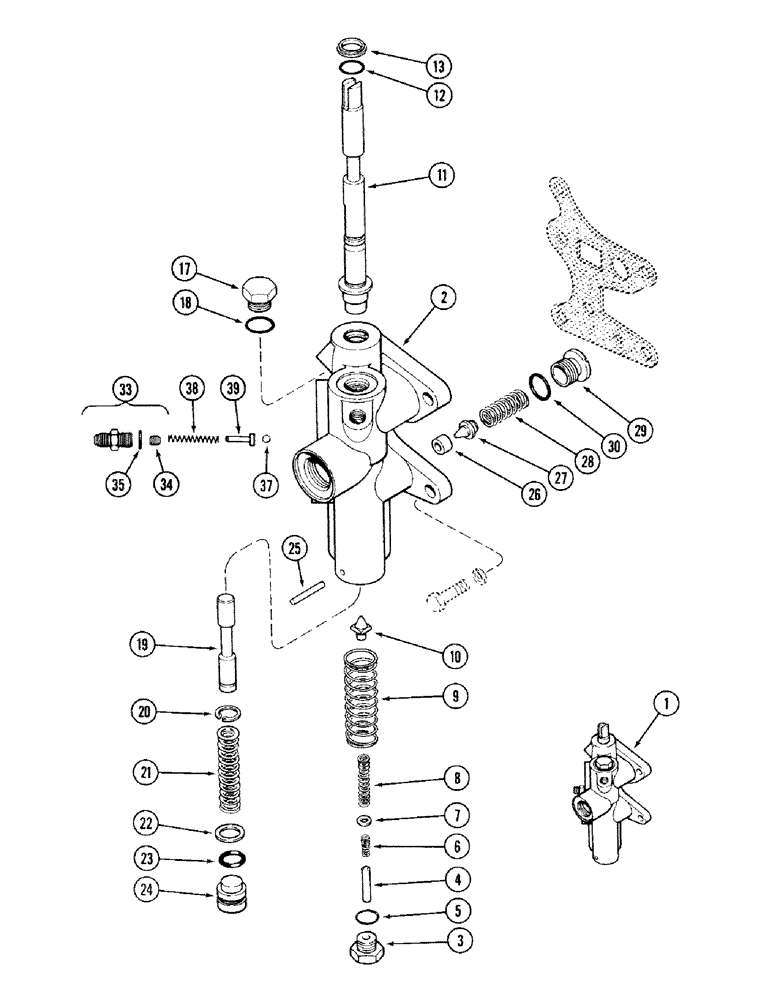

Запчасти Case IH 2394 (6-094) - A169223 PTO CONTROL VALVE (06) - POWER TRAIN

1

A169223

CHECK VALVE

VALVE ASSEMBLY - PTO control (Order G110274), Includes: Ref. 2 - 39

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

A139689

PLUG

ASSEMBLY - modulator, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - spring guide

1шт.

5

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch

1шт.

6

A139738

SPRING

- modulator, secondary

1шт.

7

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

8

A141647

SPRING

- modulator, primary

1шт.

9

A139739

SPRING

- return (Order G109868)

1шт.

10

A61991

POINT

- modulator

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - PTO control (Order G110274), Includes: Ref. 12

1шт.

12

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

13

A63660

RING

- wiper

1шт.

17

214389

PLUG,3/4" - 16 ORB

Includes Ref. 18 Hex Hd, 3/4"-16 ORB

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - regulating (Order G110274)

1шт.

20

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

21

G109129

SPRING

- regulator spool

1шт.

22

A149281

SHIM

- regulator spring, 1/64 inch

1шт.

23

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

24

A149282

PLUG

- regulator spool

1шт.

25

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

26

A60686

SEAT

- relief valve

1шт.

27

A60687

VALVE POPPET

POPPET - relief valve

1шт.

28

G109164

SPRING

- relief valve

1шт.

29

A63356

PLUG

- relief spring

1шт.

30

218-5346

O-RING,0.116" Thk x 0.863" ID, -911, Cl 6, 90 Duro

- 11/16 inch OD tube

1шт.

33

G109083

HYD CONNECTOR

CONNECTOR ASSEMBLY - PTO valve detent (Order A169229), Includes: Ref. 34 and 35

1шт.

34

A160657

SET SCREW,3/8" - 16

- adjusting

1шт.

37

211-28

BALL,13/32" Dia

- 13/32 inch, grade 200, chrome alloy steel

1шт.

38

G109019

SPRING

- detent

1шт.

39

A161859

SPRING

PIN - detent spring (Order G109322)

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
