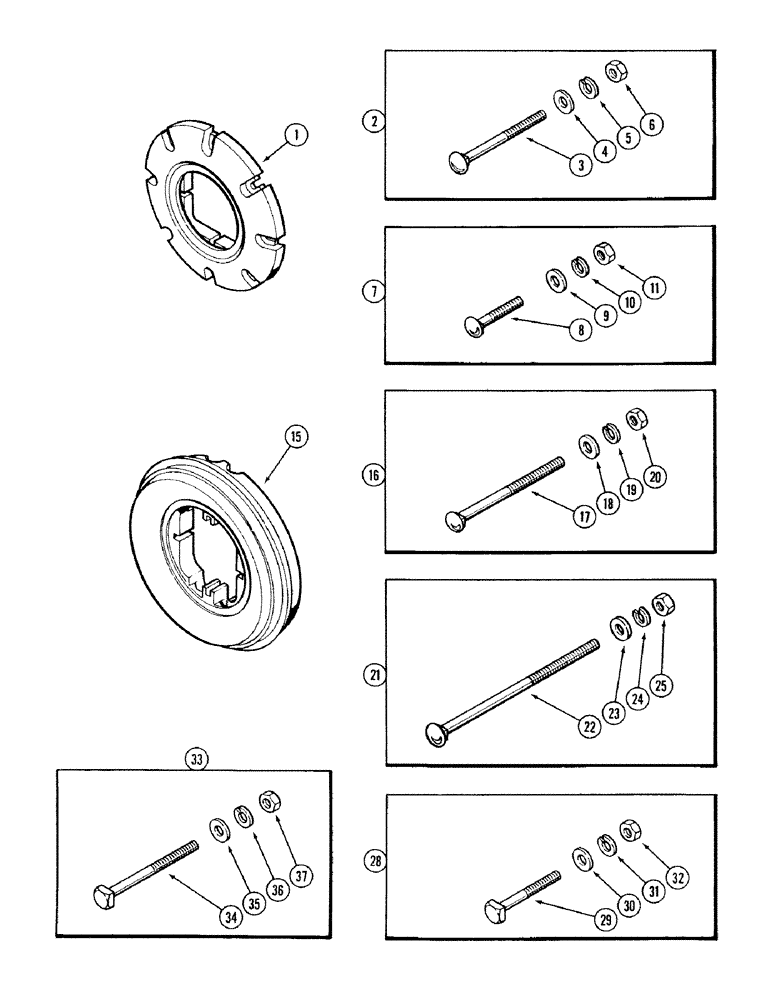

Запчасти Case IH 2394 (6-090) - REAR WHEEL WEIGHTS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
2
A67484
PACKAGE
HARDWARE KIT - first outside weight (Machinery item), Includes: Ref. 3 - 6
1шт.
3
433-10112
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 7", Gr 5
BOLT - round head square neck, 5/8 NC x 7 inch
8шт.
7
A62577
PACKAGE
HARDWARE KIT - each add on weight (Machinery item), Includes: Ref. 8 - 11
1шт.
8
433-1064
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 5
BOLT - round head square neck, 5/8 NC x 4 inch
8шт.
16
A67487
HARDWARE KIT - wheel weight, rear (Machinery item), Includes: Ref. 17 - 20
1шт.
17
33-10144
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 9", Gr 5
BOLT - round head square neck, 5/8 NC x 9 inch
8шт.
21
A67486
HARDWARE KIT - wheel weight, rear (Machinery item), Includes: Ref. 22 - 25
1шт.
22
111-638
CARRIAGE BOLT,Short NK, 5/8"-11 x 14", G5
BOLT - round head square neck, 5/8 NC x 14 inch
8шт.
28
A67519
PACKAGE
HARDWARE KIT - wheel weight, rear (Machinery item), Includes: Ref. 29 - 32
1шт.
33
A67520
HARDWARE KIT - wheel weight, rear (Machinery item), Includes: Ref. 34 - 37
1шт.
34
117-512
BOLT,Sq Hd, 5/8" - 11 x 7", Gr 5
- square head, 5/8 NC x 7-1/2 inch
8шт.
