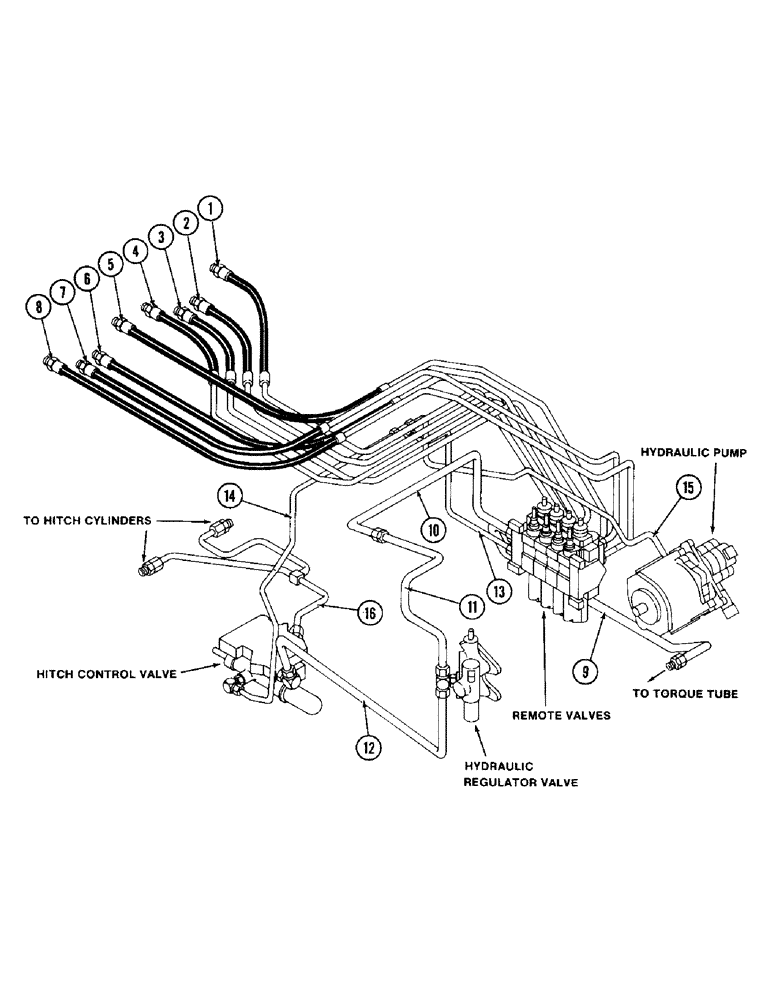

Запчасти Case IH 2394 (1-12) - PICTORIAL INDEX, REMOTE HYDRAULICS, PRIOR TO TRANSMISSION SERIAL NO. 16283224 (00) - PICTORIAL INDEX

1

Number One Remote Hose And Tube Page 8-29

1шт.

2

Number Two Remote Hose And Tube Page 8-29

1шт.

3

Number Three Remote Hose And Tube Page 8-29

1шт.

4

Number Four Remote Hose And Tube Page 8-29

1шт.

5

Number Five Remote Hose And Tube "Page 8-39, 8-43, 8-51, 8-55"

1шт.

6

Number Six Remote Hose And Tube "Page 8-39, 8-43, 8-51, 8-55"

1шт.

7

Number Seven Remote Hose And Tube "Page 8-47, 8-51"

1шт.

8

Number Eight Remote Hose And Tube "Page 8-47, 8-51"

1шт.

9

Remote Valve To Sump Tube Page 8-29

1шт.

10

Remote Valve To Regulator Valve Page 8-5

1шт.

Tube (Upper)

1шт.

11

Remote Valve To Regulator Valve Page 8-5

1шт.

Tube (Lower)

1шт.

12

Regulator Valve To Depth Valve Page 8-5

1шт.

Manifold Tube (With Hitch)

1шт.

13

Remote Valve Pilot To Tee Tube Page 8-5

1шт.

(With Hitch)

1шт.

14

Depth Valve To Tee Tube (With Page 8-5

1шт.

Hitch)

1шт.

15

Hydraulic Pump To Tee Tube (With Page 8-5

1шт.

Hitch)

1шт.

16

Depth Valve Manifold To Hitch Page 8-119

1шт.

Cylinders Tube (With Hitch)

1шт.
