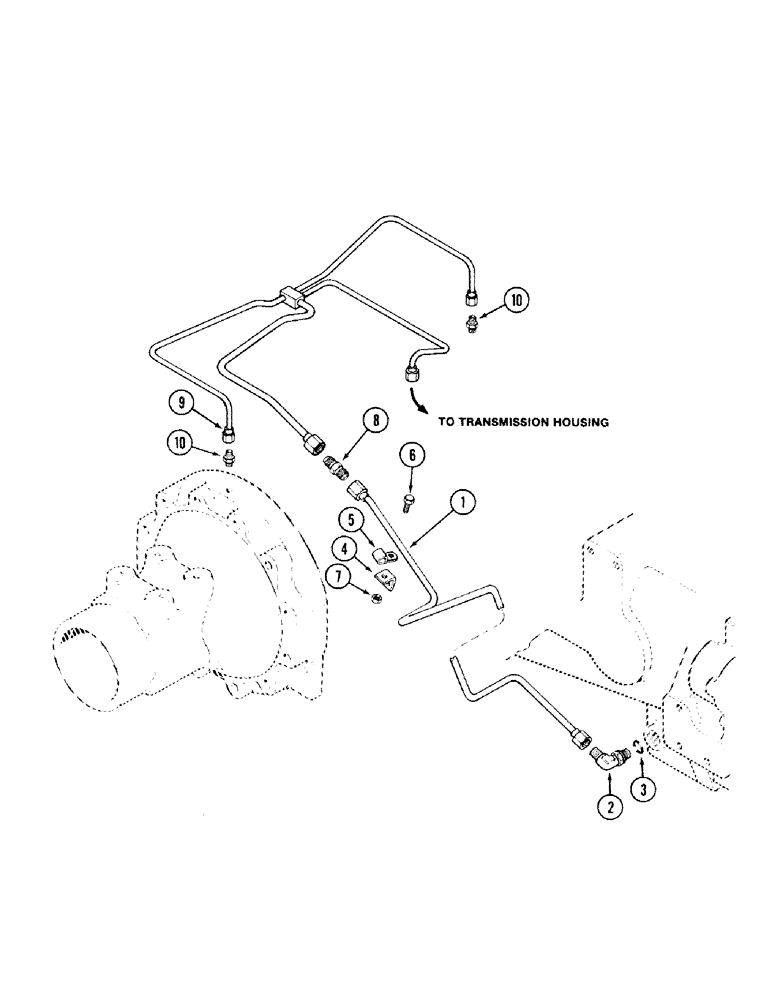

Запчасти Case IH 2394 (6-070) - PLANETARY LUBRICATION TUBES (06) - POWER TRAIN

1

A160710

TUBE ASSY.

TUBE - planetary lubrication, front

1шт.

2

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

A160236

BRACKET

- tube

1шт.

5

49838

CLAMP

- tube

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

A160216

FITTING

VALVE - check

1шт.

9

A169687

TUBE

- planetary lubrication, rear

1шт.

10

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

2шт.
