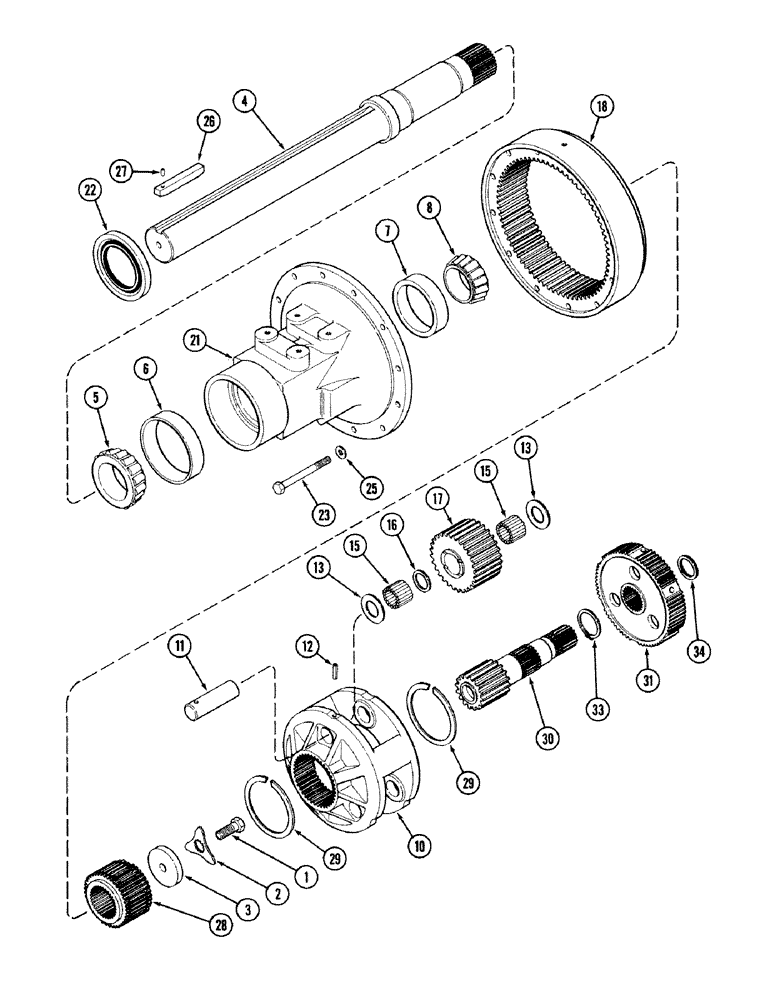

Запчасти Case IH 2394 (6-068) - REAR AXLE, HOUSING AND PLANETARY GEARS, LONG AXLE (120 INCH), TRANSMISSION S/N 16260432 AND AFTER (06) - POWER TRAIN

1

326-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A154860

SHAFT

- rear axle

2шт.

5

A136255

ROLLER BEARING,95.25mm ID x 48.26mm W

CONE - bearing

2шт.

6

A136253

BEARING, CUP,171.45mm OD x 38.1mm W

CUP - bearing

2шт.

7

A63214

CUP

- bearing

2шт.

8

A63216

ROLLER BEARING,89.98mm ID x 44mm W

CONE - bearing

2шт.

10

A154266

CARRIER

- planet gear

2шт.

11

A154268

PIN

- planet gear

6шт.

12

138-2006

PIN,3/8" x 1", Coiled

- roll, 3/8 x 3/4 inch spirol

6шт.

13

A67116

WASHER

- planetary gear

12шт.

15

A48461

BEARING, ROLLER

BEARING KIT - roller, planet gear, 1.700", Includes 38 rollers

6шт.

15a

A47252

ROLLER BEARING

1.495", not shown

1шт.

16

A154491

WASHER

SPACER - roller bearing separator

6шт.

17

A179215

GEAR

- planet, rear axle

6шт.

18

A179593

GEAR

- planetary ring

2шт.

21

A154868

HOUSING

- rear axle

2шт.

22

A136563

OIL SEAL

- oil, rear axle

2шт.

23

26-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

- hex, 5/8 NC x 6-1/2 inch

24шт.

25

A64303

WASHER

- flat, hardened steel

24шт.

26

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

28

A154264

HUB

- rear axle

2шт.

29

A154265

SNAP RING,#575, 5.446, Ext

RING - retaining, hub

4шт.

30

A179189

SHAFT

- differential, with sun gear

2шт.

31

A159552

HUB ASSY.

HUB - brake

2шт.

33

100-11262

SNAP RING,#262, Ext

Ring, Snap, #262, Ext

2шт.

34

102-12215

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining

2шт.
