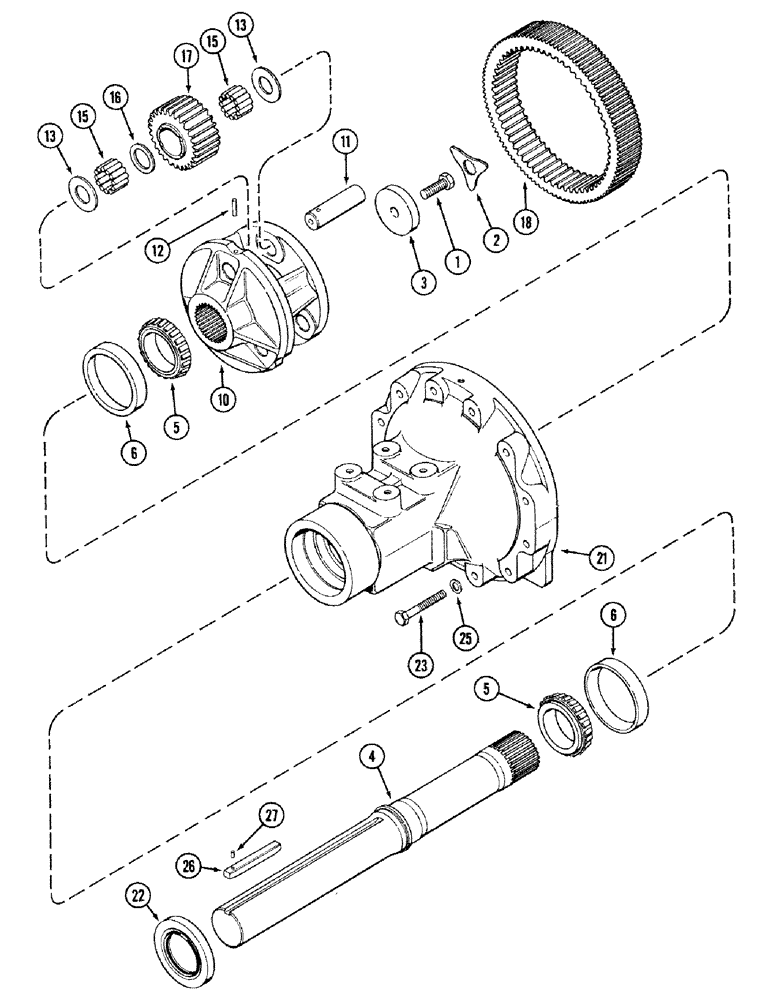

Запчасти Case IH 2394 (6-062) - REAR AXLE, HOUSING AND PLANETARY GEARS, SHORT AXLE (96 INCH), PRIOR TO TRANSMISSION S/N 16260432 (06) - POWER TRAIN

1

326-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A155168

SHAFT

- rear axle

2шт.

5

A59049

ROLLER BEARING

CONE - bearing (Order 67250C1)

4шт.

6

A59048

BEARING CUP

CUP - bearing (Order 67251C1)

4шт.

10

A148018

CARRIER

- planet gear

2шт.

11

A151874

PIN

- planet gear

6шт.

12

138-2006

PIN,3/8" x 1", Coiled

- roll, 3/8 x 3/4 inch spirol

6шт.

13

A67116

WASHER

- planetary gear

12шт.

15

A48461

BEARING, ROLLER

BEARING KIT - roller, planet gear, 1.700", Includes 38 rollers

6шт.

15a

A151972

ROLLER

1.495", not shown

1шт.

16

A67117

SPACER

- bearing separator

6шт.

17

A168175

GEAR

- planetary

6шт.

18

A151934

GEAR

- planetary ring

2шт.

21

A153969

HOUSING

- rear axle

2шт.

22

A59046

OIL SEAL

- oil, rear axle

2шт.

23

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

24шт.

25

A64303

WASHER

- flat, hardened steel

24шт.

26

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
