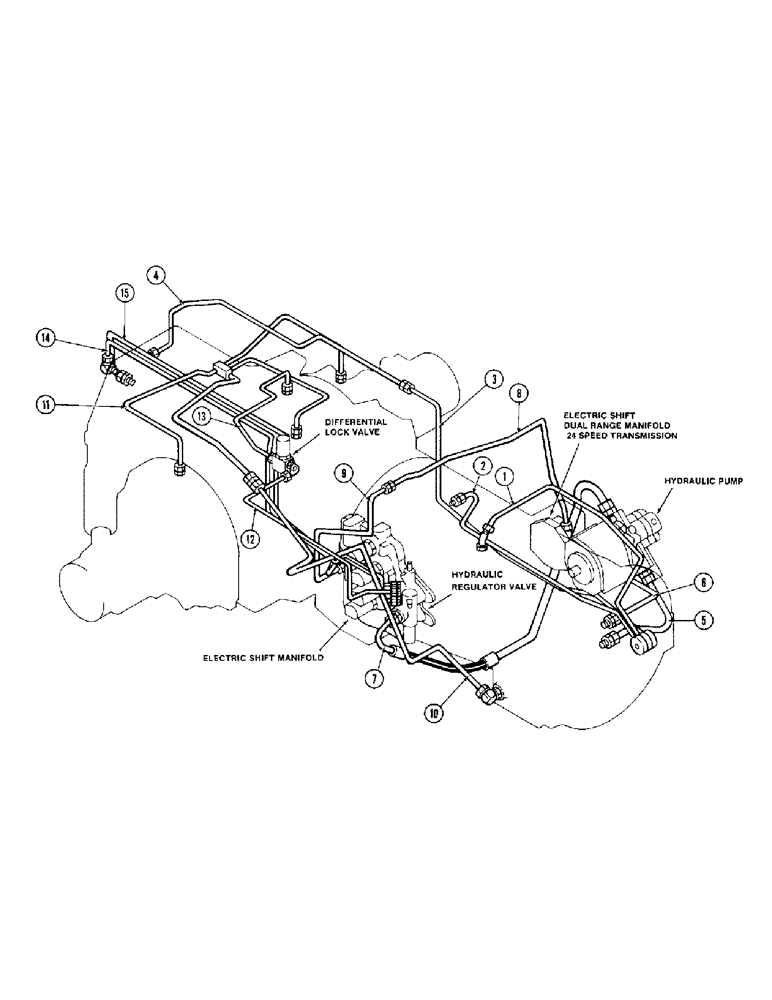

Запчасти Case IH 2394 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Dual Range Lubrication Tube (24 Page 8-3

1шт.

Speed Transmission)

1шт.

2

(C1) Clutch Lubrication Tube Page 8-3

1шт.

3

PTO Lubrication Tube (Front) Page 8-3

1шт.

4

PTO Lubrication (Rear) Page 8-3

1шт.

5

Hydraulic Pump Suction Tube Page 8-5 thru 8-11

1шт.

6

Steering Pump Suction Tube Page 8-5 thru 8-11

1шт.

7

Hydraulic Pump To Regulator Valve Page 8-5 thru 8-11

1шт.

Tube And Hose

1шт.

8

Dual Range Left Tube (24 Speed Page 6-5

1шт.

Transmission)

1шт.

9

Dual Range Right Tube (24 Speed Page 6-5

1шт.

Transmission)

1шт.

10

Planetary Lubrication Tube (Front) Page 6-71

1шт.

11

Planetary Lubrication Tube Assembly Page 6-71

1шт.

(Rear)

1шт.

12

Regulator Valve To Differential Page 7-7

1шт.

Lock Valve Tube

1шт.

13

Differential Lock Valve To Page 7-7

1шт.

Transmission Tube

1шт.

14

Regulator Valve To PTO Clutch Tube Page 8-3

1шт.

15

Regulator Valve To PTO Brake Tube Page 8-3

1шт.
