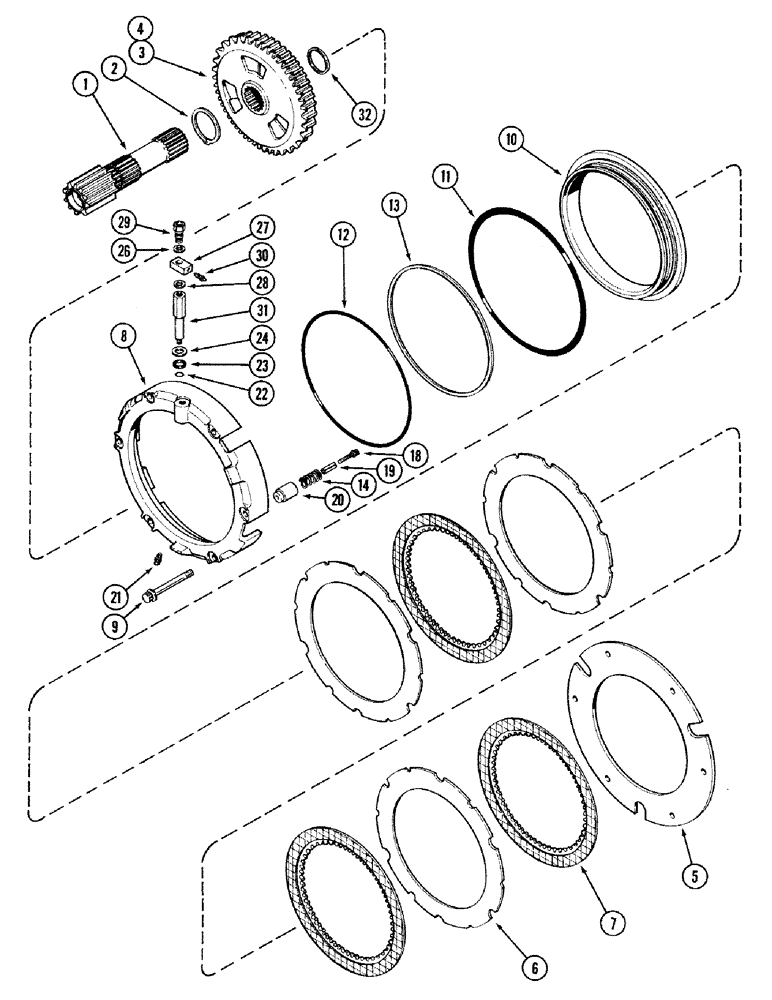

Запчасти Case IH 2394 (6-056) - DIFFERENTIAL, SHAFT AND BRAKE MECHANISM, PRIOR TO TRANSMISSION SERIAL NO. 16260432 (06) - POWER TRAIN

1

A168168

SHAFT

- differential with sun gear

2шт.

2

F35283

SNAP RING,#231, Ext

Ring, Snap, #231, Ext

4шт.

3

A63196

HUB

- brake, right (Shown), casting number is 968712

1шт.

4

A63197

HUB

- brake, left, casting number is 968713

1шт.

5

A63198

DISC

PLATE - brake, steel

2шт.

6

A63199

DISC

PLATE - brake, steel

6шт.

7

1981269C1

DISC

PLATE - brake, friction (Replaces A67129)

6шт.

8

A148019

CYLINDER

- brake support

2шт.

9

380-2864

12 PT SCREW,Flg, 1/2" - 13 x 4"

SCREW - 12 point, 1/2 NC x 4 inch

12шт.

10

A65540

PISTON

- brake

2шт.

A44338

KIT

- sealing, differential brake piston, Includes: Ref. 11 and 12

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING - outer, 11-31/32 x 12-15/32 x 7/32 inch

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - inner, 11-15/32 x 11-29/32 x 7/32 inch

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup (Groove towards outside)

1шт.

14

A155876

SPRING

- brake return

6шт.

18

A155494

LOCK BOLT,1/4" - 20 x 1-3/4", Gr 8

SCREW - Ferry head, brake adjusting

6шт.

19

A154608

PIN

- roll, 7/16 x 1-1/4 inch

6шт.

20

A155874

RETAINER

CUP - brake disk

6шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

- air bleed

2шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

23

A64071

GROMMET

- brake fitting

2шт.

24

195-2073

WASHER,0.69" ID x 1.25" OD x 0.07" Thk

- flat, 11/16 x 1-1/4 x 5/64 inch

6шт.

26

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting

2шт.

27

A64072

FITTING

- brake

2шт.

28

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting

2шт.

29

A64073

HOLLOW SCREW

- connector, brake

2шт.

30

A41491

BLEEDER,1/4" - 28 x 23.37mm

- air bleed

2шт.

31

A66395

FITTING

ADAPTER - hydraulic brake

2шт.

32

102-12215

SNAP RING,#215, 2.060", Ext Spiral

RING - retaining

2шт.
