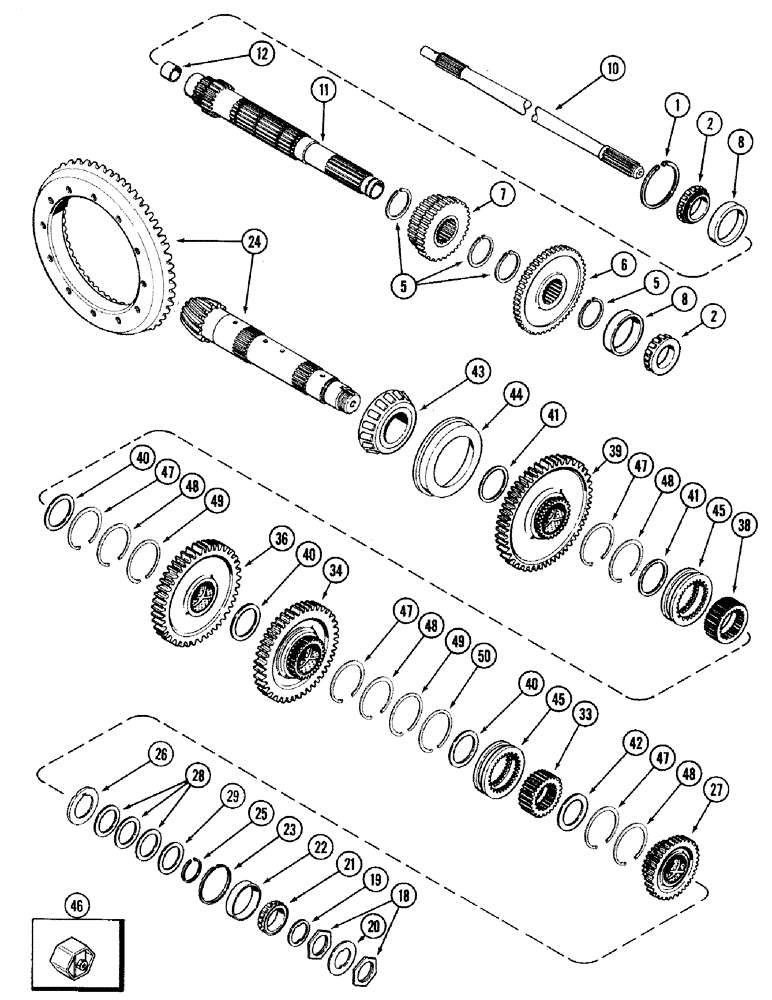

Запчасти Case IH 2394 (6-048) - TRANSMISSION, PLANETARY OUTPUT, PRIOR TO TRANSMISSION SERIAL NO. 16260432 (06) - POWER TRAIN

1

A156868

RING, SNAP

RING - retaining, 0.131 inch (Black)

1шт.

1

A156833

RING, SNAP

RING - retaining, 0.101 inch (Yellow)

1шт.

1

A156834

RING, SNAP

RING - retaining, 0.107 inch (Red)

1шт.

1

A156835

RING, SNAP

RING - retaining, 0.113 inch (Dark Green)

1шт.

1

A156836

RING, SNAP

RING - retaining, 0.119 inch (White)

1шт.

1

A156837

RING, SNAP

RING - retaining, 0.125 inch (Blue)

1шт.

1

A156869

RING, SNAP

RING - retaining, 0.137 inch (Light Green)

1шт.

2

A30494

CONE

- bearing (Order 52843V)

1шт.

5

100-11255

SNAP RING,#255, Ext

Ring, Snap, , planetary output shaft #255, Ext

4шт.

6

A63114

GEAR

- driver, fourth

1шт.

7

A156832

GEAR

- drive, second and third

1шт.

8

A30308

ROLLER BEARING,98.450 mm OD x 17.826 mm

CUP - bearing (Order 659459R1)

2шт.

10

A152396

SHAFT

- PTO drive, front

1шт.

11

A156865

SHAFT

ASSEMBLY - planetary output

1шт.

12

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- input shaft support

1шт.

18

A63156

LOCK NUT

- lock, spiral bevel pinion, countershaft

2шт.

19

A63157

THRUST BEARING,1.955" ID x 2.562" OD x 0.12"

WASHER - thrust bearing, countershaft

1шт.

20

A63155

LOCK WASHER

- locking, countershaft

1шт.

21

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, countershaft front

1шт.

22

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, countershaft front

1шт.

23

A31253

RING, SNAP

RING - retaining, countershaft

1шт.

24

A168190

GEAR

SET - pinion and spiral bevel (Matched set), countershaft

1шт.

25

101-11212

SNAP RING,#212, 1.997", Ext

RING, SNAP, , Countershaft #212, 1.997", Ext

1шт.

26

A150536

COLLAR

- pinion locating, countershaft

1шт.

27

A182354

GEAR

ASSEMBLY - driven, fourth (Includes bushing), countershaft

1шт.

28

A150537

SHIM

- countershaft 0.002 inch

1шт.

28

A150538

SHIM

- countershaft 0.006 inch

1шт.

28

A150539

SHIM

- countershaft 0.010 inch

1шт.

29

A150540

WASHER

- shim backup, countershaft

1шт.

33

A140028

HUB

- shaft, splined pinion, third and fourth, countershaft

1шт.

34

A182314

GEAR

ASSEMBLY - driven, third (Includes bushing), countershaft

1шт.

36

A182312

GEAR

ASSEMBLY - driven, second (Includes bushing), countershaft

1шт.

38

A140024

HUB

- shaft, splined pinion, first and second, countershaft

1шт.

39

A179968

GEAR

ASSEMBLY - driven, first (Includes bushing), countershaft

1шт.

40

A144342

WASHER,70.36mm ID x 89.41mm OD x 0.84mm Thk

- gear thrust, countershaft

3шт.

41

A144341

WASHER

- gear thrust, countershaft

2шт.

42

A144343

WASHER

- gear thrust, countershaft

1шт.

43

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - bearing, countershaft rear

1шт.

44

A63088

ROLLER BEARING,171.47mm OD x 31.75mm W

CUP - bearing, countershaft rear

1шт.

45

A157410

COLLAR

- sliding, countershaft

2шт.

46

A43109

SOCKET/RECEPTACLE

SOCKET - countershaft nut (Service tool)

1шт.

47

R30570

SNAP RING,3.75", Int, #375

RING - retaining, 0.109 inch, countershaft

4шт.

48

A182776

RING, SNAP

RING - retaining, 0.088 inch (Color code Yellow), countershaft

4шт.

49

A168768

OIL SEAL

RING - retaining, 0.095 inch (Color code Pink), countershaft

2шт.

50

A156837

RING, SNAP

RING - retaining, 0.125 inch (Color code Blue), countershaft

1шт.
