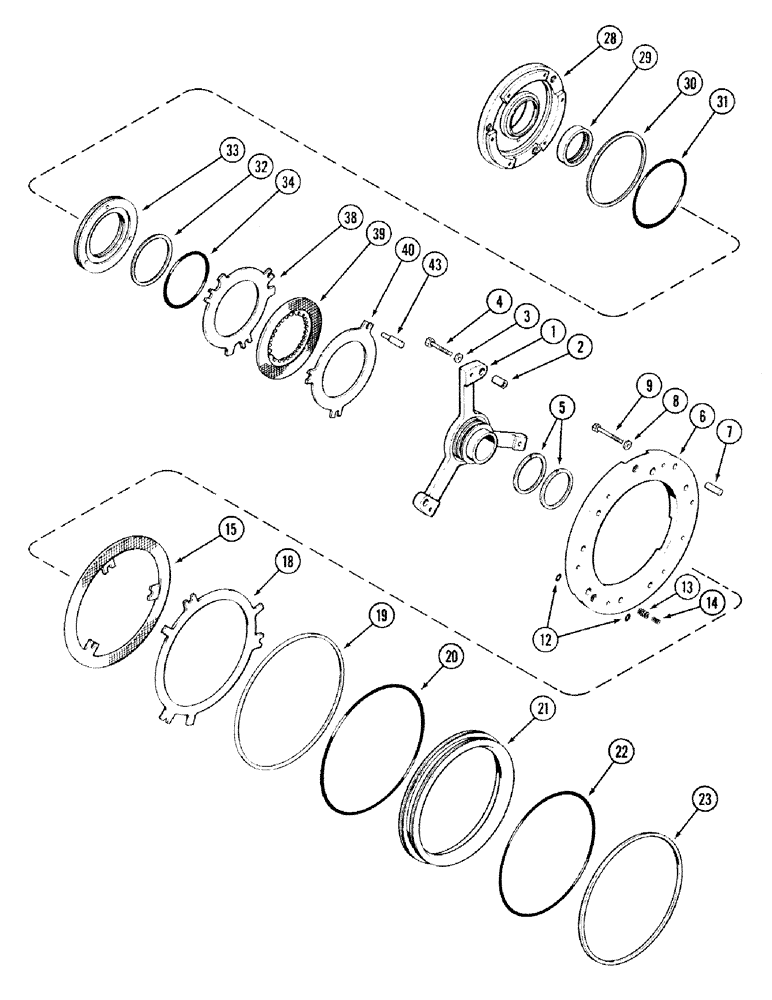

Запчасти Case IH 2394 (6-046) - TRANSMISSION, DUAL RANGE (C5) AND (C6) CLUTCHES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A156915
HUB
- oil distributor, ball 211-209 is sold separately
1шт.
211-209
BALL
- 11/32 inch, grade 200, chrome alloy steel
3шт.
2
A156917
DOWEL
- ring
3шт.
3
A140282
WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk
- hardened, hub bolt
3шт.
5
A152204
RING
- seal
2шт.
6
A156918
RING
PLATE - ring, (C6) reaction
1шт.
7
A65555
PIN
- DOWEL, (C6) reaction plate
3шт.
8
A140282
WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk
- hardened, plate bolt
6шт.
9
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
6шт.
12
A50651
SEALING RING
RING - seal, three on each side of plate
7шт.
13
A62606
SPRING
- return, (C6) plate
3шт.
14
A62607
SPRING
- return, (C6) plate
3шт.
15
A156955
LARGE PLATE
PLATE - friction, (C6) clutch
1шт.
18
A144577
LARGE PLATE
PLATE - steel, (C6) clutch
1шт.
19
A144580
RING
- sealing, (C6) clutch, large, OD
1шт.
20
A150943
O-RING,11.09" ID x 0.107"
- (C6) piston, large OD
1шт.
21
A144576
PISTON
- (C6) clutch
1шт.
22
A150945
O-RING,10.465" ID x 0.107"
- (C6) piston, small OD
1шт.
23
A144581
SEAL
RING - sealing, (C6) piston, small, OD
1шт.
28
A153417
CARRIER
- (C5) piston
1шт.
29
A67531
NEEDLE BEARING,Needle, 69.85mm ID x 79.38mm OD x 15.88mm W
BEARING - needle, roller
1шт.
30
A144774
SEAL
RING - sealing, (C5) piston, external
1шт.
31
A150944
O-RING,6.09" ID x 0.107"
- (C5) piston, external
1шт.
32
A144775
SEAL
RING - sealing, (C5) piston, internal
1шт.
33
A179542
PISTON
- (C5) clutch
1шт.
34
A150946
O-RING,4.306" ID x 0.107"
- (C5) piston, internal
1шт.
38
A144799
LARGE PLATE
PLATE - steel, (C5) clutch
1шт.
39
A153782
LARGE PLATE
PLATE - friction, (C5) clutch
1шт.
40
A144798
LARGE PLATE
PLATE - steel, (C5) clutch
1шт.
43
A144855
PIN
- (C5) reaction
3шт.
A49395
SEAL
KIT - seal, Includes: Ref. 5, 12, 19, 20, 22, 23, 30 31, 32 and 34
1шт.
Выбрано товаров: 32
