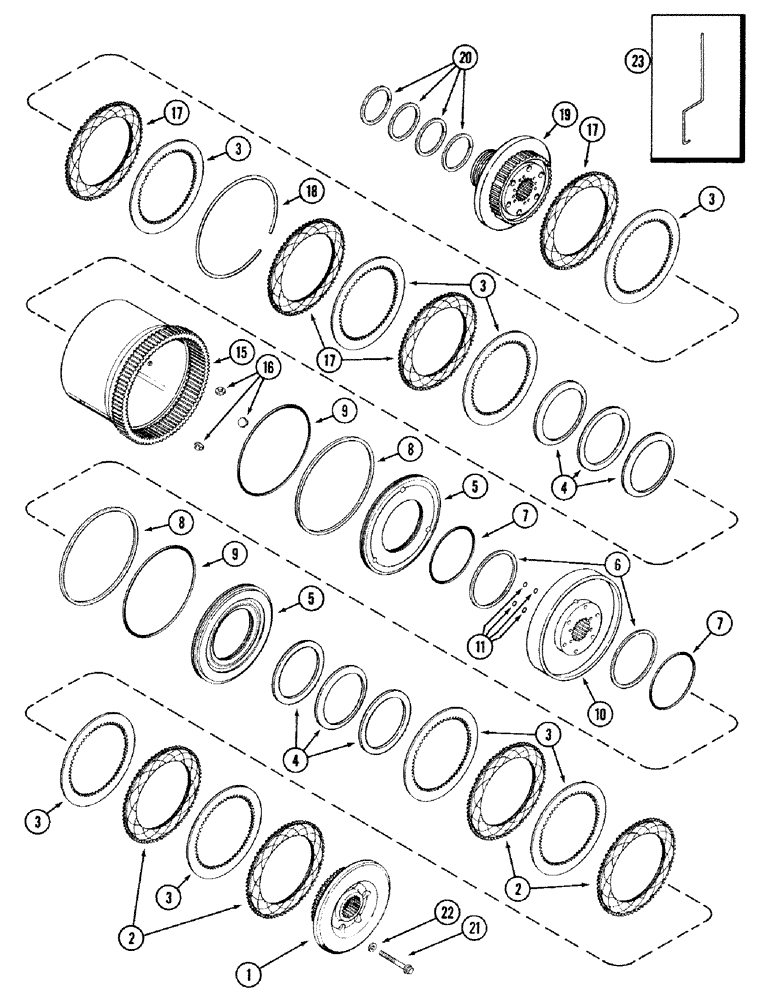

Запчасти Case IH 2394 (6-044) - TRANSMISSION, (C2) AND (C3) CLUTCHES (06) - POWER TRAIN

1

A168959

HUB

- (C2) clutch

1шт.

Transmission serial no. 16260432 and after.

1шт.

1

A153336

HUB

- (C2) clutch

1шт.

Prior to transmission serial no. 16260432.

1шт.

2

A61981

PLATE

- clutch, sintered

5шт.

Transmission serial no. 16260432 and after.

1шт.

2

A61981

PLATE

- clutch, sintered

4шт.

Prior to transmission serial no. 16260432.

1шт.

3

A155461

PLATE

- clutch, steel

10шт.

Transmission serial no. 16260432 and after.

1шт.

3

A155461

PLATE

- clutch, steel

8шт.

Prior to transmission serial no. 16260432.

1шт.

4

A58094

SPRING

- clutch return

6шт.

5

A146670

PISTON

- (C2) and (C3) clutches

2шт.

6

A146683

RING

- sealing, 4-15/32 inch ID

2шт.

Part of Seal Kit, P/N A46286

1шт.

7

A150754

O-RING,4.718" ID x 0.107"

- 4-11/16 inch ID

2шт.

Part of Seal Kit, P/N A46286

1шт.

8

A146682

RING

SEAL - sealing, 8-9/32 inch OD

2шт.

Part of Seal Kit, P/N A46286

1шт.

9

A150753

O-RING,7.84" ID x 0.107"

- 7-7/8 inch OD

2шт.

Part of Seal Kit, P/N A46286

1шт.

10

A150105

CARRIER

- (C2) and (C3) piston

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - square section, 0.301 ID x, 0.066 inch

4шт.

Part of Seal Kit, P/N A46286

1шт.

15

A168199

GEAR, RING

GEAR - ring

1шт.

Transmission serial no. 16260432 and after.

1шт.

15

A63101

GEAR

- ring (Order A179725)

1шт.

Prior to transmission serial no. 16260432.

1шт.

16

A58413

BUTTON

BEARING - planertary ring gear

3шт.

17

A61981

PLATE

- clutch, sintered

5шт.

Transmission serial no. 16260432 and after.

1шт.

17

A61981

PLATE

- clutch, sintered

4шт.

Prior to transmission serial no. 16260432.

1шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- retaining

1шт.

19

A168197

HUB

- (C3) clutch

1шт.

Transmission serial no. 16260432 and after.

1шт.

19

A179388

HUB ASSY.

HUB - (C3) clutch

1шт.

Prior to transmission serial no. 16260432.

1шт.

20

1341410C1

SEAL

RING - oil distributor piston (Replaces A58384)

4шт.

21

80-1856

12 PT SCREW,Flg, 1/2" - 13 x 3.50", Gr 8

SCREW - Ferry head, 1/2 NC x 3-1/2 inch

6шт.

Transmission serial no. 16260432 and after.

1шт.

21

80-1852

12 PT SCREW,Flg, 1/2" - 13 x 3.25", Gr 8

SCREW - Ferry head, 1/2 NC x 3-1/4 inch

6шт.

Prior to transmission serial no. 16260432.

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- hub bolt

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: ref. nos. 6, 7, 8, 9 and 11 on Figures 6-34 and 6-44

1шт.
