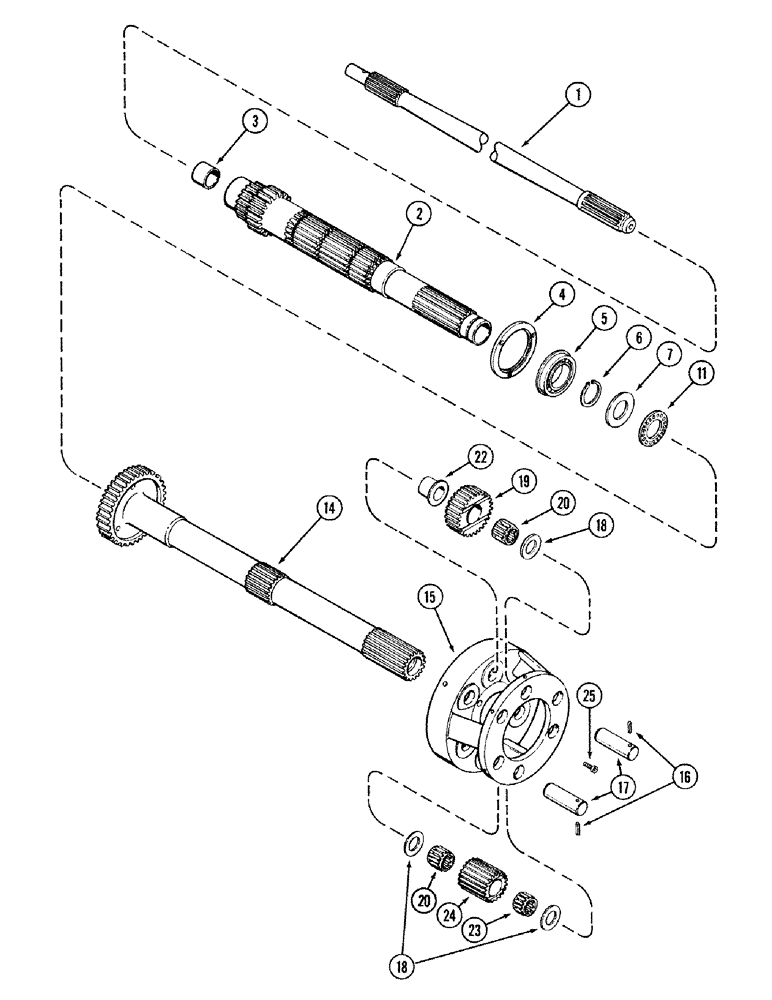

Запчасти Case IH 2394 (6-038) - TRANSMISSION, PLANETARY, 12 SPEED TRANSMISSION, PRIOR TO TRANSMISSION SERIAL NO. 16260432 (06) - POWER TRAIN

1

A152396

SHAFT

- PTO drive, front

1шт.

2

A156865

SHAFT

ASSEMBLY - planetary output, Includes: Ref. 3

1шт.

3

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- input shaft support

1шт.

4

A146603

RETAINER

- carrier bearing

1шт.

5

A63109

BEARING, BALL

BEARING - ball (Includes retaining ring)(Order 141638A1)

1шт.

6

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 1-3/4 x 2-1/2 x 3/32 inch (44 x 64 x 2 MM)

1шт.

11

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING - needle, thrust

1шт.

14

A151828

SHAFT

- planetary, input drive

1шт.

15

A159572

CARRIER

- planetary

1шт.

16

38-31212

PIN,3/16" x 3/4", Coiled

6шт.

17

A63107

PIN

- planet gear

6шт.

18

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

- thrust

9шт.

19

A63105

GEAR

- planet, short

3шт.

20

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gear

6шт.

22

A140877

SPACER,25.65mm ID x 31.88mm OD x 27.9mm L

- short planet gear

3шт.

23

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller, planet gear

3шт.

24

A63108

GEAR

- planet, long

3шт.

25

62-32510

HEX SOC SCREW,1/4" - 28 x 3/8"

SCREW - hex socket, 1/4 NF x 5/8 inch

3шт.
