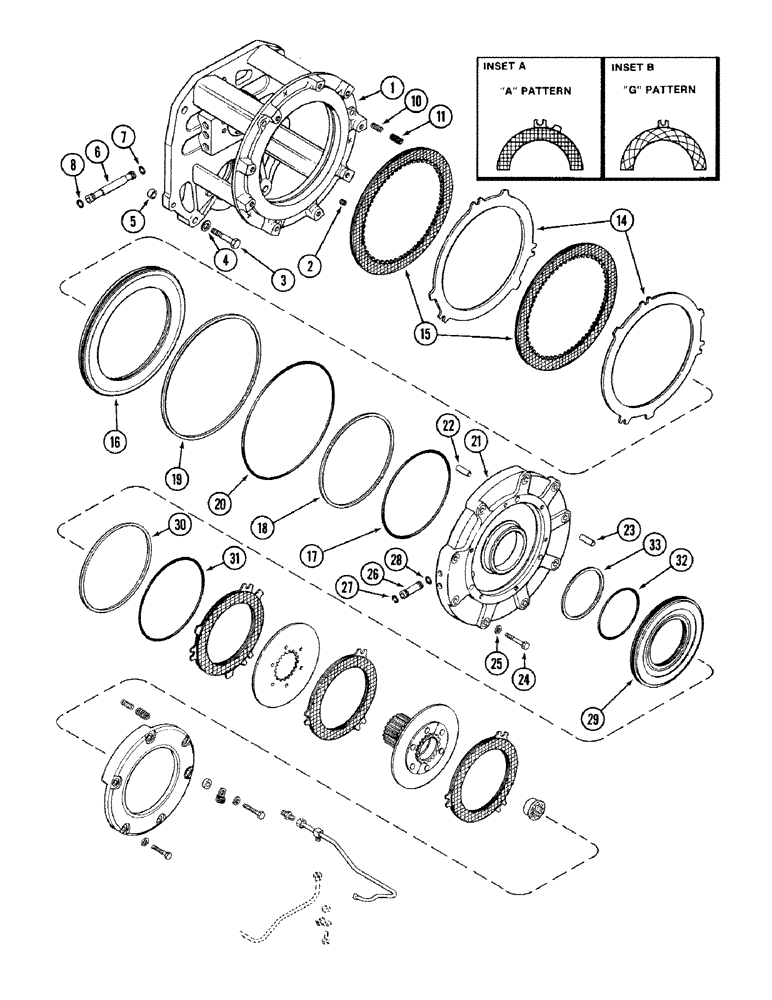

Запчасти Case IH 2394 (6-030) - TRANSMISSION, (C1) AND (C4) CLUTCHES, PRIOR TO TRANSMISSION SERIAL NO. 16260432 (06) - POWER TRAIN

1

A156953

CARRIER

ASSEMBLY - power shift, Includes: Ref. 2

1шт.

2

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

3

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

A50011

SLEEVE

- dowel (Order A188330)

2шт.

6

A152370

TUBE

- oil, (C2) and (C3) clutch

3шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

Part of Seal Kit, P/N A46286

1шт.

8

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

3шт.

10

A142613

SPRING

- return, (C4) clutch

3шт.

11

A62606

SPRING

- return, (C4) clutch

3шт.

14

A58056

PLATE

- steel, (C4) clutch

2шт.

15

1981280C1

PLATE

- friction, (C4) clutch (Replaces A67128)

2шт.

16

A146671

PISTON

- (C4) clutch

1шт.

17

A150752

O-RING,9.206" ID x 0.107" OD

- 9-7/64 ID x 7/64 inch

1шт.

Part of Seal Kit, P/N A46286

1шт.

18

A146681

SEAL

- sealing, 9 ID x 7/64 inch

1шт.

Part of Seal Kit, P/N A46286

1шт.

19

A146680

RING

- sealing, 12-1/2 OD x 7/64, inch

1шт.

Part of Seal Kit, P/N A46286

1шт.

20

A150751

O-RING,12.09" ID x 0.107"

- 12 ID x 7/64 inch

1шт.

Part of Seal Kit, P/N A46286

1шт.

21

A150697

CARRIER

ASSEMBLY - piston (C1) and (C4) clutches, Includes: Ref. 22 and 23

1шт.

22

A65555

PIN

- clutch reaction plate, (C4) 1-1/2 inch

3шт.

23

A75102

PIN,12.45mm OD x 50.8mm L

- clutch reaction plate, (C1) 2 inch

3шт.

24

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

9шт.

25

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened

9шт.

26

A152371

TUBE

- oil, (C1) and (C4) clutch

2шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

Part of Seal Kit, P/N A46286

1шт.

29

A146670

PISTON

- (C1) clutch

1шт.

30

A146682

RING

- sealing, 8-9/32 inch OD

1шт.

Part of Seal Kit, P/N A46286

1шт.

31

A150753

O-RING,7.84" ID x 0.107"

- 7-7/8 inch OD

1шт.

Part of Seal Kit, P/N A46286

1шт.

32

A150754

O-RING,4.718" ID x 0.107"

- 4-11/16 inch ID

1шт.

Part of Seal Kit, P/N A46286

1шт.

33

A146683

RING

- sealing, 4-15/32 inch ID

1шт.

Part of Seal Kit, P/N A46286

1шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Ref. 7, 17, 18, 19, 20, 28, 30, 31, 32 and 33 on Figures 6-30 and 6-44)

1шт.
