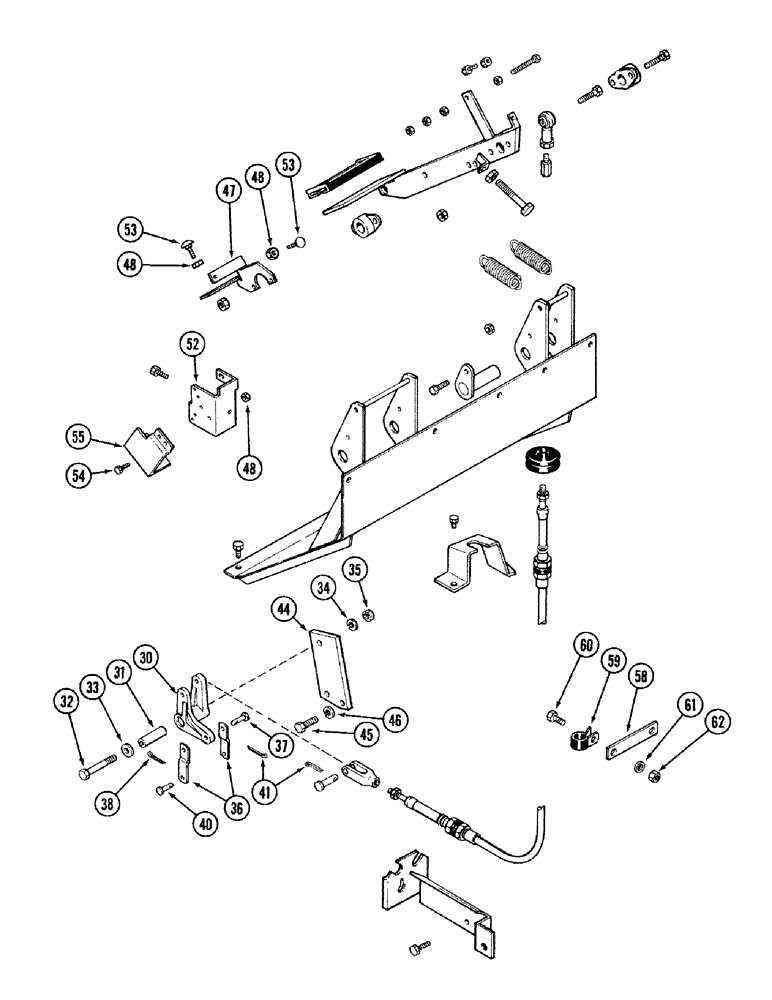

Запчасти Case IH 2394 (6-024) - INCHING PEDAL (CONTINUED) (06) - POWER TRAIN

30

A161553

CRANK LEVER

BELLCRANK - clutch spool

1шт.

31

A161043

SHAFT

- pivot, bellcrank

1шт.

32

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

33

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

34

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

A149991

LINK

-, Serial Range: bellcrank-spool

2шт.

37

427-4077

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 43/64 inch

1шт.

38

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

40

A8823

PIN,6.29mm OD x 26.99mm L

- clevis, 1/4 x 21/32 inch

1шт.

41

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

44

A161824

PLATE

- clutch pedal bellcrank

1шт.

45

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

46

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

47

A181037

BRACKET

- switch actuator, Start Serial: 9944363

1шт.

47

A169838

BRACKET

- switch actuator, Serial Range: -9944363

1шт.

48

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

4шт.

52

A169843

BRACKET

- clutch switch mounting

1шт.

53

A181036

SQUARE BOLT

- switch actuator, Start Serial: 9944363

2шт.

53

A176066

SQUARE BOLT

BOLT - switch actuator, Serial Range: -9944363

2шт.

54

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

55

A169837

COVER

- clutch switch

1шт.

58

A185811

STRAP

- throttle stop (Replaces A164704)

1шт.

59

49768

CLIP

- cable

1шт.

60

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

61

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

62

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
