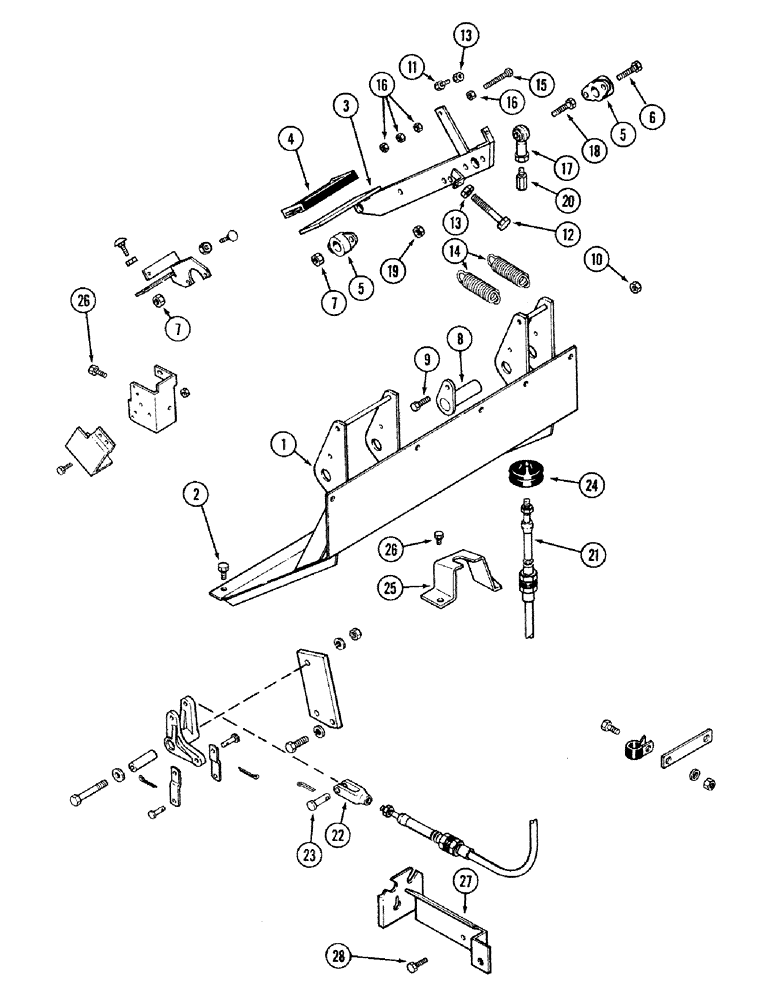

Запчасти Case IH 2394 (6-022) - INCHING PEDAL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A143559
BRACKET
COVER - brake and clutch
1шт.
2
281-44910
SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"
SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch
8шт.
3
A164689
PEDAL
- inching, foot clutch
1шт.
4
F9197
PAD
COVER - pedal, rubber
1шт.
5
A77310
SUPPORT,0.754" ID x 1.375" OD x 0.81"
- pivot, foot pedal
2шт.
6
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- hex, 5/16 NC x 1-1/2 inch
2шт.
7
131-1281
LOCK NUT,Jam, 5/16"-18
NUT - hex, jam, self-locking, 5/16 inch NC
2шт.
8
A60305
SHAFT
- pivot
1шт.
9
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
1шт.
10
425-145
JAM NUT,Jam, 5/16"-18, G5
1шт.
11
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
(Upper stop) Hex, 5/16"-18 x 7/8", G5, Full Thd
1шт.
12
113-116
BOLT,Hex, 5/16" - 18 x 3-1/2", SST
- hex, 5/16 NC x 3-1/2 inch (Lower stop)
1шт.
13
425-145
JAM NUT,Jam, 5/16"-18, G5
2шт.
14
A177378
SPRING
- return
2шт.
15
113-57
BOLT,Hex, 1/4" - 20 x 2", Gr 5, Full Thd
- hex, full thread, 1/4 NC x 2 inch
1шт.
16
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
4шт.
17
A32398
BALL JOINT
LINK - eye, female
1шт.
18
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
1шт.
19
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC
1шт.
20
A185485
FITTING
ADAPTER - 3/8 to 5/16 inch NF (Replaces A161332)
1шт.
21
A161778
CABLE
- clutch control
1шт.
22
A180427
CLEVIS
- cable, 5/16 inch
1шт.
23
427-5094
CLEVIS PIN,7.92mm OD x 23.88mm L
1шт.
24
A141739
BOOT
- protection
1шт.
25
A161336
CAB
BRACKET - cable
1шт.
26
281-44910
SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"
SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch
3шт.
27
A177811
BRACKET
- clutch cable mounting
1шт.
Transmission serial no. 16260155 and after.
1шт.
27
A162867
BRACKET
- clutch cable mounting
1шт.
Prior to transmission serial no. 16260155.
1шт.
28
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
2шт.
