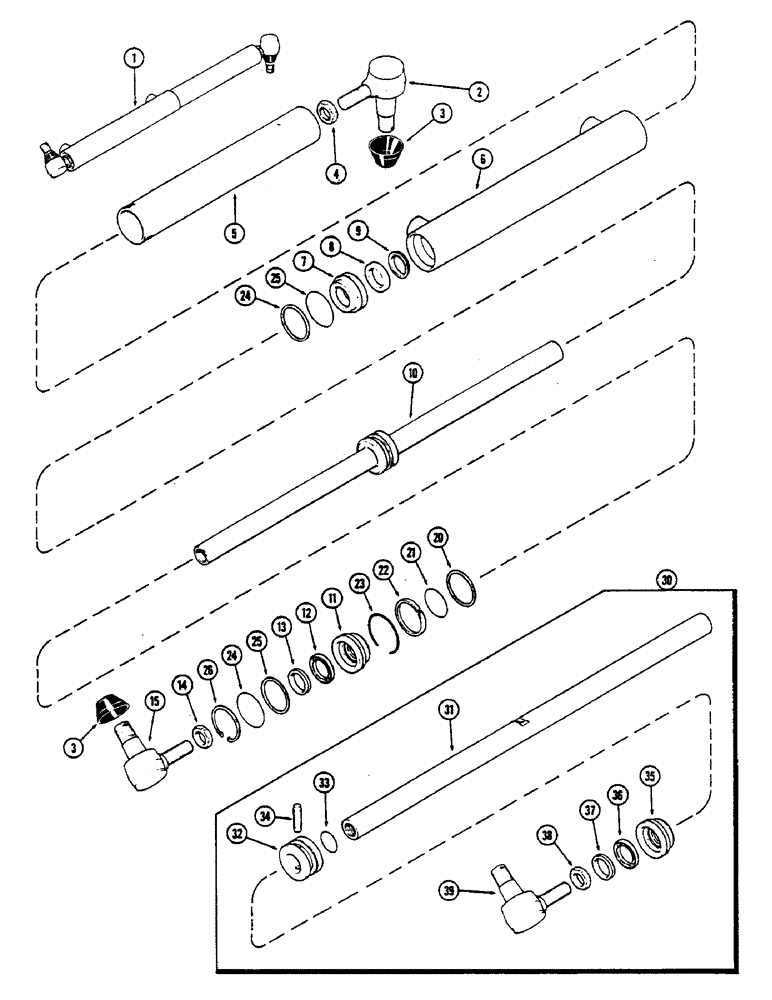

Запчасти Case IH 2390 (5-156) - STEERING CYLINDER (05) - STEERING

1

G102894

CYLINDER

ASSEMBLY - (Replaces G101336), Includes: Ref. 1 - 26

1шт.

2

L59042

BALL JOINT

END - ball joint, stationary, Includes: Ref. 3

1шт.

3

D72832

COVER

- dust

1шт.

4

A31094

JAM NUT

- jam, 7/8" NF hex

1шт.

5

G101395

TUBE,2.38" OD x 14.31" L

- plain

1шт.

6

G101800

TUBE,2.321" ID x 2.388" OD x 17.1" L

- with ports

1шт.

7

G101400

GLAND

- tube

1шт.

8

G101401

SEAT

SEAL - rod

1шт.

Part of Repair Kit, P/N G101805

1шт.

9

D95141

WIPER SEAL

WIPER - rod

1шт.

Part of Repair Kit, P/N G101805

1шт.

G102895

ROD

ASSEMBLY - piston (Replaces G101397) (See Ref 30), Includes: Ref. 10 - 15

1шт.

10

G102272

ROD

- (Includes piston) (Replaces G101398 and G101399)

1шт.

11

G101400

GLAND

- tube

1шт.

12

G101401

SEAT

SEAL - rod

1шт.

13

D95141

WIPER SEAL

WIPER - rod

1шт.

14

A31094

JAM NUT

- jam, 7/8" NF hex

1шт.

15

L59042

BALL JOINT

END - ball joint, piston rod

1шт.

20

A61430

SEALING RING

RING - seal, piston 2-1/32 x 2-9/64 x 1/8" (51.56 x 65.02 x 3.05 MM)

1шт.

Part of Repair Kit, P/N G101805

1шт.

21

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

- piston, 1-11/16 x 1-7/8 x 3/32" (42.93 x 47.75 x 2.29 MM)

1шт.

Part of Repair Kit, P/N G101805

1шт.

22

G101837

RING

- wear, piston

1шт.

23

G101804

RING

- gland retainer

1шт.

24

G102152

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

- gland, 2 x 2-1/2 x 7/64" (50.8 x 63.5 x 2.78 MM)

2шт.

Part of Repair Kit, P/N G101805

1шт.

25

G101803

RING

- backup

2шт.

Part of Repair Kit, P/N G101805

1шт.

26

T16276

SNAP RING,2.25", Int, #225

Ring, Snap, , gland 2.25", Int, #225

1шт.

30

G101397

ROD ASSY.

ROD ASSEMBLY - early production (Order G102895), Includes: Ref. 31 - 39

1шт.

31

G101398

ROD

- early production (Order G102272)

1шт.

32

G101399

PISTON

- early production only

1шт.

33

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

- 1-1/4 x 1-7/16 x 3/32" (31.75 x 36.58 x 2.29 MM)

1шт.

34

G100258

GROOVED PIN,3/8" x 1 3/4", Type F, Hardened

Pin, Grooved, , early production only 3/8" x 1 3/4", Type F, Hardened

1шт.

Part of Repair Kit, P/N G101805

1шт.

35

G101400

GLAND

- tube

1шт.

36

G101401

SEAT

SEAL - rod

1шт.

Part of Repair Kit, P/N G101805

1шт.

37

D95141

WIPER SEAL

WIPER - rod

1шт.

Part of Repair Kit, P/N G101805

1шт.

38

A31094

JAM NUT

- jam, 7/8" NF hex

1шт.

39

L59042

BALL JOINT

END - ball joint piston rod

1шт.

G101805

KIT

- repair, Includes: ref. nos. 8, 9, 20, 21, 24, 25, 33, 34, 36, 37

1шт.
