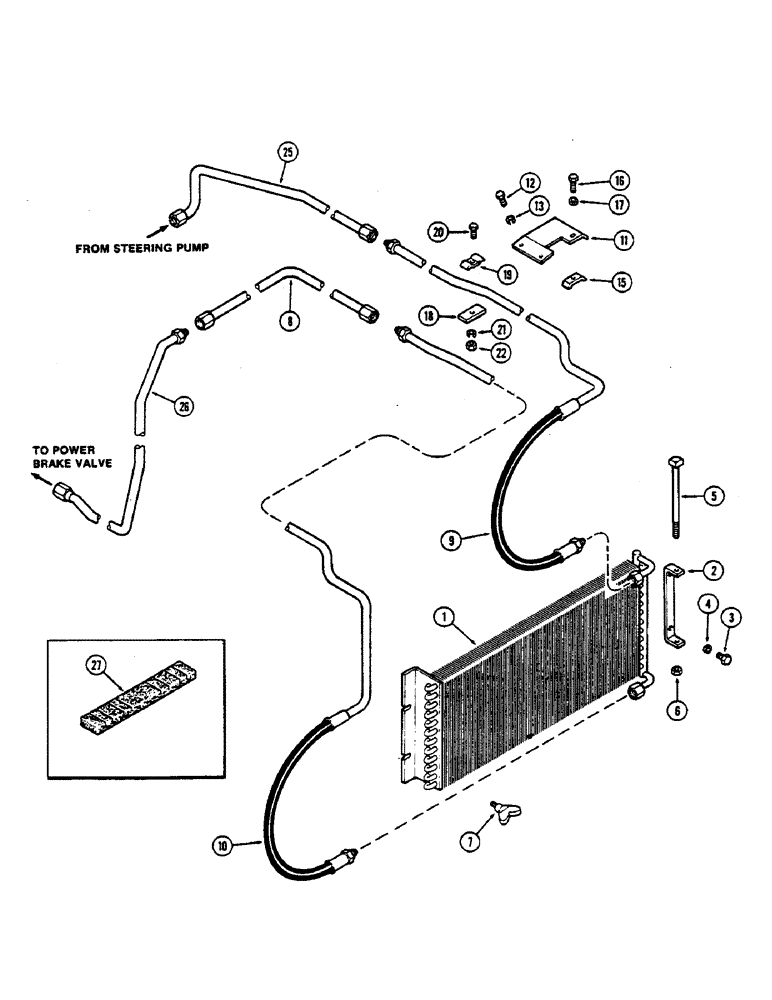

Запчасти Case IH 2390 (5-150) - OIL COOLER, PRIOR TO P.I.N. 8835520 (05) - STEERING

1

A147352

COOLER

- oil, transmission (Order A160190 Figure 5-152)

1шт.

2

A141489

SUPPORT

BRACKET - oil cooler pivot

1шт.

3

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

5

17-4136

BOLT,Sq Hd, 1/4" - 20 x 8 1/2", Gr 2

- 1/4 x 8-1/2" square head (Grade 2)

1шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

7

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thumb 5/16 x 5/8"

2шт.

8

A147900

TUBE

- oil cooler outlet, center

1шт.

9

A147898

TUBE

- oil cooler, inlet (Order A160248, A36162 and 218-795 Figure 5-152)

1шт.

10

A147899

TUBE

- oil cooler, outlet (Order A160249, A36162 and 218-775 Figure 5-152)

1шт.

11

A145791

COVER

- cooler tubes

1шт.

12

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

A60224

CLAMP

- tube

1шт.

16

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

A60864

PLATE

- tube clamp back up

1шт.

19

A63323

CLAMP

- tube

4шт.

20

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

A147897

TUBE

- oil cooler to steering pump

1шт.

26

A147699

TUBE

- oil cooler return, rear

1шт.

27

A149298

SEAL

- air conditioner and oil cooler hoses

1шт.
