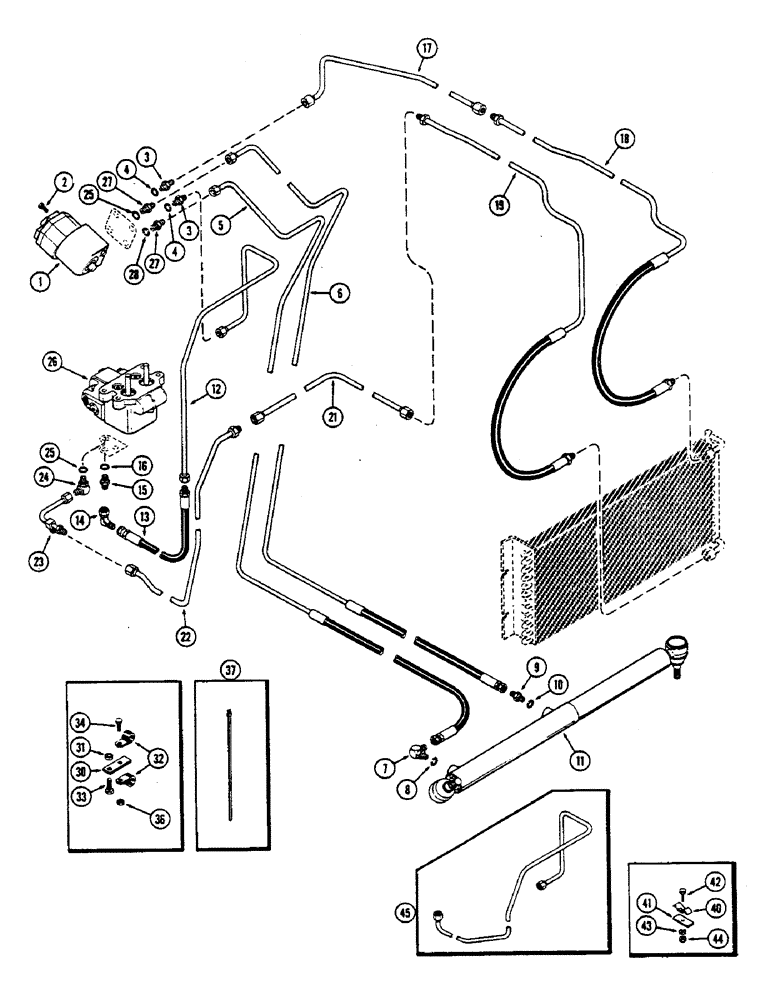

Запчасти Case IH 2390 (5-148) - HYDROSTATIC STEERING CIRCUITRY (05) - STEERING

1

REF

INSTRUCTION

PUMP - hydrostatic steering (See Figure 5-154)

1шт.

2

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2" tube, straight (Inlet and outlet ports), Incl. Ref 4

2шт.

5

A160897

HOSE

- steering, RH (For 104" wheel base)

1шт.

5

A161441

HOSE

- steering, RH (For 118" wheel base)

1шт.

6

A160898

HOSE

- steering, LH (For 104" wheel base)

1шт.

6

A161442

HOSE

- steering, LH (For 118" wheel base)

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable, 1/2" tube, Includes: Ref. 8 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2" tube, straight, Incl. Ref 10

1шт.

11

REF

INSTRUCTION

CYLINDER - steering (See Figure 5-156)

1шт.

12

A160363

PIPE

TUBE - brake to pump (Replaces A149312)

1шт.

13

A140436

HOSE,0.50" ID x 24.00", SAE 100R1

- Brake valve (Replaces A149312) 0.50" ID x 24.00", SAE 100R1

1шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 1/2" tube 3/4"-16

1шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - 1/2" tube, straight, Incl. Ref 16

1шт.

17

A147897

TUBE

- oil cooler to steering pump

1шт.

18

REF

INSTRUCTION

TUBE - oil cooler inlet (See Figure 5-152)

1шт.

19

REF

INSTRUCTION

TUBE - oil cooler outlet (See Figure 5-152)

1шт.

21

A147900

TUBE

- oil cooler outlet, center

1шт.

22

A147699

TUBE

- oil cooler outlet, to brake valve

1шт.

23

A147196

MANIFOLD

- brake valve sump

1шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, 1/2" tube, Includes: Ref. 25 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

26

REF

INSTRUCTION

VALVE - power brake (See Figure 7-240)

1шт.

27

A149481

CONNECTOR, ELEC

CONNECTOR - restricting (RH and LH turn ports), Includes: Ref. 28

2шт.

30

A67290

BRACKET

- steering hose clamps

1шт.

31

A67289

BUSHING

SPACER - bracket to oil pan

1шт.

32

NLS

NO LONGER SERVICED

- tube

2шт.

33

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

34

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

36

131-86

LOCK NUT,1/4"-20

NUT - 1/4" NC hex lock

1шт.

37

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon tie

1шт.

40

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

41

A60864

PLATE

- clamp mounting

2шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

43

92-5

LOCK WASHER,5/16"

2шт.

44

9635082

NUT,5/16" - 18, Gr 5

2шт.

45

A149312

TUBE

- brake valve to pump (Order Ref. 12, 13 and 14)

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.29 MM)

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32" x 3/32" (12.7 x 16.67 x 2.29 MM)

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32" (12.7 x 16.67 x 2.29 MM)

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.29 MM)

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.29 MM)

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.67 x 2.29 MM)

1шт.
