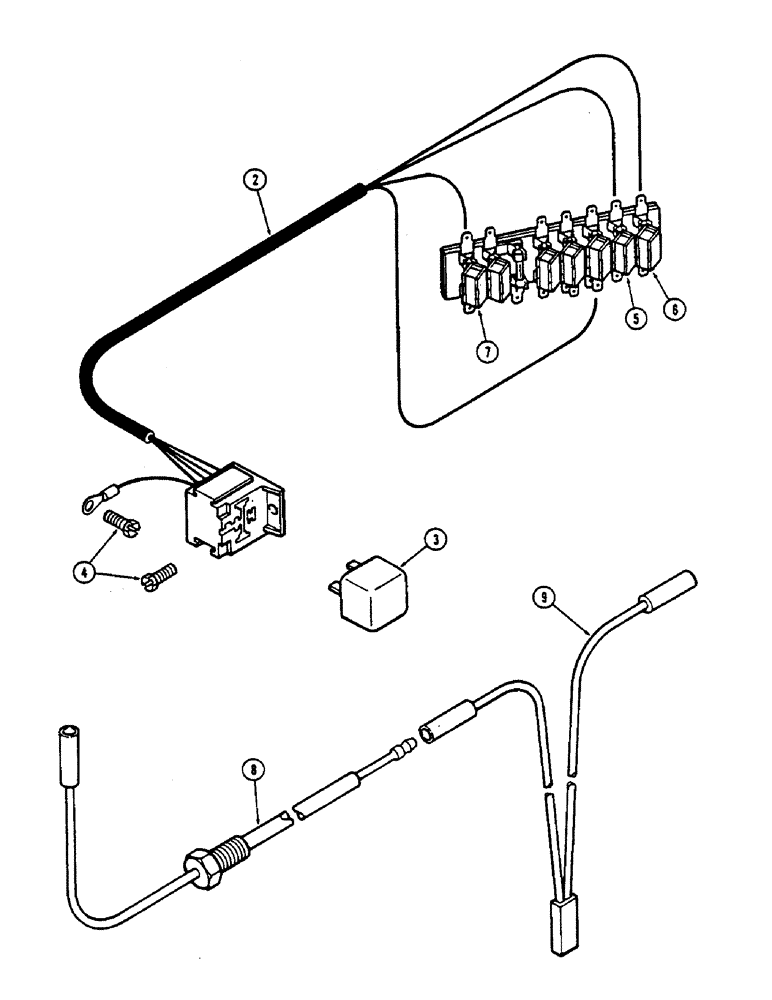

Запчасти Case IH 2390 (4-136) - FLOOD LAMP ELECTRICAL POWER KIT, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

A161282

KIT

- electrical power (Required with lamp attachment), Includes: Ref. 2 - 9

1шт.

2

A149203

HARNESS

- wire

1шт.

3

A147176

RELAY

- harness

1шт.

4

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10 x 1/2" hex slotted

2шт.

5

A141611

BREAKER

- circuit, 15 amperes (If equipped)

1шт.

5

223-15

FUSE,15 Amp, Type 3AG

- 15 ampere (If equipped)

1шт.

6

A141612

BREAKER

- circuit, 20 ampere (If equipped)

1шт.

6

223-27

FUSE,20 Amp, Type 3AG

- 20 ampere (If equipped)

1шт.

7

A141614

BREAKER

- circuit, 30 ampere (If equipped)

1шт.

7

223-31

FUSE,10 Amp, Type 3AG

- 30 ampere (If equipped)

1шт.

8

A147346

HARNESS

- lamp

2шт.

9

A147345

HARNESS

- lower

1шт.
