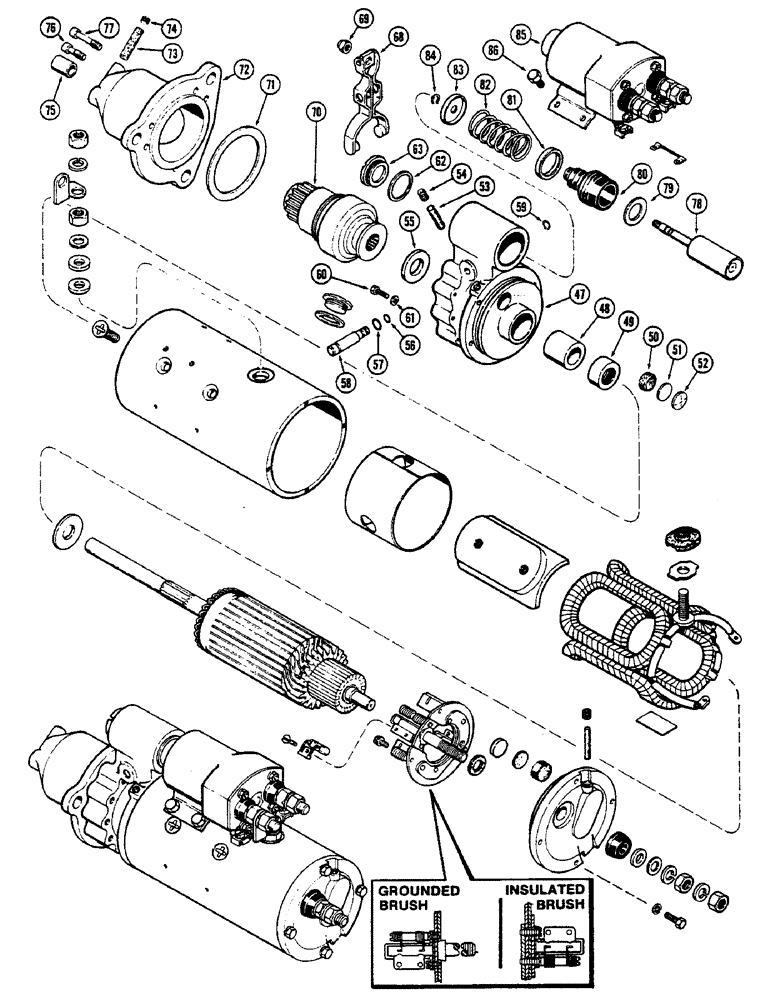

Запчасти Case IH 2390 (4-120) - A75864 STARTER ASSEMBLY, PRIOR TO P.I.N. 9907800 (04) - ELECTRICAL SYSTEMS

A75864

STARTING MOTOR

STARTER ASSEMBLY - (Continued from Figure 4-118), Includes: Ref. 47 - 86 and 1 - 42 on Figure 4-118

1шт.

47

A43367

HOUSING

ASSEMBLY - shift lever, Includes: Ref. 48 - 55

1шт.

48

A47848

BUSHING

- shift lever housing (Replaces R21580)

1шт.

49

R21582

OIL SEAL

- oil

1шт.

50

A41923

PLUG

- oil reservoir

1шт.

51

A41973

GASKET

- plug

1шт.

52

41-57

PLUG,Exp, 1 1/32"

- expansion, 1-1/32" (26.19 MM) diameter

1шт.

53

R15023

WICK

- oil

1шт.

54

221-1041

PLUG

- 1/8" PT slotted headless

1шт.

55

R15145

DISC

WASHER - brake

1шт.

56

A47259

O-RING,0.244" ID x 0.391" OD

- stud, 15/64 x 3/8 x 1/16" (5.95 x 9.52 x 1.59 MM) (Replaces R21574)

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

- stud, 23/64 x 1/2 x 1/16" (9.13 x 12.7 x 1.59 MM)

1шт.

58

A42199

PIN

STUD - shift lever pivot

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud retaining #37, Ext

1шт.

60

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

61

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

62

A41924

GASKET

- plug

1шт.

63

R21587

PLUG

- shift lever housing

1шт.

68

D32547

LEVER

ASSEMBLY - shifter

1шт.

69

131-31

LOCK NUT,5/16"-24, G8

NUT - lock, 5/16" NF hex

1шт.

70

A47073

DRIVE

ASSEMBLY - (Replaces A42397) (Order A47523)

1шт.

71

R21562

GASKET

- drive end housing

1шт.

72

A44168

HOUSING

ASSEMBLY - drive end, Includes: Ref. 73 - 75

1шт.

73

R15023

WICK

- oil

1шт.

74

221-1041

PLUG

- 1/8" PT slotted headless

1шт.

75

A47257

BUSHING

- drive end (Replaces A40893)

1шт.

76

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end housing (Short)

1шт.

77

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end housing (Long)

5шт.

78

A42309

PLUNGER

- solenoid core

1шт.

79

A41922

WASHER

SEAT - cover

1шт.

80

A42308

BOOT

COVER - plunger

1шт.

81

A43380

BACK-UP RING

SEAT - spring, solenoid end

1шт.

82

A41242

SPRING

- plunger return

1шт.

83

A43419

SEAT

- spring, lever end

1шт.

84

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

85

REF

INSTRUCTION

SOLENOID ASSEMBLY - (See Figure 4-122)

1шт.

86

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.
