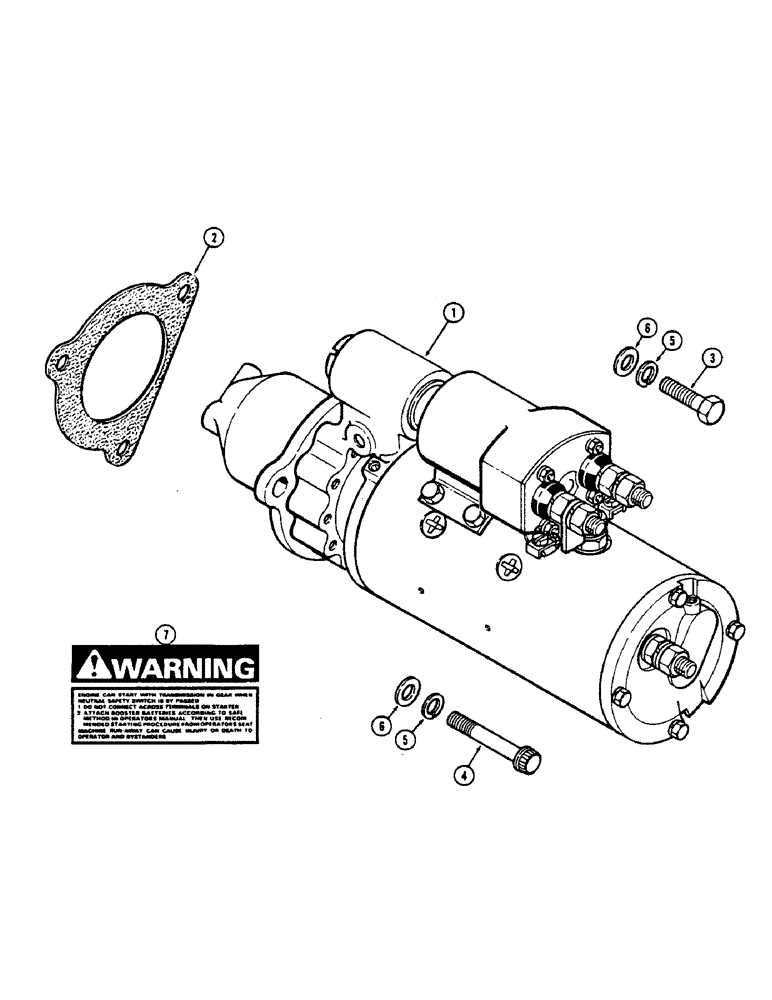

Запчасти Case IH 2390 (4-112) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - (See Figure 4-114)

1шт.

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

2

A27933

GASKET

GASKET - starting motor mounting

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - 1/2 x 1-3/4" NC hex Polylock (Grade 5)

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" NC Ferry head

1шт.

5

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

3шт.

6

L30674

WASHER

WASHER -17/32 x 1 x 1/8"

3шт.

7

321-3709

DECAL

DECAL - warning, starter

1шт.
