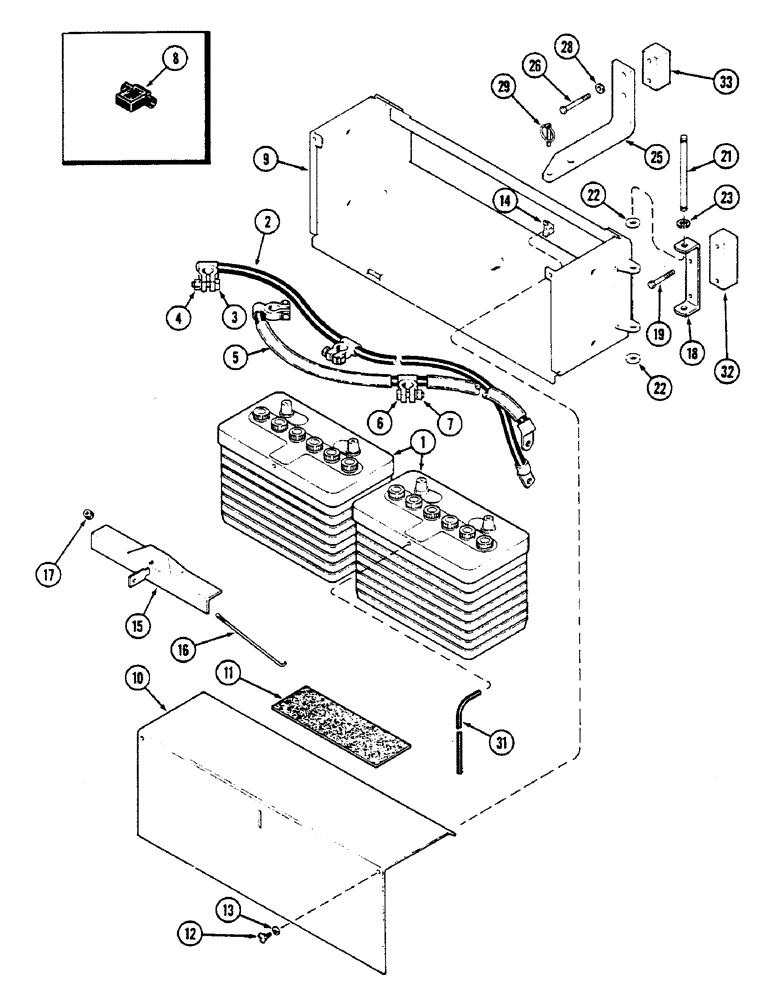

Запчасти Case IH 2390 (4-110) - BATTERY, CABLES, BATTERY BOX (04) - ELECTRICAL SYSTEMS

1

A162334

DRY BATTERY

- 12 volt (P.I.N. 9907663 and after) (Order A38411)

2шт.

1

A145205

WET BATTERY

- 12 volt (Prior to P.I.N. 9907663)

2шт.

2

A162285

CABLE

- battery negative (Replaces A149182), Includes: Ref. 3 and 4

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" NC square head (Grade 2)

2шт.

4

129-516

NUT

- 5/16" NC hex

2шт.

5

A162287

CABLE ASSY.

CABLE - battery positive (Replaces A149179), Includes: Ref. 6 and 7

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" NC square head (Grade 2)

2шт.

7

129-516

NUT

- 5/16" NC hex

2шт.

8

A139372

CAP

- battery terminal protector

2шт.

9

A161390

BOX

- battery (Replaces A167907)

1шт.

10

A161331

COVER

- battery box (Replaces A147912)

1шт.

11

A62469

COVER

TREAD - non slip cover

1шт.

12

A141485

THUMB SCREW,5/16" - 18 x 5/8"

THUMBSCREW - 5/16 x 5/8"

2шт.

13

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

14

131-137

SPRING NUT,Ret, 5/16"-18

Tinnerman Ret, 5/16"-18

2шт.

15

A161329

CLAMP

- battery hold down (Replaces A147078)

1шт.

16

A147915

BOLT

- hook, battery hold down

3шт.

17

131-923

NUT,Flg, 1/4"-20.G5

- 1/4" NC hex flange type

3шт.

18

A147080

SUPPORT

- hinge

1шт.

19

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

21

A147913

PIN

- hinge

1шт.

22

A39519

WASHER

- hinge pin, nylon

2шт.

23

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

25

A160486

BRACKET

- battery support (Replaces A147914)

1шт.

26

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

2шт.

28

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

2шт.

29

A30338

PIN

- klik, battery box retaining

1шт.

31

A149640

TUBE

- battery vent (Prior to P.I.N. 9904348)

1шт.

32

A147916

BUSHING

SPACER - battery box, front

1шт.

32

A147917

BUSHING

SPACER - battery box, rear

1шт.

321-2996

DECAL

- caution, battery acid (Not shown, see Figure 9-352)

1шт.
