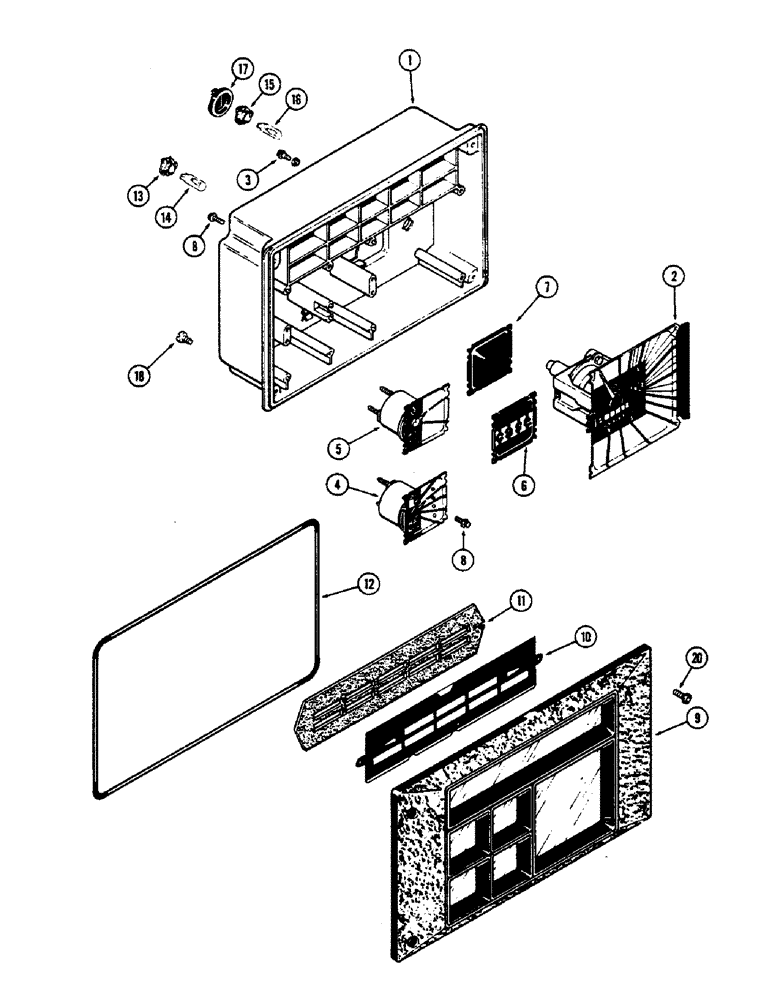

Запчасти Case IH 2390 (4-100) - INSTRUMENT CLUSTER, PRIOR TO P.I.N. 8844717 (04) - ELECTRICAL SYSTEMS

1

D71335

CASE ASSY.

CASE ASSEMBLY - instrument (Includes printed circuit)

1шт.

Ref #1 - Has H422774 Circuit Board

1шт.

2

A47114

ELECTRICAL GAUGE

TACHOMETER

1шт.

3

A47122

BOLT

ASSEMBLY - tachometer

2шт.

4

D71338

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

5

A45011

ELECTRICAL GAUGE

GAUGE - engine water temperature

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - with Case logo (Order A45010)

1шт.

7

A45010

COVER

- blank, cluster opening

1шт.

8

A45093

SCREW,Hex Slotted, 12.70"

- #6 x 1/2" hex. washer head self tapping

12шт.

9

A45007

LENS

LENS - bezel, instrument

1шт.

10

A45008

STRIP

- identification, cluster lamps

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

- identification strip, filter

1шт.

12

D71342

GASKET,3.05mm Thk

-, Serial Range: case-lens

1шт.

13

A47125

PEDESTAL

SOCKET - lamp (Green)

3шт.

14

W10478

LAMP

- gauge (#194)

3шт.

15

A47123

SOCKET/RECEPTACLE

SOCKET - lamp (Blue)

9шт.

16

D71346

TAIL LAMP,12V

LAMP - warning and turn signal (#168)

9шт.

17

D71344

COVER

- lamp socket

3шт.

20

182-572

SCREW - #10-32 x 5/8" pan head

4шт.
