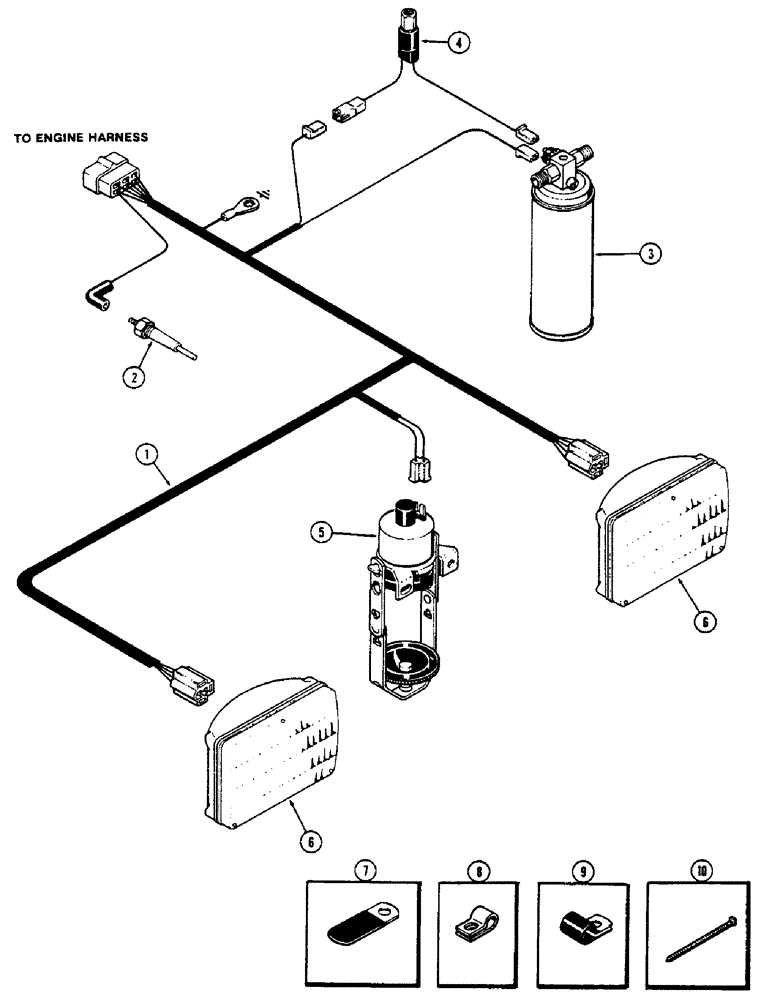

Запчасти Case IH 2390 (4-090) - FORWARD COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

1

A147719

HARNESS

- forward components

1шт.

2

A145513

SENSOR

PROBE - coolant level sensing (See Figure 2-02)

1шт.

3

A76312

RECEIVER-DRYER

RECEIVER DRIER - air conditioning (See Figure 9-412)

1шт.

4

A65779

SWITCH

- air conditioning high pressure cut out (See Figure 9-412)

1шт.

5

A143381

SOLENOID

- ether injector (See Figure 2-16)

1шт.

6

A139458

LAMP

- head (See Figure 4-134)

2шт.

7

A37179

CLIP

- wire

1шт.

8

A7922

CLIP

- wire

1шт.

9

49852

PTO SHAFT

CLIP - wire

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, harness

2шт.
