(4-088) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER

Запчасти Case IH 2390 (4-088) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

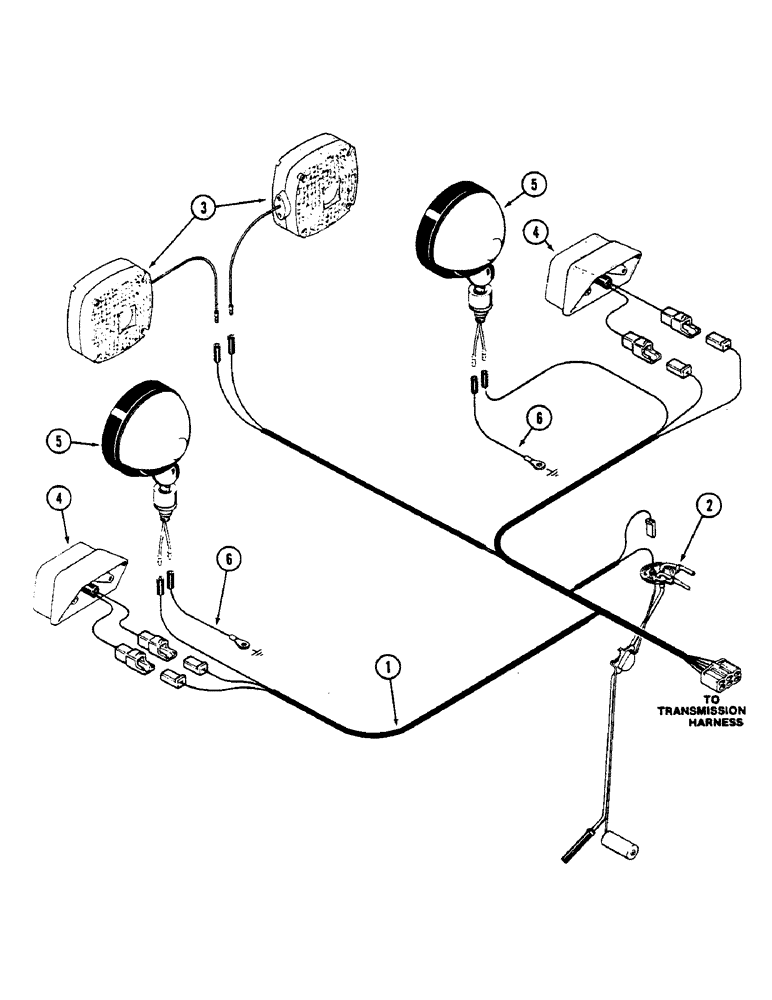

Схема запчастей Case IH 2390 - (4-088) - REAR LIGHT HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS
4
3
6
5
1
2
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A160587

HARNESS

- rear light

1шт.

2

A161769

TRANSMITTER

SENDER - fuel level (See Figure 3-66)

1шт.

3

A44201

LIGHT ASSY.

LAMP - flasher (See Figure 4-134)

2шт.

4

A143925

LAMP

- tail (See Figure 4-134)

2шт.

5

A145495

LAMP

- rear flood (See Figure 4-138)

3шт.

6

A147343

ELECTRICAL WIRE

WIRE - rear flood ground

3шт.
