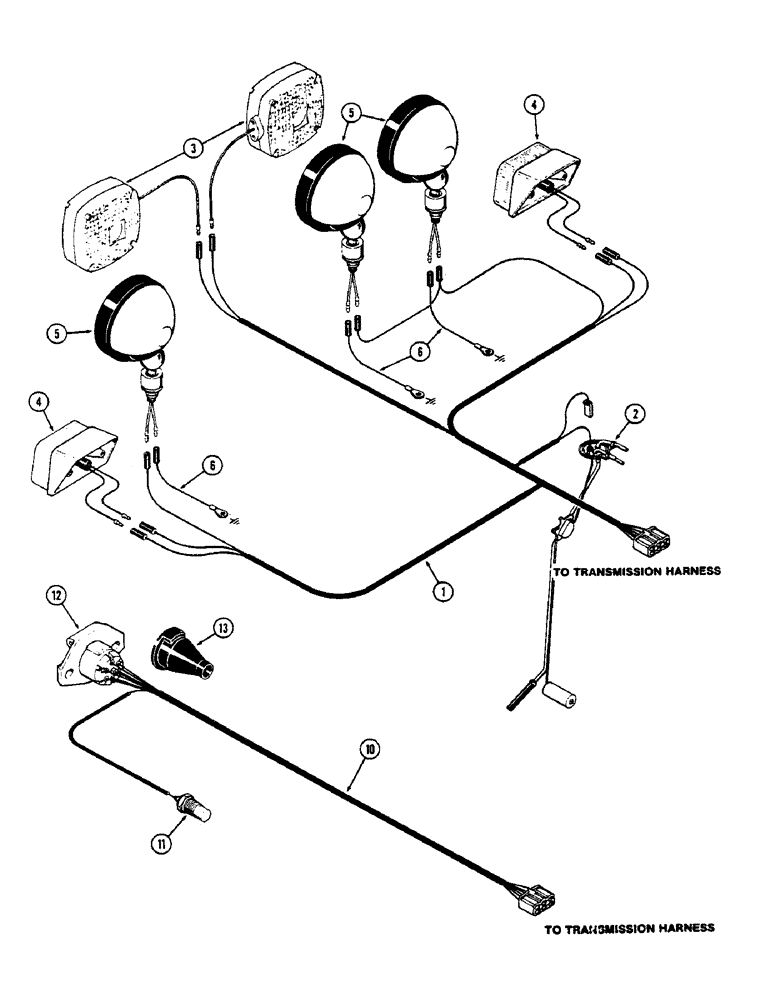

Запчасти Case IH 2390 (4-086) - REAR LIGHT HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

1

A145614

HARNESS

- rear light

1шт.

2

REF

INSTRUCTION

SENDER - fuel level (See Figure 3-66)

1шт.

3

A44201

LIGHT ASSY.

LAMP - flasher (See Figure 4-134)

2шт.

4

A143925

LAMP

- tail (See Figure 4-134)

2шт.

5

A145495

LAMP

- rear flood (See Figure 4-136)

3шт.

6

A147343

ELECTRICAL WIRE

WIRE - rear flood ground

3шт.

10

A143370

HARNESS

- auxiliary outlet

1шт.

11

A154283

SWITCH

- transmission temperature (See Figure 6-224), auxiliary outlet harness

1шт.

12

A145795

CONNECTOR, ELEC

CONNECTOR - 7 point auxiliary outlet (See Figure 4-106), harness

1шт.

13

A145796

COVER

- connector, rubber, auxiliary outlet harness

1шт.
