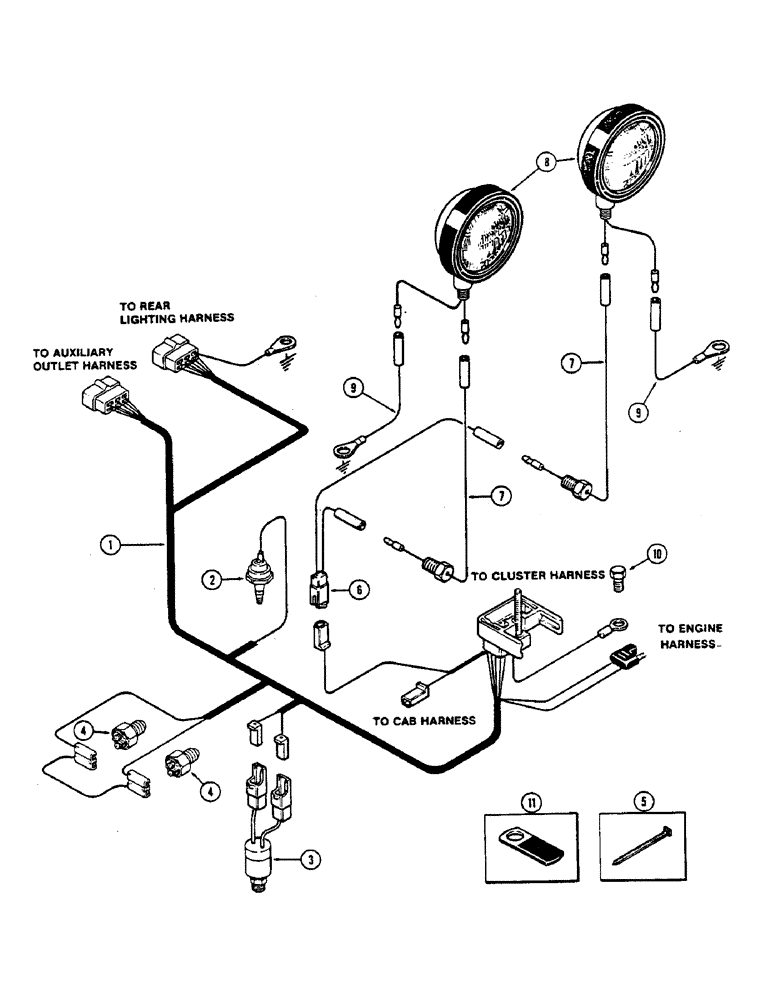

Запчасти Case IH 2390 (4-082) - TRANSMISSION HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

1

A143367

HARNESS

- transmission

1шт.

2

A66737

SWITCH, PRESSURE

SWITCH - transmission filter pressure (See Figure 8-252 and 8-254)

1шт.

3

A162422

SWITCH

- transmission oil pressure (See Figure 8-246)

1шт.

4

A160237

SWITCH

- neutral start (See Figure 6-178)

2шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, harness

2шт.

6

A147345

HARNESS

- front flood lamps

1шт.

7

A147346

HARNESS

WIRE - front flood lamps

2шт.

8

A165192

LAMP

- front flood (See Figure 4-140)

2шт.

9

A147344

ELECTRICAL WIRE

WIRE - front flood ground

2шт.

10

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

11

A38066

CLIP

- wire to PTO housing

1шт.
