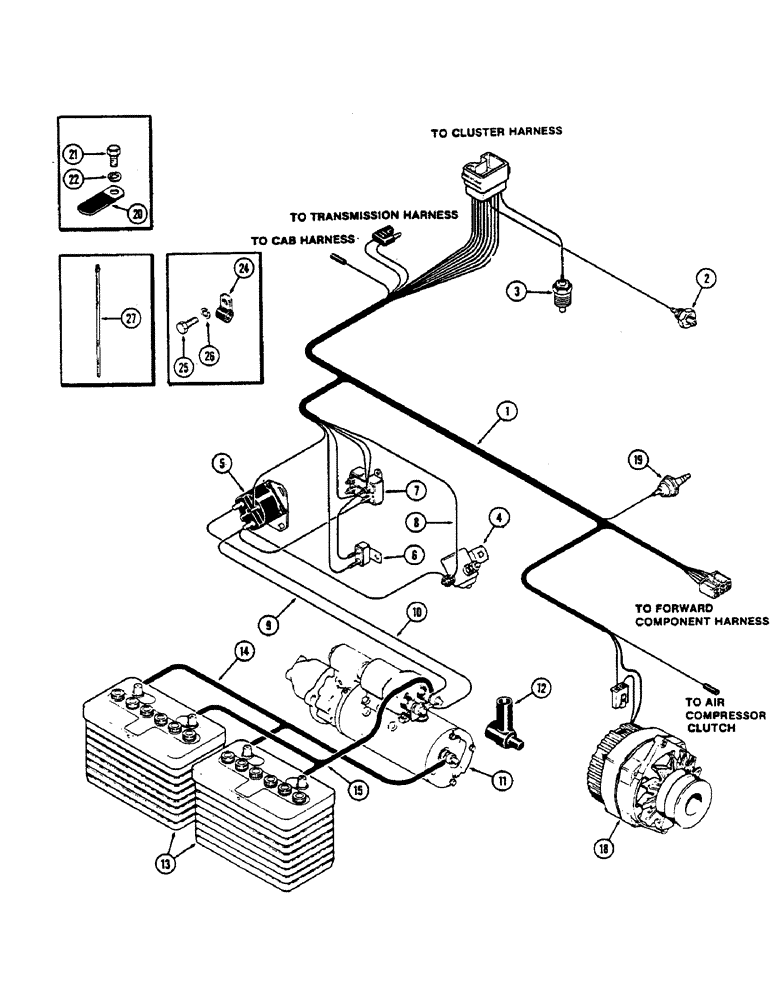

Запчасти Case IH 2390 (4-078) - ENGINE HARNESS, PRIOR TO P.I.N. 8841101 (04) - ELECTRICAL SYSTEMS

1

A160460

HARNESS

- engine (Replaces A147718)

1шт.

2

A137280

SWITCH

- vacuum, air cleaner restriction (Order 1 each of A154782 switch, A161048 wire, 221-1365 and 221-1401 elbows)

1шт.

3

D65446

SENDER UNIT

SENDER - engine water temperature

1шт.

4

A143500

SOLENOID SWITCH

SOLENOID - cab electrical

1шт.

5

A39079

SOLENOID

- ignition (See Figure 4-108)

1шт.

6

A137775

BREAKER

- circuit, 20 ampere (See Figure 4-108)

1шт.

7

A147004

BREAKER

- circuit, 100 ampere (See Figure 4-108)

1шт.

8

A160443

HARNESS

WIRE - cab solenoid, purple 6" (152.4 MM) long

1шт.

9

A147210

ELECTRICAL WIRE

WIRE - starter to solenoid (Battery terminal)

1шт.

10

A147209

ELECTRICAL WIRE

WIRE - starter to solenoid (Switch terminal)

1шт.

11

REF

INSTRUCTION

STARTER - (See Figure 4-114)

1шт.

12

A153796

BOLT

COVER - starter terminal insulator

1шт.

13

REF

INSTRUCTION

BATTERY - 12 volt low maintenance (See Figure 4-110)

2шт.

14

A149182

CABLE

- battery, negative (See Figure 4-110)

1шт.

15

A149179

CABLE

- battery, positive (Order A162287) (See Figure 4-110)

1шт.

18

REF

INSTRUCTION

ALTERNATOR - (See Figure 4-124)

1шт.

19

A66737

SWITCH, PRESSURE

SWITCH - engine oil pressure

1шт.

20

A37179

CLIP

- wire, alternator, Serial Range: wires-engine

1шт.

21

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

24

49852

PTO SHAFT

CLIP - wire, harness to front end casting

1шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon

4шт.
