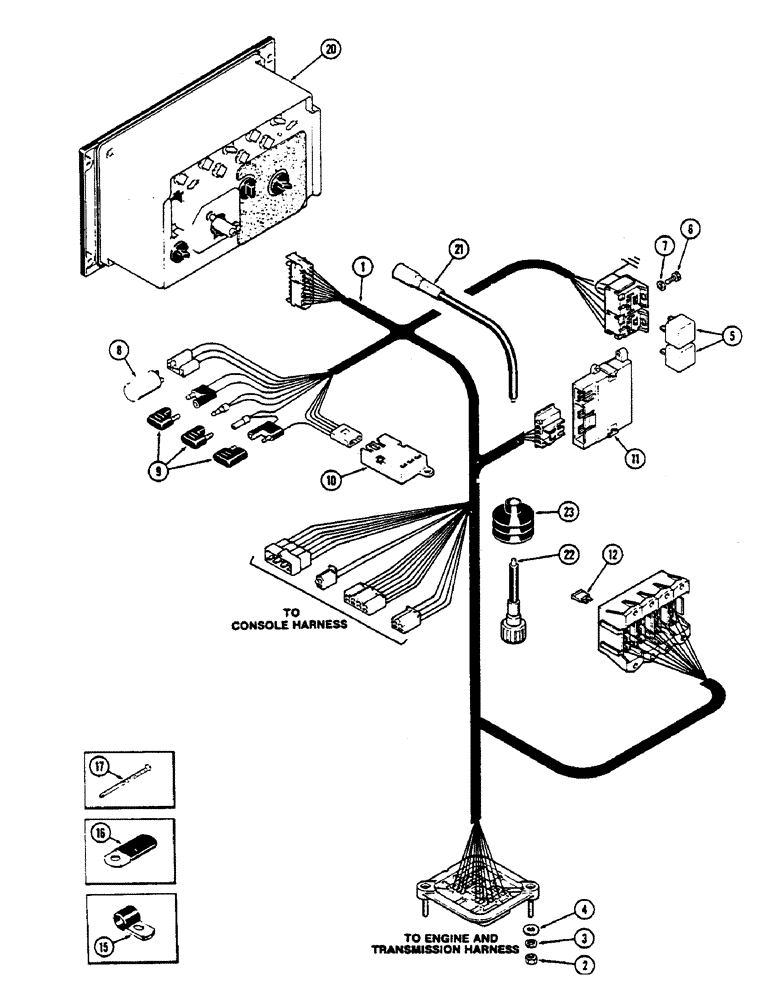

Запчасти Case IH 2390 (4-074) - CLUSTER HARNESS, P.I.N. 8841101 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A160561

HARNESS

ASSEMBLY - wire (See Figure 4-076)

1шт.

Ref #1 - Harness has (31) 739144C1 Male Clips, (31) 879558R1 Female Clips and (2) 239807R1 Wide Male Clips

1шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

5

A147176

RELAY

- lamp

2шт.

6

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

- #10-24 x 3/4" Phillips pan head

2шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

8

A160116

RELAY

- time delay

1шт.

9

A147976

DIODE

- lamp check

3шт.

10

A162294

CONNECTOR, ELEC

MODULE - low coolant indicator (Replaces A147382) (See Figure 4-104)

1шт.

11

A154256

CONNECTOR, ELEC

MODULE - pyrometer (See Figure 4-076)

1шт.

12

REF

INSTRUCTION

FUSE - blade-type (See Figure 4-076)

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness

1шт.

16

A37179

CLIP

- harness

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon

1шт.

20

REF

INSTRUCTION

CLUSTER ASSEMBLY - instrument (See Figure 4-102)

1шт.

21

A147207

CABLE

ASSEMBLY - tachometer drive, Includes: Ref. 22

1шт.

22

A24523

KIT

- inner cable

1шт.

23

A145931

BELLOWS

COVER - cable seal

1шт.
